1.3 inch tft ips lcd display resolution 240*240 IPS high brightness SPI interface tft lcd module Featured Image
  • 1.3 inch tft ips lcd display resolution 240*240 IPS high brightness SPI interface tft lcd module

1.3 inch tft ips lcd display resolution 240*240 IPS high brightness SPI interface tft lcd module

Short Description:

Quick DetailsType:  TFT LCD, TFTDisplay Size:  1.3 inchSupplier Type:  ManufacturerPlace of Origin:  Guangdong, ChinaBrand Name:  Size:  1.3Display mode:  Normally White,TransmissiveViewing Direction:  ALLLuminance:  300 (Typ.)Interface:  MCUDriving IC:  ST7789VNumber of dots:  240*240LCM dimension:  26.17(H) *29.22(V) * 1.45Active area:  23.4(H)*23.4(V)1.3 inch tft ips lcd display resolution 240*240 IPS high brightness lcd SPI interface…


Download as PDF

Product Detail

Product Tags

Quick Details

Type:  TFT LCD, TFTDisplay Size:  1.3 inchSupplier Type:  ManufacturerPlace of Origin:  Guangdong, ChinaBrand Name:  Size:  1.3Display mode:  Normally White,TransmissiveViewing Direction:  ALLLuminance:  300 (Typ.)Interface:  MCUDriving IC:  ST7789VNumber of dots:  240*240LCM dimension:  26.17(H) *29.22(V) * 1.45Active area:  23.4(H)*23.4(V)

1.3 inch tft ips lcd display resolution 240*240 IPS high brightness lcd SPI interface



Parameters

Item Specification
Display Mode Normally White,Transmissive
Display Technology α-Si TFT active matrix
Outline Dimension 26.2(H) *29.22(V) * 1.45(T) mm
Active Area 23.4(H)*23.4(V) mm
Resolution 240X(RGB)X240 dots
Pixel Pitch 0.0975X0.0975 mm
Pixel Configuration RGB Stripe
Backlight White LED
Luminance (300)(Typ.) cd/m2
Surface Treatment Anti-Glare
Driver IC ST7789V
Viewing Direction ALL

Pin

Drawing

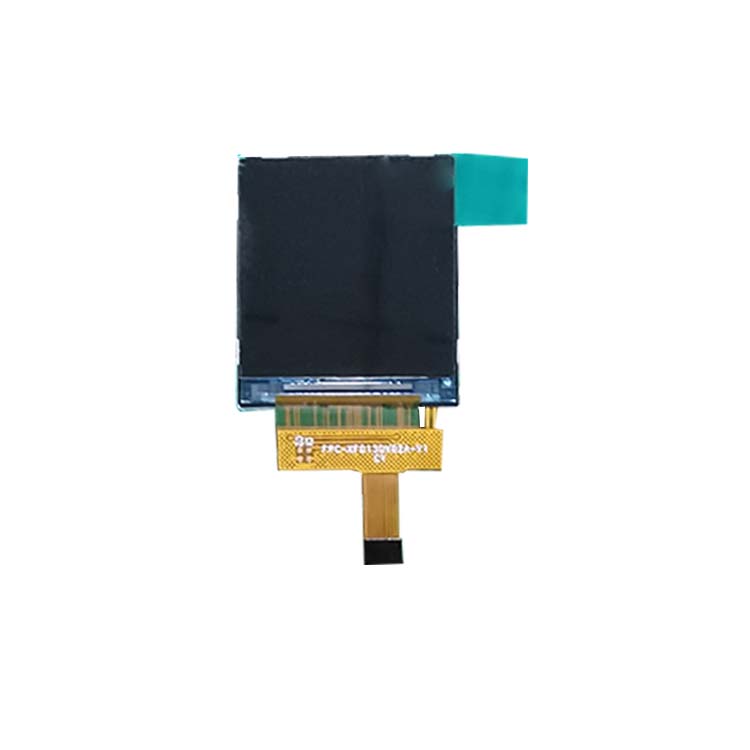

Real Shot

Production Flow

Equipments

Company Information

Shenzhen Technology Co., Ltd. is an overseas sales part of Matrix Crystal Technology (Shenzhen)

Co., Ltd , set up in 2005, in possession of 13-year experience at designing and manufacturing small LCD

displays from 0.96″ to 13.3″, E-paper, OLED display. There are 6 production lines with all full-automatic

machines, lapping-machines, COG+FOG machines, glue dispensers, BL assembly machines, etc.

10+ staff in quality team and 200 employees are here to produce the best products.



Welcome to do cooperation with us !

Customer Visiting

OEM Service

1.We can support Small MOQ



2.We can supply models for long term



3.Without Mold cost



4.1 Year quality Warranty
