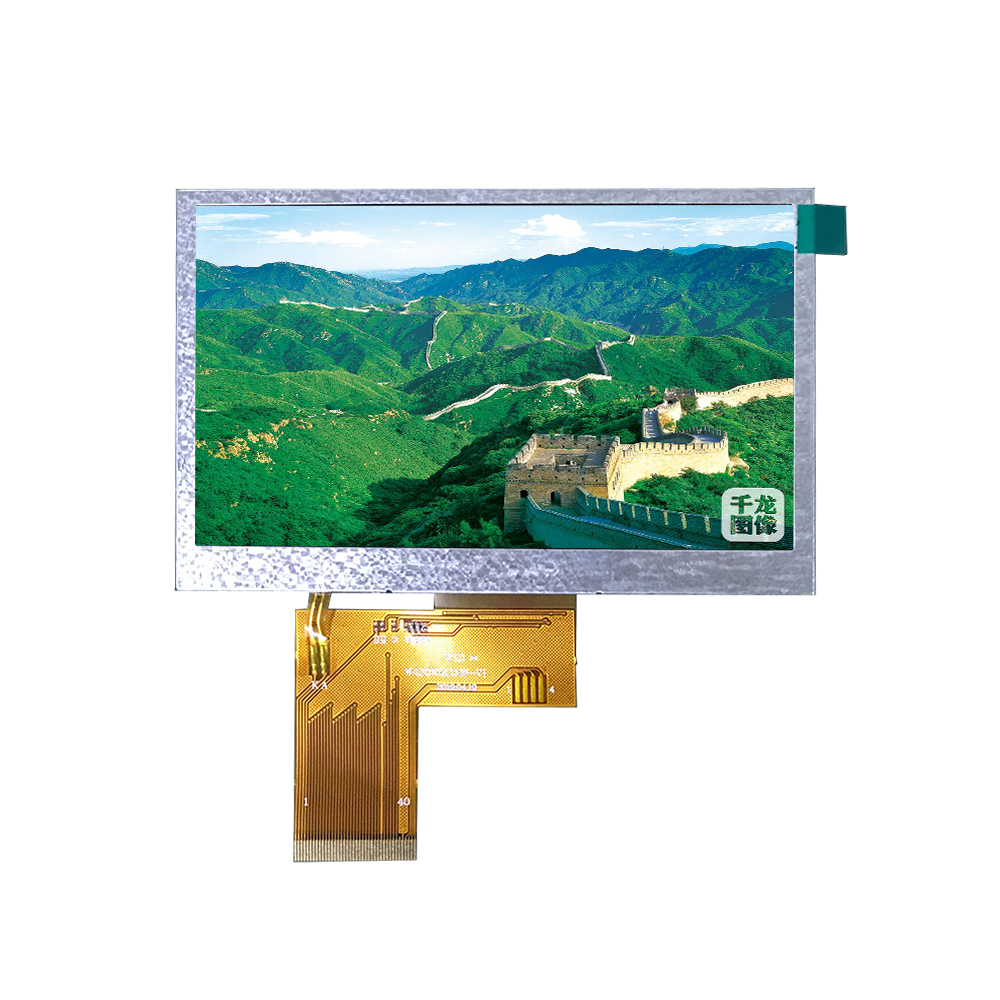

4.3 inch lcd 480×272 Resolution ST7282 IC RGB interface factory price tft lcd module
Quick Details
Type: TFT LCDDisplay Size: 4.3 Supplier Type: ManufacturerPlace of Origin: Guangdong, ChinaBrand Name: Size: 4.3″Pixel Pitch: 0.198*0.198Display mode: NORMALLY WHITE, TRANSMISSIVEViewing Direction: 6 o’clockLuminance: 400 (min)Interface: RGBNumber of dots: 480X(RGB)X272LCM dimension: 105.42(H) X 67.07(V) X 3.0(T)Active area: 95.04 (H) X 53.86 (V)Driver IC: ST7282
4.3 inch 480×272 Resolution ST7282 IC RGB+SPI interface factory price lcd
Parameters
| Item | Specification |
| Display Mode | Normally White, Transmissive |
| Display Technology | α-Si TFT active matrix |
| Outline Dimension | 105.42(H) X 67.07(V) X 3.0(T) ±0.1 mm |
| Active Area | 95.04 (H) X 53.86 (V) mm |
| Resolution | 480X(RGB)X272 dots |
| Pixel Pitch | 0.198X0.198 mm |
| Pixel Configuration | RGB Stripe |
| Backlight | White LED |
| Luminance | (400)(Typ.) cd/m2 |
| Surface Treatment | Anti-Glare |
| Driver IC | ST7282 |
| Viewing Direction | 6 |
Pin
| Interface NO. | Symbol | I/O or connect to | Description | When not in use |
| 1 | LEDK | LED DRIVER | Backlight cathode. | - |
| 2 | LEDA | LED DRIVER | Backlight anode. | - |
| 3 | GND | PWR SUPPLY | Power ground. | - |
| 4 | VCC | PWR SUPPLY | Power supply for digital circuit. | - |
| 5-12 | R0-R7 | I/O | Red signal data bus. | GND/IOVCC |
| 13-20 | G0-G7 | I/O | Green signal data bus. | GND/IOVCC |
| 21-28 | B0-B7 | I/O | Blue signal data bus. | GND/IOVCC |
| 29 | GND | PWR SUPPLY | Power ground. | - |
| 30 | PCLK | I/O | Dot clock signal. | - |
| 31 | DISP | I/O | Display control / standby mode selection. | GND/IOVCC |
| 32 | HSYNC | I/O | Horizontal sync input. | GND/IOVCC |
| 33 | VSYNC | I/O | Vertical sync input. | GND/IOVCC |
| 34 | DE | I/O | Data enable signal. | GND/IOVCC |
| 35 | NC | - | No connect. | - |
| 36 | GND | PWR SUPPLY | Power ground. | - |
| 37 | XR | - | TP right signal. | - |
| 38 | YD | - | TP down signal. | - |
| 39 | XL | - | TP left signal. | - |
| 40 | YU | - | TP up signal. | - |
Drawing
