Product Features:
model | CF -G105WT | CF -G108WT |
Fixed port | 5 10 / 100 / 1000Base-T X RJ45 ports | 810 / 100 / 1000Base-T X RJ45 ports |
protocol standard | IEEE802.3 10Base-T IEEE802.3u 100Base-TX | IEEE802.3x Flow control IEEE802.1q VLAN IEEE802.1pQoS |
IEEE802.3ab 1000Base-T | IEEE802.1d Spanning Tree | |
Network port characteristics | Ø Electric port connector: RJ45 | |
Ø Transmission rate: 10 / 100 / 1000Mbps adaptive | ||
Ø Cable type: UTP-5E or higher level | ||
Ø Transmission distance: 100 m | ||
performance index | Ø Forward way: store and forward | Ø Forward way: store and forward |
Ø Backplane Bandwidth: 10Gbps | Ø Backplane Bandwidth: 16Gbps | |
Ø Package forwarding rate: 7.44M pps | Ø Package forwarding rate: 11.9Mpps | |
Ø MAC, address table: 8K | Ø MAC, address table: 8K | |
Ø Package forwarding cache: 4M | Ø Package forwarding cache: 4M | |
Power specifications | Ø External power adapter: DC 5V1A | Ø External power adapter: DC 12V1A |
Ø Total complete machine power: 5W | Ø Total complete machine power: 10W | |
Ø Standby power consumption: <1.3W (complete machine power consumption) | Ø Standby power consumption: <3.1W (complete machine power consumption) | |
Ø Full load power consumption: <3W (the whole machine power consumption | Ø Full load power consumption: <6W (complete machine power consumption) | |
LED pilot lamp | Ø Power indicator: PWR (green); data indicator: Link / Act (green) | |
work environment | Ø Storage temperature: -40 ~ 70℃ | |
Ø Operating temperature: -10 ~ 55℃ | ||
Ø Working humidity: 10% ~ 90% RH without condensation | ||
Ø Storage humidity: 5% ~ 90% RH without condensation | ||
Appearance structure | Ø Product size: 1007027mm | Ø Product size: 1438027mm |
Ø Desktop-type, wall-mounted installation | Ø Desktop-type, wall-mounted installation | |
Ø Net quantity: 0.15g | Ø Net quantity: 0.25kg | |
Ø Gross weight: 0.25kg | Ø Gross weight: 0.35kg | |
Safety regulations certification | Ø 3C certification; | |
Ø CE mark, commercial;CE/LVD EN60950 | ||
Ø FCC Part 15 Class B;RoHS | ||
Warranty period | Ø Switch for 3 years, lifetime maintenance |
packing list | item name | quantity | unit |
5-Port Gigabit Ethernet Switch (CFY-G105W) | 1 | 1 | |
External power adapter 5V / 1A | 1 | 1 | |
Warranty card and qualification certificate | 1 | 1 | |
Quick Use Guide | 1 | 1 |
product model |
product description |
CF-G 105W | External power desktop 5-port Gigabit Ethernet switch, 5 RJ45 electrical ports: 10 / 100 / 1000Mbps, 100m; external power adapter: input AC 100V-240V, output DC 5V / 1A |

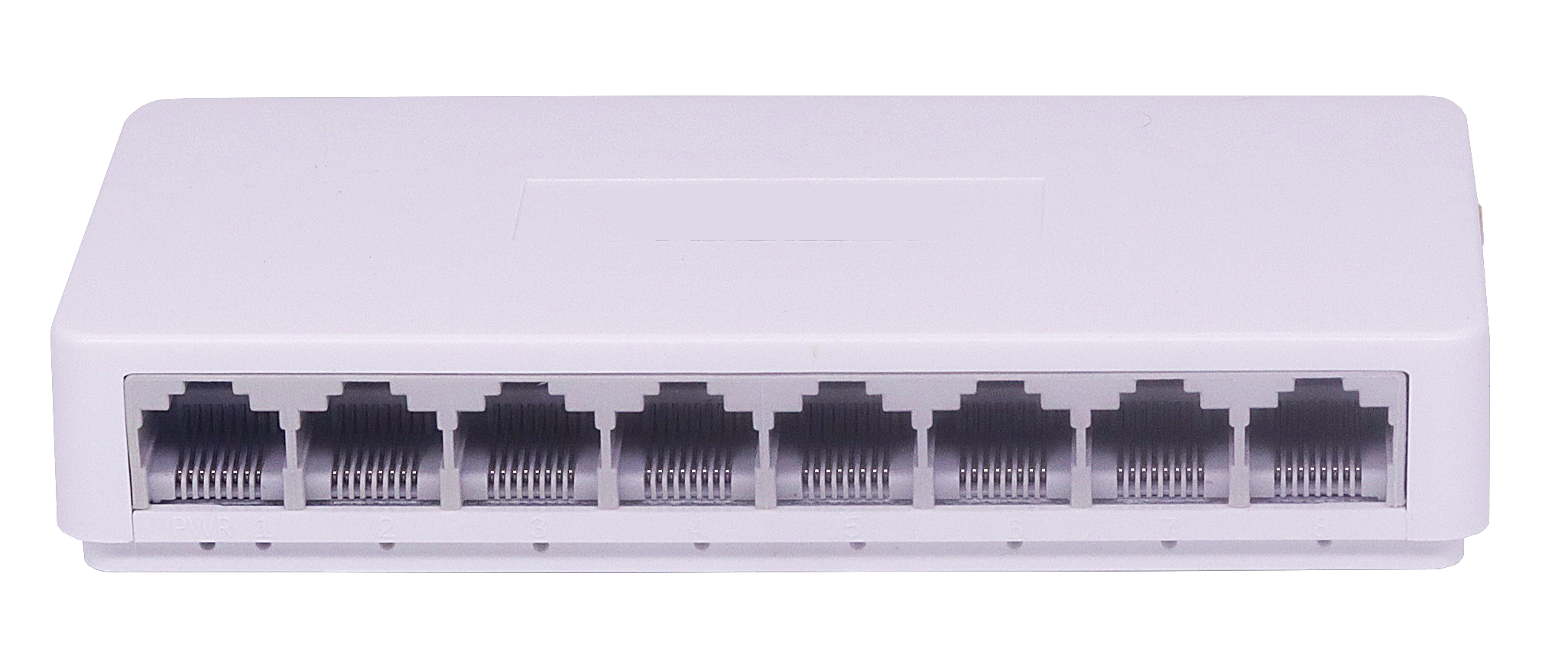

CF-G 108W | External power desktop 8-port Gigabit Ethernet switch, 8 RJ45 electrical ports: 10 / 100 / 1000Mbps, 100m; external power adapter: input AC 100V-240V, output DC 12V / 1A |
