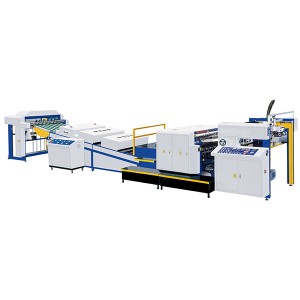

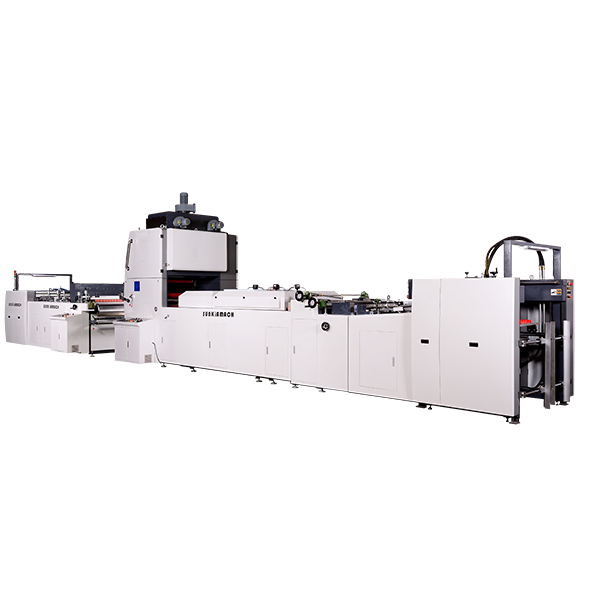

Automatic High-Speed Multifunctional Window Lamination Machine (Water-based Glue/Oily Glue/Pre-coated Film)
Characteristics
♦ This is a multifunctional window laminating machine, by heating and pressing the laminating steel roller to laminate the film on the glued paper. Good lamination effect can be reached and the cost is reduced.
♦ Thermal energy utilization reaches 95%, and the heating rate is doubled.
♦ Servo drive system controls the paper overlap system, making paper overlap more stable, effcient and accurate.
♦ Heat recycling system, effectively reduce heat loss, more energy saving and environmental protection, improve efficiency by 25%.
♦ Flying-knife laminating machine: Flying-knife cutter system is specialized in thin paper, PET, PVC, thin film, it is available for all kinds of film.
Configuration

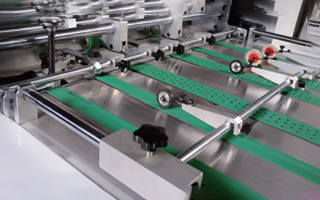

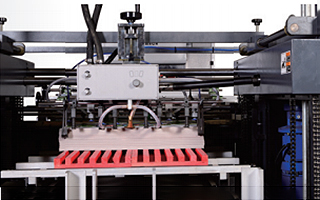

Paper Feeder
High-speed feeder heads with four-suction, four-feed is applying into kinds of thin and thick paper.
High precision servo-drive will
control the paper overlap system

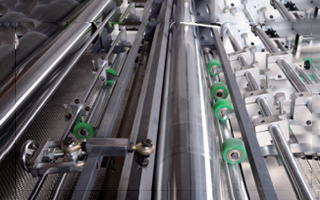

Dust Remover
Electrostatic powder cleaner can remove more than 90% of dust from paper surface.

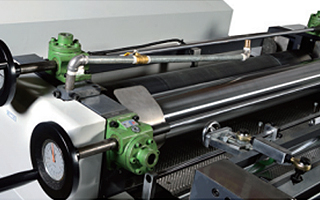

Gluing system for window lamination products
It is available for both water-based glue and oily glue, also the glue can be averagely coated.

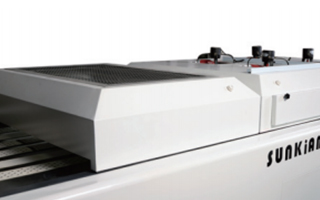

IR drying system
Two options: Half-power heating OR full-power heating

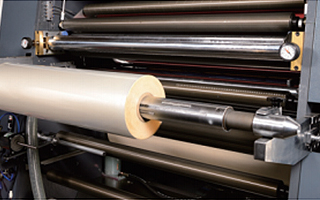

Coating System
Ceramic roller work with blade system to control the glue thickness and glue consumption.

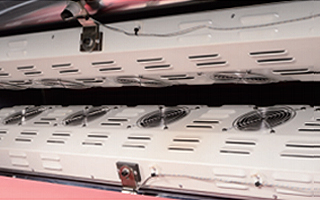

Eletromagnetic heating system
Low heat loss, high utilization,
fast heating,
20% energy saving

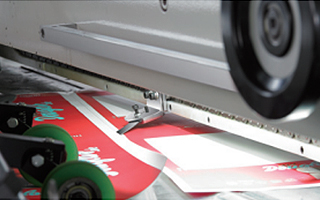

Flying-Knife Cutter
Flying-knife cutter specialized in thin paper, PET, PVC, thin film, it is available for all kinds of film.
Snapping System
Snapping roller system suitable for different sizes of the sheet, and it is more stable for thin paper cutting with easy adjustment.

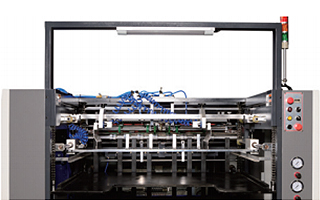

Paper delivery system
Pneumatic jogging system, waste discharge system, paper can be neatly collected even under high speed production

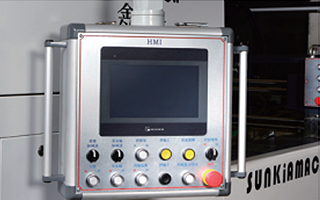

Human Machine Interface
Humanized design,
rotatable operation

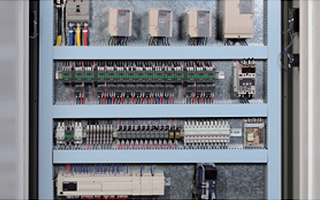

Electric box in CE standard
Imported electrical components, PLC control system for circuit
Specification
|
Model |
XJFMKC-1200 |
XJFMKC-1200L |
XJFMKC-1200XL |
|
Speed(M/min) |
25-80 |
25-80 |
25-70 |
|
Paper Thickness(g/m2) |
100-500 |
100-500 |
100-500 |
|
Max. Sheet Size(W*L)mm |
1200*1200 |
1200*1450 |
1200*1650 |
|
Min. Sheet Size(W*L)mm |
300*300 |
300*300 |
350*350 |
|
Power Requirement(KW) |
60 |
65 |
70 |
|
Production Power(KW) |
30 |
35 |
45 |
|
Dimension(L*W*H)mm |
13500*2600*2800 |
14500*2600*2800 |
16500*4300*2800 |
|
Machine Weight(KG) |
11300 |
12000 |
16000 |
