BSL Cemented Carbide Rotary Burr Blanks Ball Nose Cone Type
BSL Cemented Carbide Rotary Burrs Blanks Ball Nose Cone Type
Cemented Carbide Rotary Burrs Blanks Ball Nose Cone Type is also called BSL Type.
Tungsten Carbide Rotary Burr Blanks have various types, such as Cylinder, Ball Nosed Cylinder, Ball Nose Tree and so on. These are specially used for manufacturing Rotary Burrs, which are perfectly suitable for deburring, shaping, smoothing welds, enlarging holes, carving and finishing.
Tungsten Rotary Burrs are a new product increasing productivity of several ten times than using hand tools and three to five times than using small emery wheels. And gradually replaced small emery wheels, they are widely known throughout the world for their high efficiency and long lifetime.
Know more about Rotary Burrs please click it
Features of Cemented Carbide Rotary Burr Blanks
High efficiency, and high precisionClean, smooth finishing and good cutting qualityExcellent lifetime and wear resistanceVarious types of rotary burr blanks to process various kinds of metalOEM/ODM, Customization is availableManufacturer supply, factory direct supply, nice priceISO 9001 Certification
Recommend Grade of Cemented Carbide Rotary Burr Blanks
|
MY Grade |
MK10 |
MK15 |
MK20 |
|
|
Grace |
YG6 |
YG7 |
YG8 |
|
|
ISO Grace |
K10 |
K10-K20 |
K20 |
|
|
Co |
% |
6 |
7 |
8 |
|
Grain Size |
μm |
1.2 |
1.2 |
1.2 |
|
Density |
G/m³ |
14.8 |
14.75 |
14.7 |
|
Hardness |
HRA |
91.5 |
91 |
90.5 |
|
HV30 |
1530 |
1470 |
1410 |
|
|
T.R.S. |
Mpa |
2700 |
2800 |
2800 |
Other grades please click here and we can also offered by customs’ requirements.

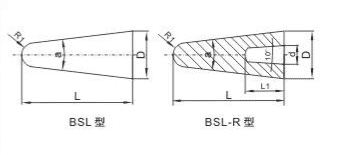

Dimension of Cemented Carbide Burr Blanks Ball Nose Cone(BSL) Type
Solid Carbide Burr Blanks with hole and customized are available.
All in mm
|
Model |
D |
+0.10 +0.18 |
L |
+0.25 +0.15 |
d |
+0.2 -0.1 |
L1 |
+0.25 +0.1 |
R |
+0.20 -0.05 |
a |
|
BSL(R)0613 |
Φ6.0 |
13.0 |
Φ1.5 |
3.0 |
30.0 |
14.0° |
|||||
|
BSL(R)0616 |
Φ6.0 |
16.0 |
Φ1.5 |
3.0 |
32.0 |
14.0° |
|||||
|
BSL(R)0822 |
Φ8.0 |
22.0 |
Φ2.5 |
5.0 |
34.0 |
14.0° |
|||||
|
BSL(R)1025 |
Φ10.0 |
25.0 |
Φ2.5 |
5.0 |
39.0 |
14.0° |
|||||
|
BSL(R)1228 |
Φ12.0 |
28.0 |
Φ5.0 |
10.0 |
41.0 |
14.0° |
|||||
|
BSL(R)1633 |
Φ16.0 |
33.0 |
Φ6.0 |
12.0 |
41.0 |
14.0° |
|||||
