Built-in High-capacity Battery Biometric Time Attendance Machine

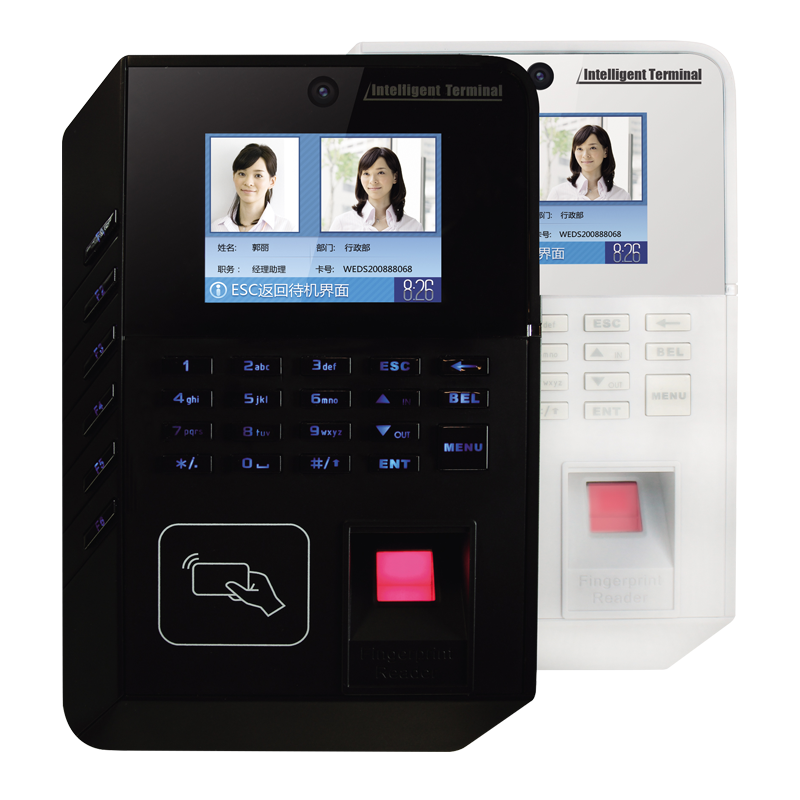

I8 indoor battery biometric terminal
RF card, password, fingerprint, camera photo, can be combined to identify, fast speed, high reliability, good stability. Equipped with RJ45 Ethernet communication method, it can realize long-distance transmission such as LAN and MAN.
Specification
| Item | Parameter |
| Standard Power | DC 12V/2A |
| Battery(Optional) | 1100mAh/7.4V |
| Rated Power | 6W |
| Appearance Size | 205* 150* 41(mm) |
| Weight | 480g |
| Identification Mode | IC、ID card、fingerprint、2.4G RF-UIM/RF-SIM card etc |
| Identification Speed | fingerprint identification < 1 second/ card identification< 0.2 second |
| Card Identification Distance | IC/ID card identification distance: 2.5-10(cm),2.4G RF-UIM/RF-SIM card identification distance > 3cm |
| Time Attendance Speed | Fingerprint identification: 30 persons /minute, card identification: 60 persons /minute(fastest speed) |
| Fingerprint Capacity | 3000/10000 |
| Fingerprint Enroll Time (for each fingerprint) | 3 times |
| Photography | 1.30 mega pixels, HD color camera |
| Storage Capacity | 256MB, 16G SD card and 16G USB flash |
| Display | 3.5 inches color TFT LCD resolution 320×240 |
| Network Interface | 100/10Base-T Ethernet interface, RS485 |
| WIFI/3G Module | Optional |
| Data Transmission Protocol | TCP/IP |
| USB Interface | USB2.0 interface, support WIFI, 3G |
| Wiegand Card Reader | Support external Wiegand 26, WEDS card reader with WEDS internal wiegand protocol |
| Access Control | Built-in two-door access control |
| Working Environment | Temperature -5-45deg humidity 10%-90% |
| Sound Effect | Voice reminder |
| Capacity Volume | 100, 000 people |
| Data Protection Time after Time | > 10 years |
| Records Amount（with photos） | <= 20,000 |
| Records Amoun（t without photos） | <= 100,000 |
