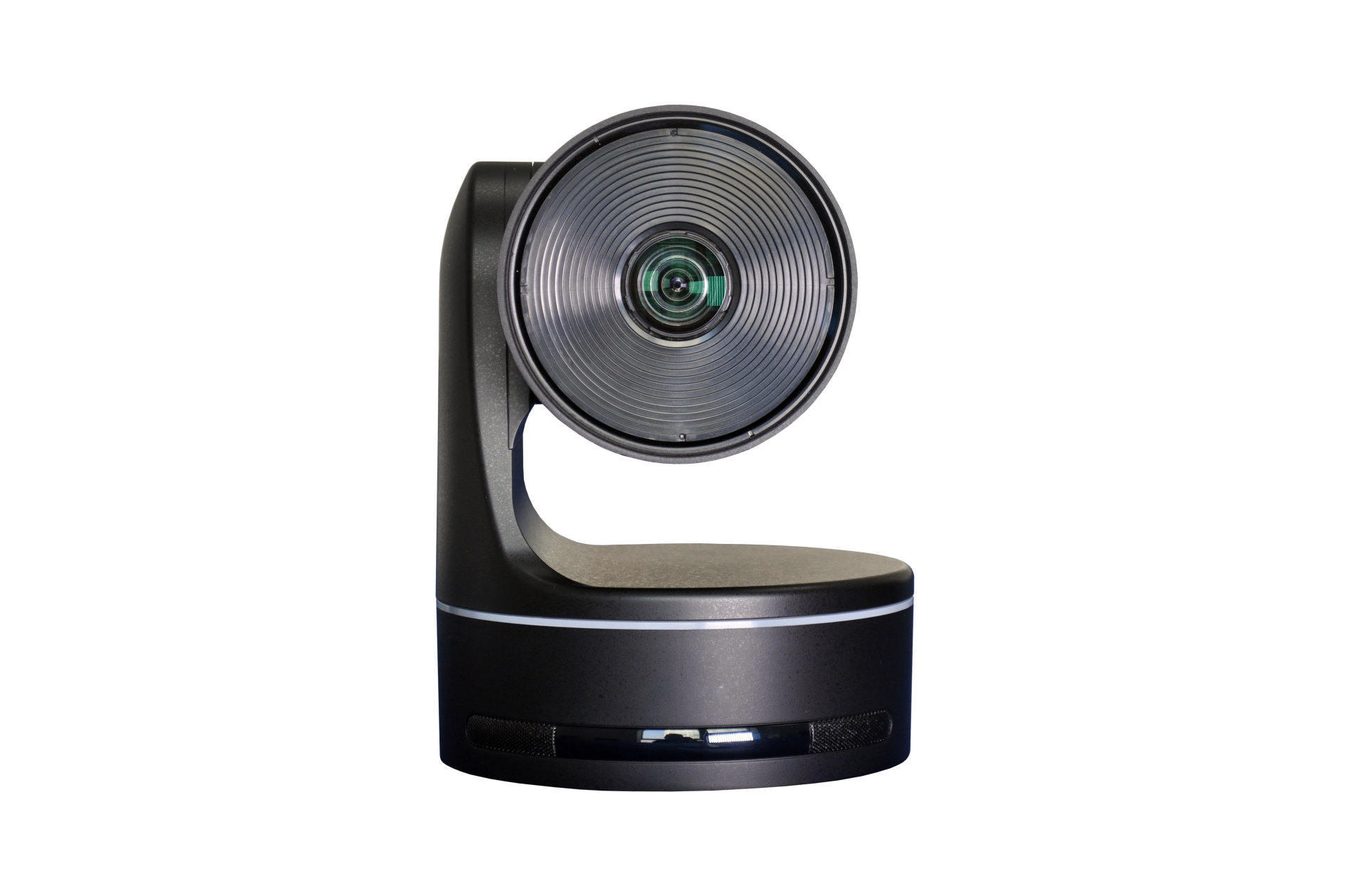

-C25NW Fully Stocked 1/2.5-Inch Exmor R Cmos Sensor 4k Broadcast Grade Srt 4k Ndi Camera

Short Description:

1. 1/2.5-inch Exmor R CMOS imager, broadcast quality 4K image;2. 4K 20x optical zoom, SRZ 4K 30x, HD 40x;3. Servo motor high-speed cradle head, translation/pitch speed 0.1°~300°/ SEC;4. NDI Wired NDI Wireless5. 8.93 million pixels, 3840×2160 resolution;6. SDI, NDI, HDMI 4K video output;7. Recording MP4/MOV with time code, 1920×1080@60fps Ultra TF (MicroSD) FAT32, exFAT;8. Live NDI, 360°Tally; Dual φ9.7 microphone array all-pointing microphone;9. Application: 4K video shooting, studio, media live broadcast, multi-camera shooting;10. Size: 160mm155mm×230mm; Weight: about 1.6kg;

Send email to us Download as PDF

Product Detail

Product Tags

1 – 9 Pieces

$1519.00

Click to order -C25NW on Alibaba

10 – 99 Pieces

$1381.00

Click to order -C25NW on Alibaba

>=100 Pieces

$1,267.00

Click to order -C25NW on Alibaba

Product specification sheet

Model number	-C25NW
Imager	1/2.5″Back-Illuminated Exmor R CMOS Sensor
Effective pixels	8, 930, 000Pixels
Signal system	2160/29.97p, 1080/59.94p, 1080/59.94i, 720/59, 94p, 2160/25p, 1080/50p, 1080/50i, 720/50p, 2160/23.98p, 1080/23.98p
Optical zoom	4K 20X, SRZ 4K 30X, HD 40X
Angle	Pan-175°~+175°, Tilt+90°~-30°
Speed	Servo motor control, Speed:Level 0.1°~300°/ s, Tilt0.1°~300°/ s
Precision	Precision repeatability error <0.01
The slow mode	Support
Minimum illumination	0.75 lux
SNR	55dB
Definition	3840×2160
Aperture	Auto/Manual
Focus	Auto/Manual
White balance	Auto/Manual
Focal length	f=4.4mm~88mm, F2.0(wide)~F3.8(tele)
The minimum distance	10mm~INF (wide), 1500mm~INF (tele) (default:300mm)
Presetting bit	Default 128
Control interface	VISCA RS-485/RS-232, RJ45 (input/output), Support control, NDI HX wireless
Connector	BNC(×1), 1.0 Vp-p, 75Ω, 3G-SDI OUT×2(option);NDI RJ45×1, NDI wireless Wi-Fi×1 IEEE802.11a/b/g/n/ac, USB×1, HDMI(4K)OUT×1, MIC IN×1
Wireless transmission	NDI wireless, Delayed 150ms
Video coding	H.264 Baseline/Main/High Profile, 4:2:0, MAX:8Mbps
Audio coding	AAC LC, 32Kbps, 64Kbps, 96Kbps, 128 Kbps
Recording format	MP4/MOV;1920×1080@60fps
Card	Ultra TF(MicroSD)FAT32, exFAT
Live streaming	NDI
Microphone	φ9.7×2 MIC (Array omnidirectional microphone, 32K sampling, I2S 48KHz, AEC, AGC, ANS)
A director prompt	360°TALLY
Power supply	DC jack 12DC, DC10.8V-13.2V

Product description

Image imager type 1/2.5 backlight Exmor R CMOS imager;

Optical zoom 20x, SRZ 4K 30x, HD 40x;

Focal length 4.4 mm (f = wide) ~ 88 mm (Tele), F 2.0 ~ F 3.8;

Imager (effective pixel number) 8.93 million pixels;

Signal system 4KUHD 2160/29.97p, 2160/25P, 2160/23.98P;

Signal system FHD 1080/59.94p, 1080/59.94I, 720/59, 94P, 1080/50P, 1080/50I, 720/50P, 1080/23.98P;

Color: 0.75lx (F1.8, AGC on, 1/30 s);

Horizontal resolution 1800 TV cable (3G-SDI output) (center);

Gain automatic/manual (-3dB to +33dB);

Shutter speed 1/1 second to 1/10000 second, 22 steps;

Exposure control automatic, manual, priority mode (shutter priority, aperture priority and gain priority);

Aperture control 16 steps;

White balance automatic, automatic tracking white balance, indoor, outdoor, outdoor automatic, sodium lamp;

Digital zoom none

Focusing system automatic (sensitivity: normal, low), one key automatic focusing, manual, interval automatic focusing;

Minimum object distance 10mm(wide Angle) to 1500mm (remote)(default :300mm);

Translation/pitching Angle Translation: ±175° Pitching: +90°/-30°;

Translation/pitch speed servo motor control, translation 0.1°~300°/ s, pitch 0.1°~300°/ s;

Translation/pitch accuracy repeatability accuracy error <0.01°;

Pan/pitch slow mode support;

Preset bit 128;

PTZ tracking memory 16;

PTZ mobile synchronization;

Interface

4K video output HDMI;

HD video output 3G-SDI, HDMI, NDI;

HDMI gamut YCbCr, 4:2:2 RGB, 4:4:4;

Audio interface MIC IN×1;

Camera control interface VISCA RS-485/RS-232, NDI-RJ45 cable bidirectional control, NDI wireless bidirectional control;

Output interface BNC (×1), 1.0 VP-P, 75 ω, 3G-SDI output ×1; HDMI output (4 k) x 1; NDI cable – RJ45 x 1, NDI Wireless – WiFi antenna x 1 IEEE802.11a/b/g/ N/AC, USB x 1;

Wireless transmission: NDI wireless, support WiFi wireless transmission, delay 150ms;

H.264 Baseline/Main/High Profile, 4:2:0, Max. 8Mbps;

Audio encoding: AAC LC, support 32 Kbps, 64 Kbps, 96 Kbps, 128 Kbps;

Recording format: MP4 / MOV; Recording format: maximum support 1920×1080@60fps; Signal format: support line-by-line and interlaced signals; SD card document system format support FAT32, exFAT; Support NDI remote bidirectional control, remote control recording, stop and recording progress feedback;

Ultra 128GB TF (MicroSD) memory card (optional)

Live: NDI 2.0;

Other parameters

Built-in array microphone: dual φ9.7 microphone array, omni-pointing, low noise, support 360 degrees omni-directional sound pickup, the maximum sound pickup distance of 10 meters; Support 32K sampling and AEC, AGC, ANS processing, I2S digital audio output 48KHz; Sound clear, sound quality reduction, comfortable listening, high definition, high reduction, high signal-to-noise ratio, low distortion, low noise;

Dc input: DC jack 12DC, DC10.8V-13.2V;

Guide tip: 360°Tally lamp;

Multiple -C25NW cameras can transmit wirelessly without any interference or distance limit. As long as there is a wireless network signal, audio and video signals can be transmitted stably. At the same time, the picture is clear and smooth, the delay is less than 100ms, and there is no tail. First of all, the camera can push, pull, shake, bends down, back wireless remote control, real-time control can be achieved by Katie whole series of mining information recorded all-in-one and virtual machine equipment for real-time control, and support wireless Tally, the camera recording can also be remotely via kaidi two-way control equipment, realize the remote control to record, stop and all of the information feedback, The feedback information includes the recording progress, recording time, recording capacity, and recording file name.
