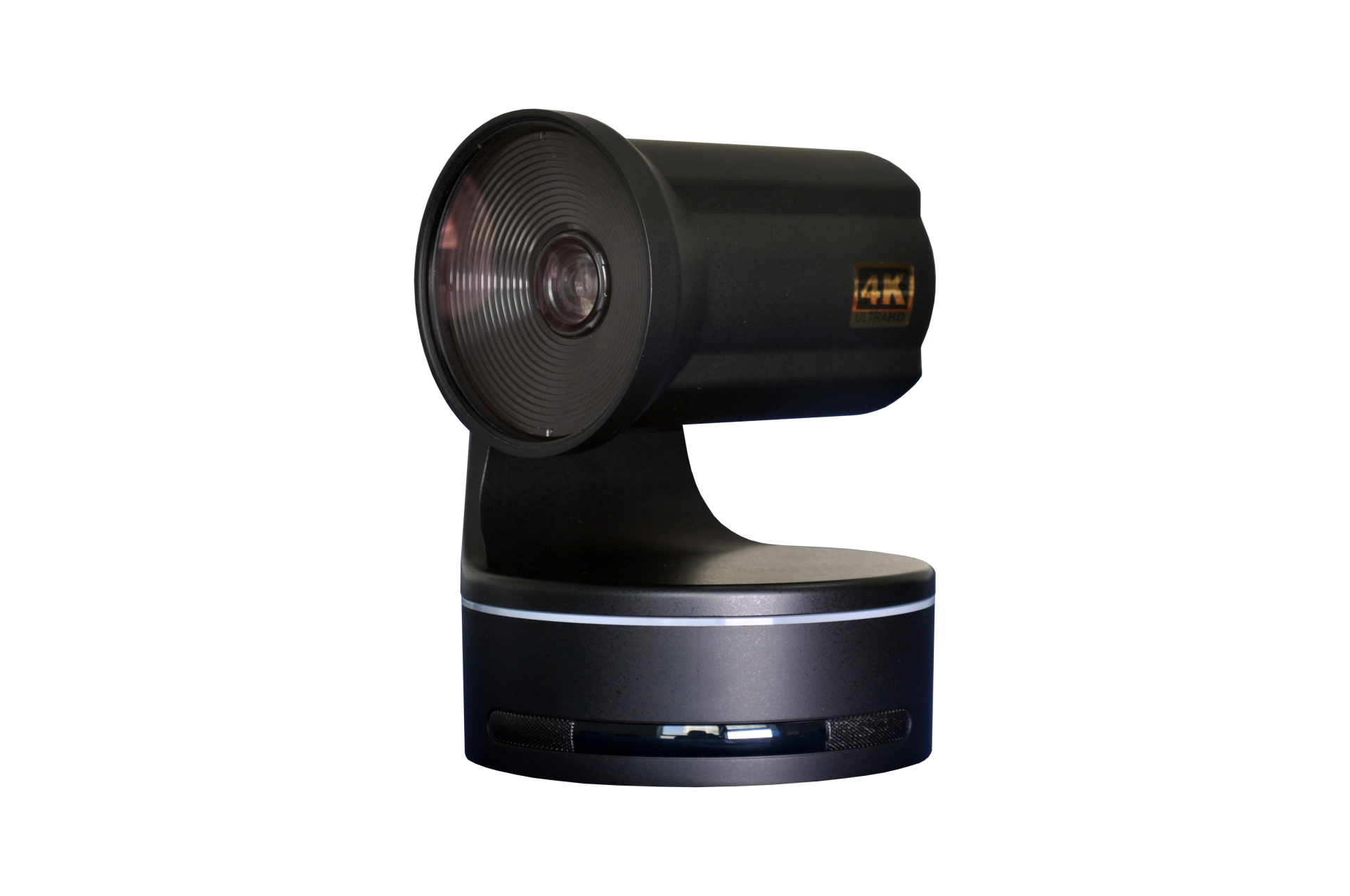

-C25UH-B China Supplier Wholesale live stream cameras 4k ptz camera for multi-camera shooting

Short Description:

1, 1/2.5-inch Exmor R CMOS imager, broadcast quality 4K image;20x optical zoom, SRZ 4K 30x, HD 40x;3, Servo motor high-speed cradle head, translation/pitch speed 0.1°~300°/ SEC;4. 4K remote lossless image transmission and control technology;5, 8.93 million pixels, 3840×2160 resolution;6, 3G-SDI, HDMI, 4K video output;7, Audio XLR×2 input with 48V phantom power supply, add embedded audio;8. Built-in φ9.7 microphone array and 360°TALLY lamp;9. Application: 4K video shooting, studio, media live broadcast, multi-camera shooting;10. Size: 160mm155mm×230mm;  Weight: about 1.6kg


Product Detail

Product Tags

1 – 4 Pieces

$1176.00
Click to order -C25UH-B on Alibaba



5 – 99 Pieces

$1069.00
Click to order -C25UH-B on Alibaba



>=100 Pieces

$972.00
Click to order -C25UH-B on Alibaba



Product specification sheet

Model number

-C25UH-B

Imager

1/2.5″Back-Illuminated Exmor R CMOS Sensor

The lens aperture

8,930,000Pixels

Variable focal length

2160/29.97p,1080/59.94p,1080/59.94i,720/59,94p,2160/25p,1080

/50p,1080/50i,720/50p,2160/23.98p,1080/23.98p

Variable focal length

4K 20X,SRZ 4K 30X,HD 40X

 Angle of view

Pan-175°~+175°,Tilt+90°~-30°

Speed

Servo motor control,Speed:Level 0.1°~300°/ s,Tilt0.1°~300°/ s

Precision

Precision repeatability error <0.01

The slow mode

Support

Minimum illumination

0.75 lux

SNR

55dB

Definition

3840×2160

Aperture

Auto/Manual

Focus

Auto/Manual

White balance

Auto/Manual

Focal length

f=4.4mm~88mm,F2.0(wide)~F3.8(tele)

The minimum distance

10mm~INF (wide),1500mm~INF (tele) (default:300mm)

Presetting bit

Default 128

Control interface

VISCA RS232/485

Video interface

BNC(x1) 1Vp-p 75Ω 3G-SDIx1,HDMI(4K)x1

Power supply

DC jack 12DC,DC10.8V-13.2V

Microphone

φ9.7×2 MIC (Array omnidirectional microphone,32K sampling,I2S 48KHz,AEC,AGC,ANS)

A director prompt

360°TALLY lamp

Control transmission

Video,Audio,Tally,Power supply,PTZ control,All in one

Product description

Image imager type 1/2.5 backlight Exmor R CMOS imager;

Optical zoom 20x, SRZ 4K 30x, HD 40x;

Focal length 4.4 mm (f = wide) ~ 88 mm (Tele), F 2.0 ~ F 3.8;

Imager (effective pixel number) 8.93 million pixels;

Signal system 4KUHD 2160/29.97p, 2160/25P, 2160/23.98P;

Signal system FHD 1080/59.94p, 1080/59.94I, 720/59, 94P, 1080/50P, 1080/50I, 720/50P, 1080/23.98P;

Color: 0.75lx (F1.8,AGC on,1/30 s);

Horizontal resolution 1800 TV cable (3G-SDI output) (center);

Gain automatic/manual (-3dB to +33dB);

Shutter speed 1/1 second to 1/10000 second, 22 steps;

Exposure control automatic, manual, priority mode (shutter priority, aperture priority and gain priority);

Aperture control 16 steps;

White balance automatic, automatic tracking white balance, indoor, outdoor, outdoor automatic, sodium lamp;

Digital zoom none

Focusing system automatic (sensitivity: normal, low), one key automatic focusing, manual, interval automatic focusing;

Minimum object distance 10mm(wide Angle) to 1500mm (remote)(default :300mm);

Translation/pitching Angle Translation: ±175° Pitching: +90°/-30°;

Translation/pitch speed servo motor control, translation 0.1°~300°/ s, pitch 0.1°~300°/ s;

Translation/pitch accuracy repeatability accuracy error <0.01°;

Pan/pitch slow mode support;

Preset bit 128;

PTZ tracking memory 16;

PTZ mobile synchronization;

interface

4K video output HDMI;

Hd video output 3G-SDI, HDMI;

HDMI gamut YCbCr, 4:2:2 RGB, 4:4:4;

Audio interface XLR3 type 3 core (female) (×2) input, line/microphone +48 V optional, line: +4dBu, microphone: -70DBU –30dBu;

Camera control interface VISCA RS-422 RJ45 (INPUT/output) passes through the IP VISCA RJ45

External synchronization input BNC, 75 ω, HD 3 level synchronization, STANDARD black pulse;

Built-in array microphone: dual φ9.7 microphone digital array microphone, omni-pointing, low noise, support 360 degrees omni-directional sound pickup, the maximum sound pickup distance of 10 meters;  Support 32K sampling and AEC, AGC, ANS processing, I2S digital audio output 48KHz;  Sound clear, sound quality reduction, comfortable listening, high definition, high reduction, high signal-to-noise ratio, low distortion, low noise;

Power connector type IEC60130-10 (JEITA standard RC-5320A) TYPE4;

Control and TALLY: A single 75-ohm coaxial cable or CAT5/CAT6 cable controls and carries five signals: video +XLR audio + Image sensor 1/2.5 type backlit Exmor R CMOS sensor;
Optical zoom 4K 20x, SRZ 4K 30x, HD 40x;
Lens filter diameter: 105mm, multi-film antireflection, light transmittance>99%;
Focal length 4.4 mm (f = wide) ~ 88 mm (tele), F 2.0 ~ F 3.8;
Imager (effective pixel count) 8.93 million pixels;
Signal system 4KUHD 2160/29.97p, 2160/25p, 2160/23.98p;
Signal system FHD 1080/59.94p, 1080/59.94i, 720/59, 94p, 1080/50p, 1080/50i, 720/50p, 1080/23.98p;
Minimum Illumination (50IRE) Color: 0.75 lx (F1.8, AGC on, 1/30 s);
Horizontal resolution 1800 TV lines (3G-SDI output) (center);
Gain Auto/Manual (-3dB to +33dB);
Shutter speed 1/1 second to 1/10000 second, 22 steps;
Exposure Control Auto, Manual, Priority Mode (Shutter Priority, Aperture Priority, and Gain Priority);
Aperture control 16 degrees;
White Balance Auto, Auto Tracking White Balance, Indoor, Outdoor, Outdoor Auto, Sodium Lamp;
Digital zoom none
Focusing system automatic (sensitivity: regular, low), one-key autofocus, manual, interval autofocus;
The shortest object distance is 10mm (wide-angle end) to 1500mm (far end) (default: 300mm);
Pan/Tilt Angle Pan: ±175° Tilt: +90°/-30°;
Pan/Tilt Speed Controlled by servo motor, pan 0.1°~300°/sec, pitch 0.1°~300°/sec;
Pan/tilt accuracy Repeatability accuracy error <0.01°;
Pan/Tilt slow mode support;
Preset 128;
PTZ tracking memory 16;
PTZ mobile synchronization;
interface
4K video output HDMI;
HD video output 3G-SDI, HDMI;
HDMI color gamut YCbCr, 4:2:2 RGB, 4:4:4;
Camera control interface VISCA RS-232/485; external sync input BNC, 75Ω, HD 3-level sync, SD black pulse;
Power connector type IEC60130-10 (JEITA standard RC-5320A) TYPE4;
Control and transmission: A 75Ω coaxial cable or CAT5/CAT6 network cable controls and transmits five signals, they are: video signal + audio signal + power supply + PTZ control and TALLY;Power +PTZ control and TALLY;
