Carbon Steel Thread Stud Black Oxide Grade 8.8 10.9 DIN 976

Short Description:

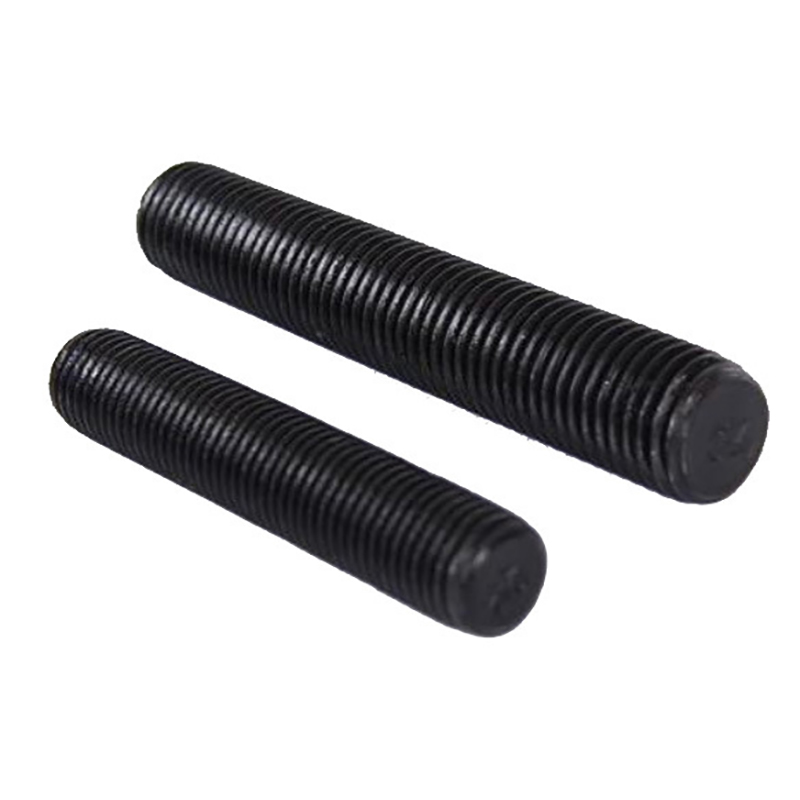

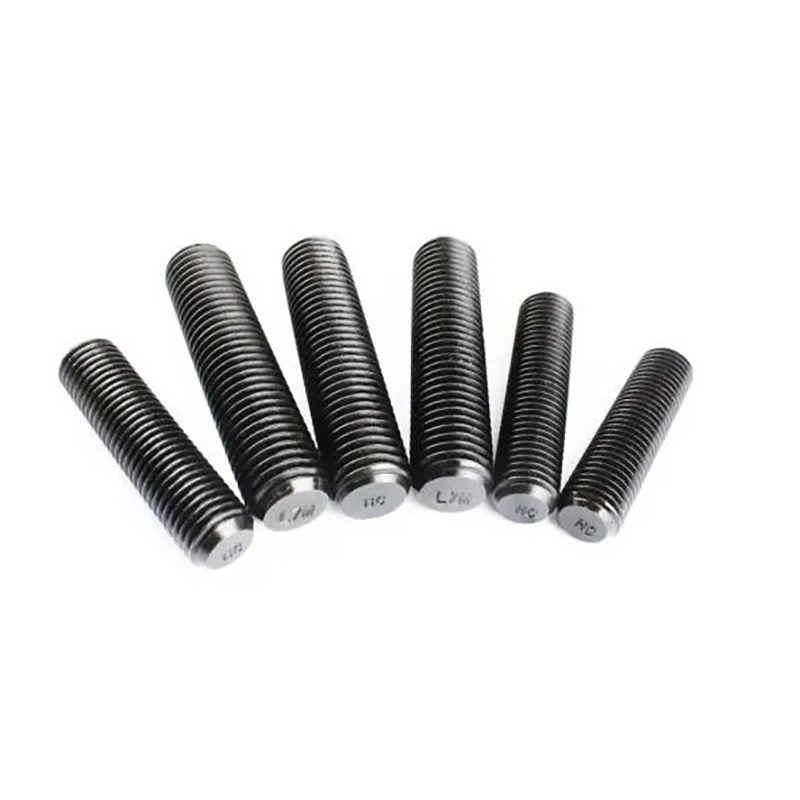

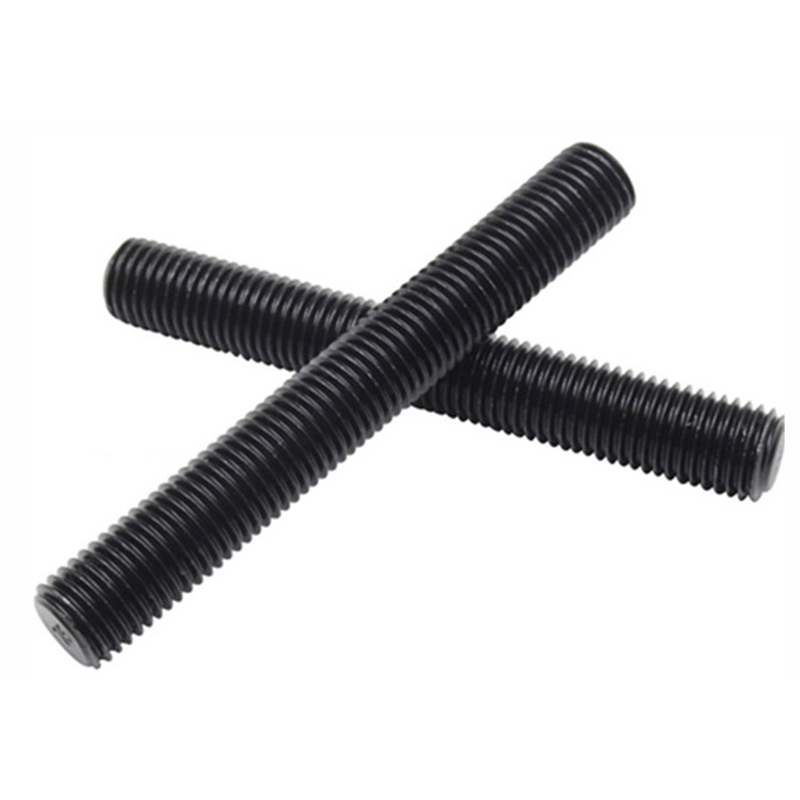

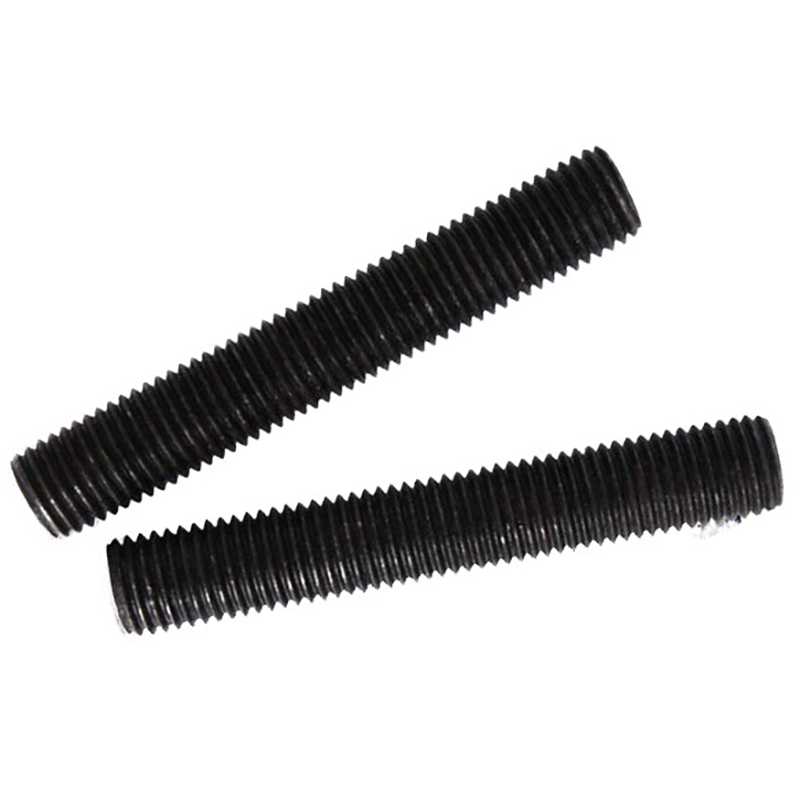

Product Name: Black Oxide Thread StudKey Words: DIN976, ASME B18.31.2, ASME B18.31.3, Full Thread RodSize: M5-M52, 4#-5″Length: Customized length from 50mm to 6000mm.Material: 35K, 45#, 42CrMoA, 40CrMoVStrength Grade: 8.8, 10.9Surface Treatment: Black OxideThread Length: Full ThreadPacking: Cartons, Wooden case, PalletsApplication: construction, new energy industry, auto industry, oil industry, etc.Other Features: Offer customized head mark

Send email to us Download as PDF

Product Detail

Product Tags

Description

QUICK Response

QUICK Quotation

QUICK Delivery

READY TO SHIP DELIVERY

10000+ SKU in warehouse

We Commit for RTS items:

70% items delivered within 5 days

80% items delivered within 7 days

90% items delivered within 10 days

Bulk orders, please contact customer service

DIN976

Thread Dia
d

M2.5

(M3.5)

M10

M12

(M14)

M16

(M18)

P	Coarse Thread
	Fine Thread
	Fine Thread
L	±10
Weight/kpcs≈kg

0.4	0.45	0.5	0.6	0.7	0.8	1	1.25	1.5	1.75	2	2	2.5
/	/	/	/	/	/	/	1	1.25	1.25	1.5	1.5	1.5
/	/	/	/	/	/	/	/	1	1.5	/	/	/
1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000
18.7	30	44	60	78	124	177	319	500	725	970	1330	1650

Thread Dia
d

M20

(M22)

M24

(M27)

M30

(M33)

M36

(M39)

M42

(M45)

M48

(M52)

P	Coarse Thread
	Fine Thread
	Fine Thread
L	±10
Weight/kpcs≈kg

2.5	2.5	3	3	3.5	3.5	4	4	4.5	4.5	5	5
1.5	1.5	2	2	2	2	3	3	3	3	3	3
/	/	/	/	/	/	/	/	/	/	/	/
1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000	1000
2080	2540	3000	3850	4750	5900	6900	8200	9400	11000	12400	14700

ASME B 18.31.2

Thread Dia
d

1/4

5/16

3/8

7/16

1/2

9/16

5/8

3/4

7/8

1-1/8

1-1/4

1-3/8

d
PP	UNC
	UNF
	8UN
U	UNC	Min
		Max
	UNF	Min
		Max
	8UN	Min
		Max

0.2500	0.3125	0.3750	0.4375	0.5000	0.5625	0.6250	0.7500	0.8750	1.0000	1.1250	1.2500	1.3750
20	18	16	14	13	12	11	10	9	8	7	7	6
28	24	24	20	20	18	18	16	14	12	12	12	12
-	-	-	-	-	-	-	-	-	-	8	8	8
0.050	0.056	0.063	0.072	0.077	0.084	0.091	0.100	0.111	0.125	0.143	0.143	0.167
0.100	0.111	0.125	0.143	0.154	0.167	0.182	0.200	0.222	0.250	0.286	0.286	0.333
0.036	0.042	0.042	0.050	0.050	0.056	0.056	0.063	0.072	0.084	0.084	0.084	0.084
0.071	0.083	0.083	0.100	0.100	0.111	0.111	0.125	0.143	0.167	0.167	0.167	0.167
-	-	-	-	-	-	-	-	-	-	0.125	0.125	0.125
-	-	-	-	-	-	-	-	-	-	0.250	0.250	0.250

Thread Dia
d

1-1/2

1-5/8

1-3/4

1-7/8

2-1/4

2-1/2

2-3/4

3-1/4

3-1/2

3-3/4

d
PP	UNC
	UNF
	8UN
U	UNC	Min
		Max
	UNF	Min
		Max
	8UN	Min
		Max

1.5000	1.6250	1.7500	1.8750	2.0000	2.2500	2.5000	2.7500	3.0000	3.2500	3.5000	3.7500	4.0000
6	-	5	-	4 1/2	4 1/2	4	4	4	4	4	4	4
12	-	-	-	-	-	-	-	-	-	-	-	-
8	8	8	8	8	8	8	8	8	8	8	8	8
0.167	-	0.200	-	0.222	0.222	0.250	0.250	0.250	0.250	0.250	0.250	0.250
0.333	-	0.400	-	0.444	0.444	0.500	0.500	0.500	0.500	0.500	0.500	0.500
0.084	-	-	-	-	-	-	-	-	-	-	-	-
0.167	-	-	-	-	-	-	-	-	-	-	-	-
0.125	0.125	0.125	0.125	0.125	0.125	0.125	0.125	0.125	0.125	0.125	0.125	0.125
0.250	0.250	0.250	0.250	0.250	0.250	0.250	0.250	0.250	0.250	0.250	0.250	0.250

ASME B 18.31.3

Size

10#

12#

1/4

5/16

3/8

7/16

1/2

9/16

d	Nominal Dia
PP	UNC
	8UN
	UNF
	Acme

0.1120	0.1250	0.1380	0.1640	0.1900	0.2160	0.2500	0.3125	0.3750	0.4370	0.5000	0.5620
40	40	32	32	24	24	20	18	16	14	13	12
-	-	-	-	-	-	-	-	-	-	-	-
48	44	40	36	32	28	28	24	24	20	20	18
-	-	-	-	-	-	16	14	12	12	10	-

Size

5/8

3/4

7/8

1-1/8

1-1/4

1-3/8

1-1/2

1-5/8

1-3/4

1-7/8

d	Nominal Dia
PP	UNC
	8UN
	UNF
	Acme

0.6250	0.7500	0.8750	1.0000	1.1250	1.2500	1.3750	1.5000	1.6250	1.7500	1.8750	2.0000
11	10	9	8	7	7	6	6	-	5	-	4.5
-	-	-	-	8	8	8	8	8	8	8	8
18	16	14	14	12	12	12	12	-	-	-	-
8	6	6	5	5	5	4	4	-	4	-	4

Size

2-1/4

2-1/2

2-3/4

3-1/4

3-1/2

3-3/4

4-1/2

d	Nominal
PP	UNC
	8UN
	UNF
	Acme

2.2500	2.5000	2.7500	3.0000	3.2500	3.5000	3.7500	4.0000	4.5000	5.0000
4.5	4	4	4	4	4	4	4	-	-
8	8	8	8	8	8	8	8	-	-
-	-	-	-	-	-	-	-	-	-
3	3	3	2	-	2	-	2	2	2

Detail description

Please let us know the diameter, length, quantity, even unit weight if you have, so that we could offer the best quotation.

Thread Stud. The fixed link function is used to connect the machinery. The double bolts are threaded at both ends, and the middle screw is thick and thin. Generally used in mining machinery, bridge, automobile, motorcycle, boiler steel structure, hanging tower, long-span steel structure and large buildings.

1, It is mostly used in the main body of large equipment, need to install accessories, such as mirror, mechanical seal seat, reducer frame, etc. At this time, the use of double-headed bolts, one end of the screw into the main body, the installation of the attachment after the other end with a nut, because the attachment is often removed, the thread will be worn or damaged, the use of double-headed bolts replacement will be very convenient. 2. When the thickness of the connecting body is very large and the bolt length is very long, double-headed bolts will be used. 3. It is used to connect thick plates and places that are inconvenient to use hex bolts, such as concrete roof truss, roof beam hanging monorail beam hanging parts, etc.
