Cold Cathode Germicidal Lamps
U-shaped Cold Cathode Germicidal Lamps (GCU):
| OD (mm) | Length (mm) | Lamp Current (mA) | Lamp Volts (V) | Lamp Watts(W) | UV Output at lamp surface(μw/cm²) | Life (h) | |||
| 4, 5, or 6 | 40~60 | 2~5 | 200~300 | 0.8~1.5 | 8000 | 15000 | |||
| 80~100 | 2~5 | 300~450 | 1.5~2.0 | 8000 | 15000 | ||||
| 120~150 | 3~5 | 450~600 | 2.0~3.0 | 8000 | 15000 | ||||
| 200~250 | 4~6 | 600~850 | 3.0~4.0 | 8000 | 15000 | ||||
| * Customized lamps to your needs | |||||||||

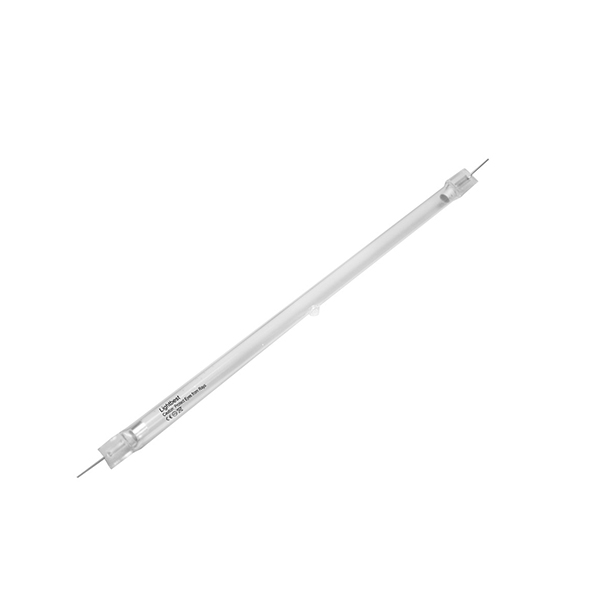

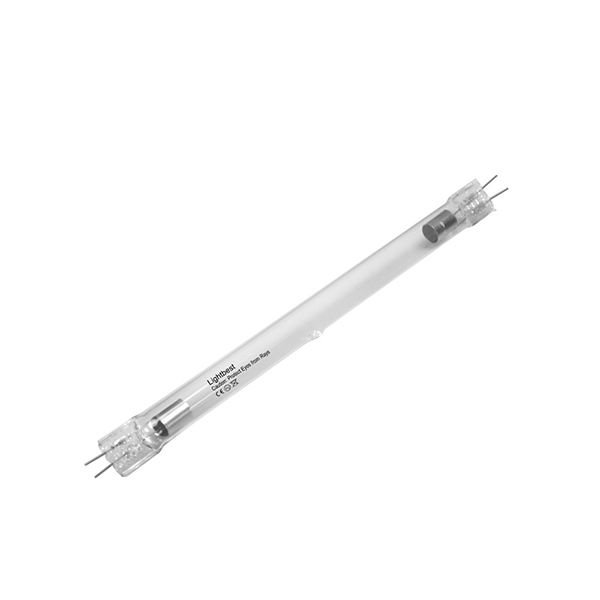

Linear Cold Cathode UV Lamps (GCL):
| Linear Cold Cathode UV Lamps (GCL): | RoHS | ||||||||
| OD (mm) | Length (mm) | Operation Current (mA) | Operation Volts (V) | Watts (W) | UV Output at lamp surface(μw/cm²) | Life (h) | |||
| 4, 5, 6, 9, 12 | 45~60 | 4~5 | 150~250 | 0.6~1.2 | >3000 | 15000 | |||
| 80~100 | 4~5 | 250~300 | 1.0~1.5 | >3000 | 15000 | ||||
| 120~180 | 4~5 | 300~400 | 1.5~2.0 | >3000 | 15000 | ||||
| 200~300 | 4~6 | 400~600 | 2.0~2.5 | >3000 | 15000 | ||||
| 300~400 | 4.5~6 | 600~800 | 2.5~3.5 | >3000 | 15000 | ||||
| * Customized lamps to your needs | |||||||||
The cold cathode lamp has a small structure design, long life and low power. It can emit 254nm (no ozone type), or 254nm and 185nm (high ozone type) ultraviolet light to kill microorganisms. Therefore, this lamp is mainly used in small appliances such as toothbrush sterilizers, beauty brush sterilizers, mite removers, disinfection cabinets, air purifiers, portable UV germicidal lamps, car disinfection, shoe deodorization, vacuum cleaners, etc. It only takes a few minutes sterilization process.
There are usually two types that are widely used, linear lamps (GCL) and U-shaped lamps (GCU)
