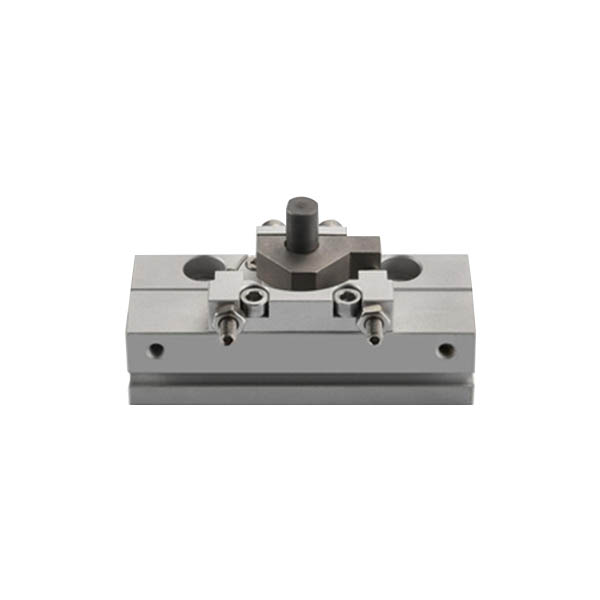

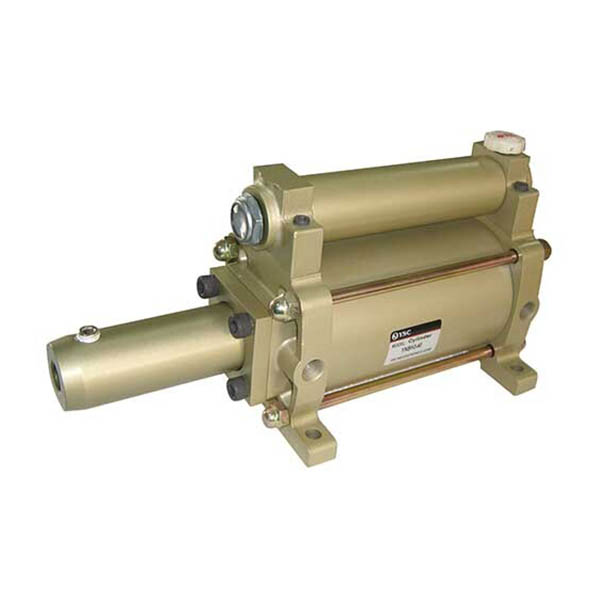

Compact constant rotary cylinder YMKAWC
Application
Rotary cylinder is mainly used in printing (tension control), semiconductor (spot welding machine, chip grinding.
The structure is to combine the action of two rotary cylinders into one, and the blade type swing driver can do two-stage and three-stage rotation.
| Bore(mm) | 32 |
| Fluid | Clean Air |
| Press.range | 0.15-0.95MPa |
| Action | Double Acting |
| Amb.&Media Temp. | 0-60℃ |
| Cushion | Rubber |
| Lubrication*① | Non-Lube |
| Rotation Angle | 90◦±2◦ |
| Rotation Stroke | |
| Rotation Direction | L: Clockwise |
| Theoretical Clamp②(N) | 345 |
| Allowable Torque③(N*m) | 27 |
| Clamping Stroke (mm) | 5 |
| Pipe Size(Rc) | M5*0.8 |
| Autio Switch | A72K, A92K |
| ①Please use Turbine Oil 1st-grade ISOVG32#.if Required. | |
Due to its complex structure and working mode, the rotating cylinder is often unfamiliar to everyone, so there are many questions about the selection of cylinder products. Hereby, I would like to share.
The rotating cylinder is a pneumatic actuator that USES compressed air to drive the output shaft to make reciprocating rotary motion within a certain Angle range.It is used for object pulling, clamping, valve opening and closing and robot arm action, etc. The rotating cylinder is divided into two categories according to its internal structure: rack and pinion type and blade type.
From the appearance action can be divided into no stroke center Angle rotation and rotation with simultaneous pressure rise stroke.
Plane rotation is an Angle rotation based on a central point. Common rotating cylinders include MSQB, CR1A and CRQB. The rotation Angle ranges from 1 to 180 degrees with a maximum of 190 degrees.By adjusting the screw rotation Angle control, can also install the buffer, the operation is more stable.
