container transport semi truck

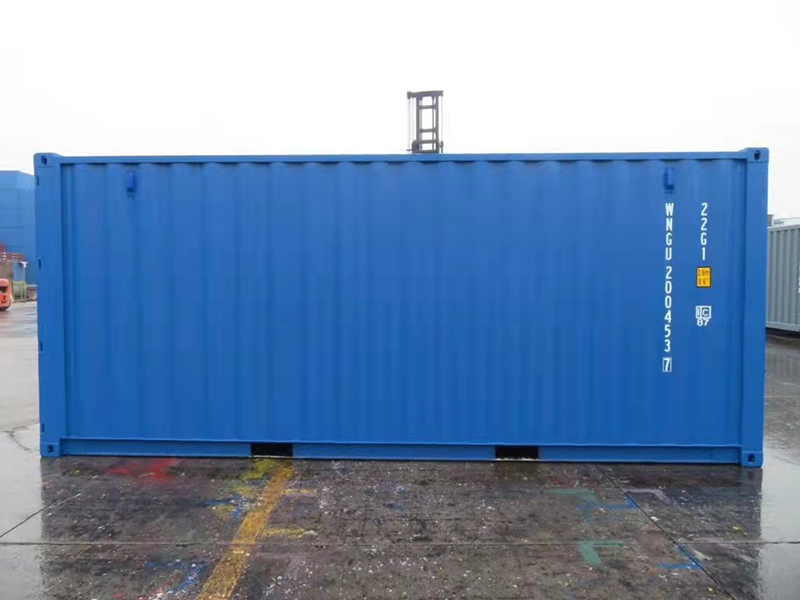

Types of Containers
The vehicle is used to transport 40 foot containers or non-dangerous tank containers. The total height of the frame at the traction pin of the container transportation semi-trailer is 140,150,160,180,200 mm, and the rear protection structure is selected. The air suspension is selected, and the closed or semi-closed fender and plastic mud retaining tile are selected. Wheelbase 7442+1310+1310 rear suspension 1440, wheelbase 7347+1310+1310 rear suspension 1760, wheelbase 7150+1310+1310 rear blast 1820, side and rear lower protection device material :Q235, are welded connection, Rear protective device section size width and height (mm)50×140, ground height :500mm, ABS system controller model CM2XL-4S/2K,.
The big frame punching and flapping has been awarded the national patent No. :201520024006.2, and the tail sign board has been installed. The model is :CWB-2. Optional side style; Optional front style; Optional rear style; Select girder special hole style
Vehicle technical parameters
| Announcement of the batch | 344[change] |
| Product name | MSC9402TJZG container transport semi truck |
| Boundary dimension | 12527*2470,2550*1500,1600 |
| Parking case size | ×× |
| Tatal mass | 39900 |
| Rated contained mass | 353,003,510,034,900 |
| Curb weight | 460,048,005,000 |
| Rated passenger | |
| The front passenger | |
|
Chassis and engine |
|
| Chassis models | |
| Number of axles | 3 |
| Spread of axles | 7442+1310+1310,7347+1310+1310,7150+1310+1310 |
| Number of tires | 12 |
| Tyre size | 11.00R20 12PR，11R22.5，12PR，12R22.5 |
| Fuel type | |
| Emission standard | |
| Engine type | manufacturing enterprise displacement/rate of work/full throttle |
