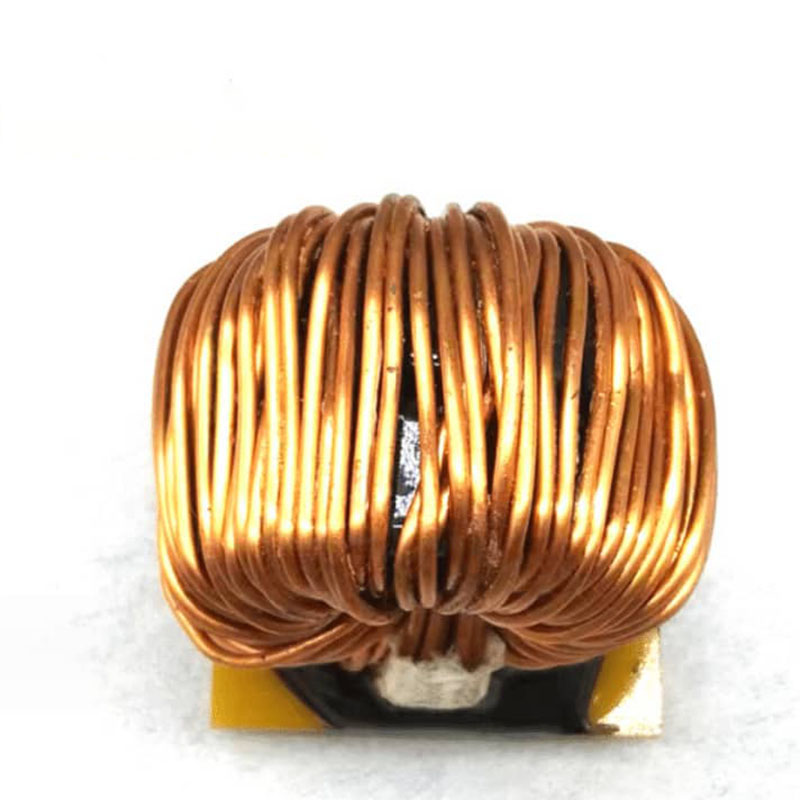

customized high current toroidal power inductor
1. MODEL NO: MS0630-220M
2. Size: please see the details as below
| CUSTOMER | MODEL NO. | MS0630-220M | REVISION | A/0 | ||
| FILE NO. | PART NO. | DATE | 2023-3-27 | |||
| 1.PRODUCT DIMENSION | UNIT:mm | |||||
| A | 7.15±0.35 | |||||
| B | 6.6±0.2 | |||||
| C | 3.0 Max | |||||
| D | 3.0±0.5 | |||||
| E | 1.5±0.5 | |||||
2. ELECTRICAL REQUIREMENTS
| PARAMETER | SPECIFICATION | CONDITION | TEST INSTRUMENTS |
| L(uH) | 22.0μH±20% | 100KHz/1.0V | MICROTEST 6377 |
| DCR(mΩ) | 189mΩMAX | At 25℃ | TH2512A |
| I sat(A) | 3.1A TYP L0A*70% | 100KHz/1.0V | MICROTEST 6377+6220 |
| I rms(A) | 1.5A TYP △T≤40℃ | 100KHz/1.0V | MICROTEST 6377+6220 |
3. CHARACTERISTICS
(1). All test data is based on 25℃ ambient.
(2). DC current(A)that will cause an approximate △T40℃
(3). DC current(A)that will cause L0 to drop approximately 30%Typ
(4). Operating temperature range: -55℃~+125℃
(5).The part temperature (ambient + temp rise)should not exceed 125℃ under worst case operating conditions. circuit design, component.PWB trace size and thickness,airflow and other cooling provision all affect the part temperature. Part temperature should be verified in the den application
SPECIAL REQUEST

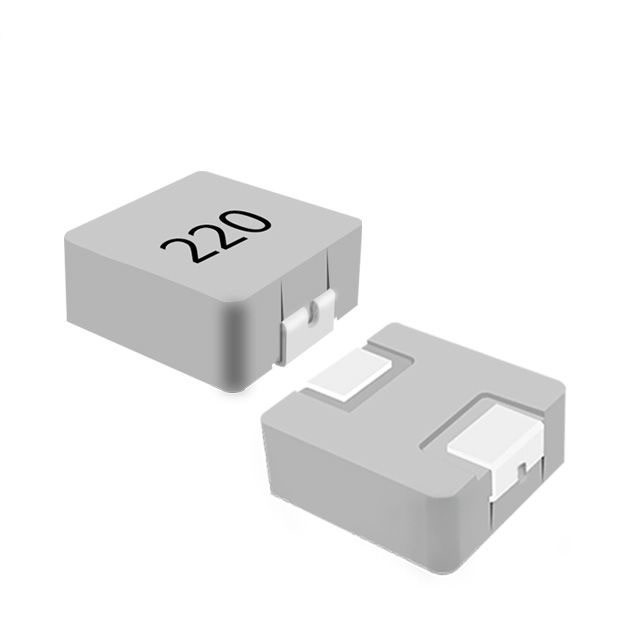

(1) Lettering 220 on top of the body
(2) also can print your logo/ request accordingly
Application
(1)Low profile,high current power supplies.
(2)Battery powered devices.
(3)DC/DC converters in distributed power systems.
(4)DC/DC converters for field programmable gate array.
Features
(1)ROHS compliant.
(2)Super low resistance,ultra high current rating.
(3)high performance(I sat)realized by metal dust core.
(4)Frequency Range:up to 1MHZ.
| CUSTOMER | MODEL NO. | MS0630-220M | REVISION | A/0 | ||||||
| FILE NO. | PART NO. | DATE | 2023-3-27 | |||||||
| SORT | ITEM | A | B | C | D | E | ||||
| PRODUCT& DIMENSION | SPEC | 7.15±0.35 | 6.6±0.2 | 3.0 Max | 3.0±0.5 | 1.5±0.5 | ||||
| 1 | 7.19 | 6.65 | 2.86 | 2.92 | 1.54 | |||||
| 2 | 7.20 | 6.65 | 2.87 | 2.93 | 1.56 | |||||
| 3 | 7.19 | 6.64 | 2.89 | 2.92 | 1.55 | |||||
| 4 | 7.18 | 6.65 | 2.87 | 2.92 | 1.57 | |||||
| 5 | 7.21 | 6.64 | 2.86 | 2.92 | 1.55 | |||||
| X | 7.19 | 6.65 | 2.87 | 2.92 | 1.55 | |||||
| R | 0.03 | 0.01 | 0.03 | 0.01 | 0.03 | |||||
| ELECTRICAL& REQUIREMENTS | ITEM | L(μH) | DCR( mΩ) | I sat(A) | DC BIAS | Irms | SHAPE: | |||
| SPEC | 22.0μH±20% | 189mΩ MAX | 3.1A TYP L0A*70% | 1.5A TYP ΔT≤40℃ | ||||||
Packaging Details
1. Tape and Reel Packing, 100pcs/reel,3000pcs/inner box , 9000pcs / outer box
3. Putting the air bubble bag products placed inside the box, sealed. (Bubble bag: 37*45cm), outside the box bottom will be sealed, inner box into the box.
4. Customized Packaging is available.
