Dredging Discharge Hose with Sandwich Flange
Discharge Hose with Sandwich Flange
The dredge hose we provide is of complete reliability and safety which can withstand extreme working conditions. The higher working pressure,wear-resistant and flexible are the most important factors for discharge hose. In the actual production of kinds we can manufacture any kind of custom hose.

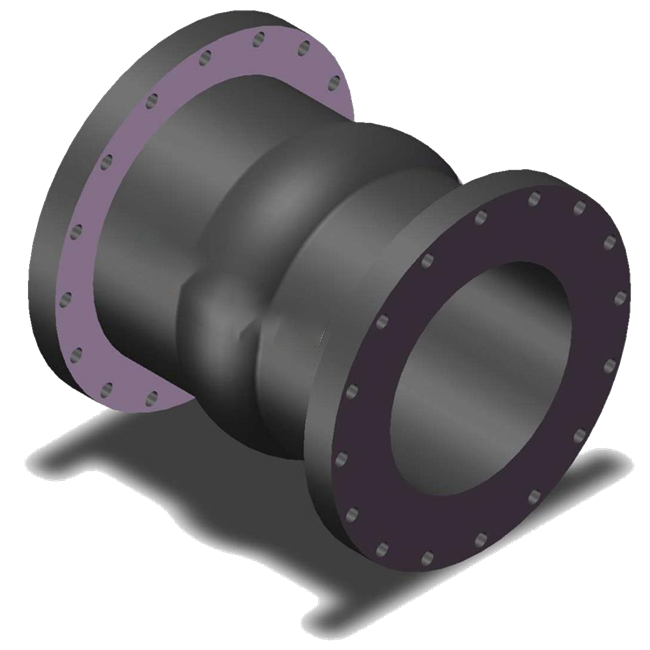

The discharge hose with sandwich flange is the most commonly dredging hose and can connect with steel pipe and HDPE pipe. This kind sandwich flange discharge hose is more flexible than discharge hose with steel flange. So some user choose this kind hose in their special dredging project. We can manufacture different inner diameter and length according to customer requirements.
DIMENSION
1, Inner diameter/ID:100~1100mm
2, Length/L:1000~11800mm
3, Flange size:PN 10,PN 16,PN 25 or customized
Note: Other size available on request.
CONSTRUCTION
1, Inner wear layer: Black,wear and corrosion resistant mixing natural rubber and Wear warning tape
2, Reinforcement layer: High tensile textile layer
3, Outer cover layer: Back,weather and abrasion resistance natural rubber and Warning tape
4, Flange: Natural rubber,steel plate and tensile textile layer
5, Marking: East Dredging or customer’s logo
TECHNICAL DATA
1, Temperature(℃): -20~50
2, Working Pressure/WP(Mpa): 0.5~2.5
3, Burst Pressure/BP(Mpa): 1.5~7.5
Note: Other technical data available on request.
INSPECTION & CERTIFICATES
We use modern technology to design and manufacture, and through rigorous field testing.
The following tests are to be conducted:
-Raw material test including natural rubber,tensile textile,rubber additive(inspection before entering warehouse)
-Hose dimension check including flange size and length
-Weight check
-Working pressure test(if specified,sampling)
-Bending test(if specified)
Our QC department will inspect each product and offer FACTORY INSPECTION REPORT before delivery. We can also invite the third party inspection agency to inspect according to customer requirements. The usual inspection agency include Classification Society of China(CCS),Norway-German(DNV-GL),United Stats(ABS),United Kingdom(LR) and France(BV).
PACKING and DELIVERY
Advantage: professional,efficient,economical and environmental
Duo to our products are large size and heaviness,normal we do not use packaging during shipping in order to reduce costs. So the professional packing skills are crucial,not only it need to protect our products,but also need to protect the containers,vehicles and personnel. Our core strength comes from years of work experience and a responsible attitude.
APPLICATIONS
Depending on the function,there are two kind dredging hose,one kind is discharge hose and the other kind is suction hose. Duo to the continuous development of dredging vessel,Trailing Suction Hopper Dredger(TSHD) and Cutter Suction Dredger(CSD) are the mainly dredgers in the world. Duo to complex construction conditions including coral,reef rock,granite and others,the armored discharge hose effectively solves these problems.The floating hose provide installation efficiency and reduces the impact of wind and waves on the offshore projects.
