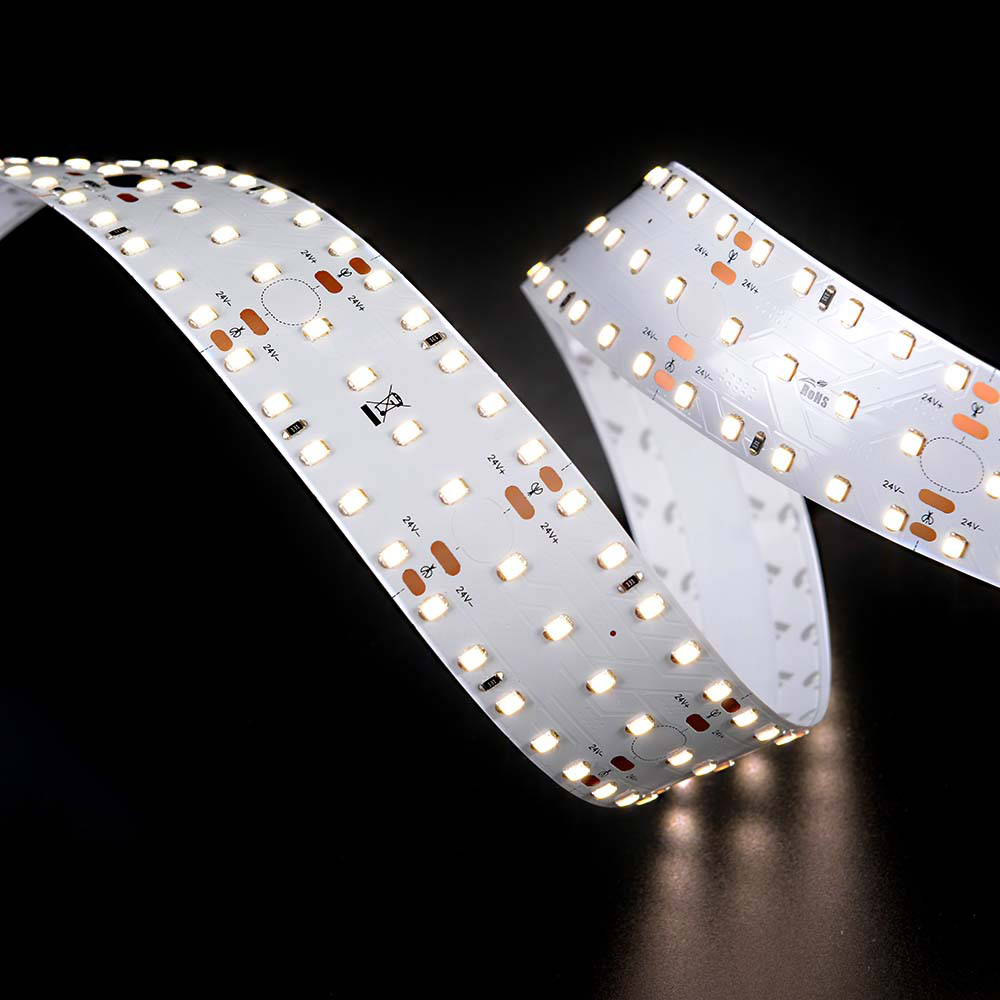

ECS-C280-24V-34mm FPC LED Strip Light SMD2835

Short Description:



Basic parametersSize5000×34×1.5mmLeds/m280LEDs/mCutting unit14LEDs/50mmInput voltage24VDCInput current1.37A/m&6.88A/2.5mTyp.power30W/mMax.power33W/mBeam angle120°Copper foil2OZ


Product Detail

Product Tags

Brief Introduction

We have more than 30 high speed automatic encapsulation pipelines and 15 automatic mounting and applied welding pipelines, characterizing complete LED strip production processes, such as LED encapsulation, high speed SMT, automatic welding, and full series of waterproof, with average monthly production capacity of 1.2 million meters of led strip. Set up new modern luminaries manufacturing factories so as to realize a whole chain of strip light production processes including precision machining, automatic assembly, color spraying and free customization, with average monthly production capacity of 120,000 pcs, in order to deliver high-quality and cost-effective best led strip lights to customers.
The following form is to help you to select the suitable LED strip light as to meet your different requirements.

CCT

Typical Applications

Optimum Irradiated Articles

CCT

Typical Applications

Optimum Irradiated Articles

1700K

Ancient Building

4000K

Market

Clothing

1900K

Club

Antique

4200K

Supermarket

Fruit

2300K

Museum

Bread

5000K

Office

Ceramics

2500K

Hotel

Gold

5700K

Shopping

Silverwares

2700K

Homestay

Solid Wood

6200K

Industrial

Jade

3000K

Household

Leather

7500K

Bathroom

Glass

3500K

Shop

Phone

10000K

Aquarium

Diamond

Basic Parameters

Model Size Input Current Typ.Power Max.Power Beam Angle Copper Foil
ECS-C280-24V-34mm (SMD2835) 5000×34×1.5mm 1.37A/m&6.88A/2.5m 30W/m 33W/m 120° 2OZ

Note:

1. The above data is based on the testing result of 1 meter standard product.

2. The power and lumens of output data can be varied up to ±10%.

3. The above parameters are all typical values.

Products Specification

Model LEDs/m DC(v) Preview Cutting Unit
(leds/mm)
Power
(w/m)
FPC Width
(mm)
Warranty
(year)
ECS-C280-24V-34mm (SMD2835) 280 24 14/50 24 34 5

CCT/Color Options

IP Process Options

Applications:

1. Interior design, such as decoration of home, hotel, KTV, bar, disco, club etc.

2. Architectural design, such as decorative lighting of buildings, edge lighting decoration etc.

3. Advertisement project, such as outdoor illuminated signs, billboard decoration etc.

4. Display design, such as decoration of drinks cabinet, shoe cabinet, jewelry counter etc.

5. Underwater lighting engineering, such as decoration of fish tank, aquarium, fountain etc.

6. Car decoration, such as motorcar chassis, inside and outside of car, high brake decoration etc.

7. City beautification, landscape design, holiday decoration and so on.

Installation Instructions

Warning:

1. Supply voltage of this product is DC24V; never connect to other higher voltage.

2. Never connect two wires directly in case of short circuit.

3. Lead wire should be connected correctly according to colors that connecting diagram offers.

4. Warranty of this product is one year, in this period we guarantee replacement or repairing without charges, but exclude the artificial situation of damage or overload working.

Precautions

※ Please drive the led strip with required isolated power, and the ripple of the constant voltage source should be less than 5%.

※ Please do not bend the strip into an arc with a diameter less than 60mm to ensure the longevity and reliability.

※ Do not fold it in case any damage of LED beads.

※ Do not pull the power wire hard to ensure the longevity. Any Crash may damage the LED light is prohibited.

※ Please make sure the wire is connected to the anode and cathode correctly. The power output should be consistent with the voltage of the strip to avoid damage.

※ LED lights should be stored in dry, sealed environment. Please only unpack it before usage. Ambient temperature: -25℃~40℃.

Storage temperature: 0℃~60℃.Please use the strips without waterproof within indoor environment with humidity less than 70%.

※ Please be careful during operation. Do not touch the AC power supply in case of electric shock.

※ Please leave at least 20% power for the power supply during using to ensure there is enough power supply to drive the product.

※ Do not use any acid or alkaline adhesives to fix the product (e.g.: glass cement).
