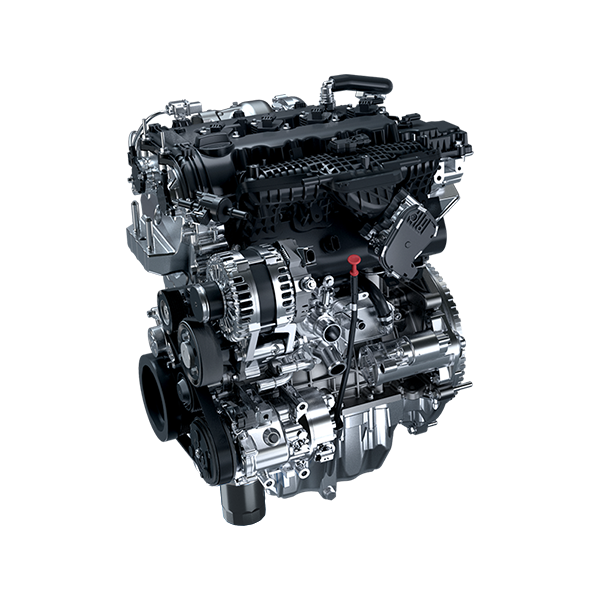

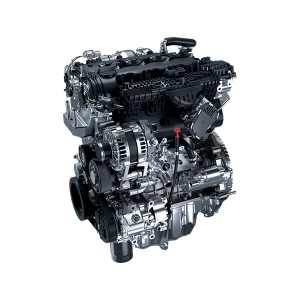

F4J20

Short Description:

China Best Top Ten Engines 2021

TGDI, Miller Cycle

Double balance shaft


Product Detail

Product Tags

TECHNICAL PARAMETER

  • Displacement (L)

    1.998

  • Bore x Stroke (mm)

    80.5×98

  • Compression Ratio

    10.2:1

  • Max. Net Power /Speed (kW/rpm)

    180/5500

  • Max. Net Torque /Speed (Nm/rpm)

    375/1750–4000

  • Specific Power (kW/L)

    93.5

  • Dimension (mm)

    600x625x690

  • Weight (kg)

    137

  • Emission

    CN6b

01 Key Technologies

350bar Ultra-high Pressure Direct Injection System, the Third Generation Intelligent Combustion System, X-shaped Double Shaft Balance System, Pendulum Dual-Mass Flywheel, Miller cycle.

02 Extreme Performance

The power output of 390Nm drives the vehicle to achieve a 0-100 km/h acceleration time within 6 seconds, and the comprehensive fuel consumption per 100km is 6.8L. A large number of NVH solutions allow the cockpit to have a 61.8dBA deep-sea driving environment; completely independent forward development and lightweight technology create the engine Extreme weight of 137kg.

03 Energy Saving and Environmental Protection

This engine model is created with super power and ultra-low fuel consumption for customers, which fully meets the fuel consumption and emission regulations of the third stage.

04 Reliability and Durability

More than 15000 hours of engine bench test verification, which is equivalent to 10 + years of user experience; vehicle environment adaptability development footprints are all over the world covering extreme environments, like from extreme cold to extreme heat, from plain to plateau. And the durability and reliability of the vehicle has been verified to exceed 2million kilometers.
