Features
- Max 16 ON & 16 OFF commands daily.
- Single Switching Day and groups of days use one command. (Max 112 ON & 112 OFF commands per week)
- 1 minute ~ 7 days timing range.
- 12 / 24hour clock format
- Summer time (DST)
- Manual / timed / random / countdown switch operations
- Various cycles: Single day: MO / TU / WE / TH / FR / SA / SU
Every day: MO, TU, WE, TH, FR, SA, SU
Work day: MO, TU, WE, TH, FR
Weekend: SA, SU
Exclude Sunday: MO, TU, WE, TH, FR, SA
Other cycles: MO, WE, FR. -> TU, TH, SA. -> MO, TU, WE. ->
TH, FR, SA. -> MO, WE, FR, SU

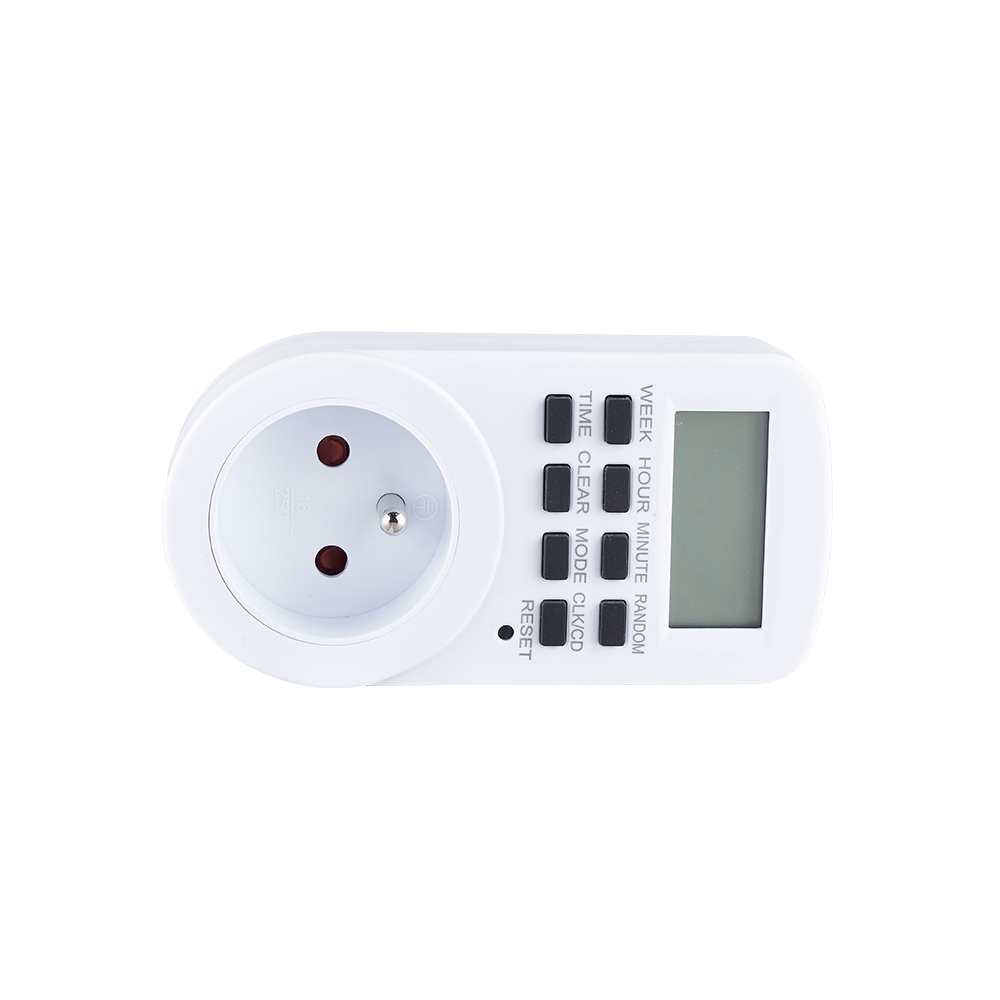

Keyborad
1.1 RESET: Clear all data in memory including current time and all programs.
1.2 RANDOM: Set or cancel random function.
1.3 RST/RCL: Override programs or recall the overridden programs.
1.4 CLK/CD: Set current time combined with buttons WEEK, HOUR, MIN. Select 12 or
24 hour mode combined with button TIMER. Activate summertime function
combined with button MODE. Press CD button to start or cancel countdown.
1.5 TIME: Set programs combined with buttons WEEK, HOUR, MIN. Select 12 or 24 hour mode combined with button CLK/CD. When pause countdown, back to set mode, then set countdown with buttons WEEK, HOUR, MIN.
1.6 MODE: Select operating modes of timer. When set countdown, switch on / off countdown.
1.7 WEEK: Set week combined with button CLK/CD or TIME.
1.8 HOUR: Set hour combined with button CLK/CD or TIME.
1.9 MIN: Set minute combined with button CLK/CD or TIME.
1.10 Press and hold buttons, speed setting to 8 times per second.
1.11 Combination buttons: CLK/CD + RST/RCL to countdown mode, CLK/CD + TIME to choose 12 or 24 hours mode, CLK/CD + MODE to start or cancel summer time.

Initial operation
2.1Plug the timer into a regular rated power outlet and turn the power on. Leave for approximately 14 hours to charge the Memory Back-up battery.
2.2Clear all current information by pressing RESET button with a sharp object such as a pen or pencil after charging.
2.3The timer is now ready to be set up for use.

Set clock
Press and hold CLOCK button, and press WEEK button to set day, then press
HOUR button to set hour, press MINUTE button to set minute. Release Clock button when get correct time.

Set On/Off Switching Times
4.1 Unplug the timer socket from mains power, press TIME button to enter the timing
set mode.
4.2 Press WEEK button to cycle through and select day or group of days.
4.3 Press HOUR button to set hour. Press MINUTE button to set minute.
4.4 Press RST/RCL button to delete or restore the last setting.
4.5 Press TIME button again to move to the next command and repeat steps 3.2 – 3.4.
4.6 No button pressed for 15 seconds = exit setup. Pressing CLK/CD button can also
exit setup.
TIP: When verifying your programs ensure that the settings do not overlap, especially when using the block option. If there are program settings overlapping, the timer
ON or OFF will be executed according to program time, not by program number.
Program OFF has the priority over program ON. For example, set 1st switch on
program 12:00 Monday, also set 8th switch off program 12:00 Monday, and set 9th switch on program same time, when real time come to 12:00 Monday, this product will perform 8th switch off program.

Countdown
5.1 Press CLK/CD with RST/RCL buttons, screen shows SET/CD/ON, start to set countdown. Max countdown period 99 hours 59 minutes 59 seconds.
5.2 Press HOUR button to set hour, MINUTE button sets minute, WEEK button sets second.
5.3 During setting, press RST/RCL can erase setting, hold related button to speed set.
5.4 Press MODE to choose countdown switch on or off. Default set countdown off.
5.5 After set countdown, press CLK/CD to start countdown, screen doesn’t show SET.
5.6 When run countdown, press CLK/CD to pause countdown, press TIME to set countdown, screen show SET with countdown time same as last.
5.7 When set countdown on, product keeps normal on, once finish countdown time, then switch off.
5.8 When set countdown off, product keeps normal off, once finish countdown time, then switch on.
5.9 Both set countdown on and off, suggest set time in sequentially. For example, set countdown on 1:23:45, countdown 2:45:30. Start countdown on, after 1st period
1:23:45, switch off. After 2nd period 2:45:30, it starts 1st countdown on program, and continue this cycle.
