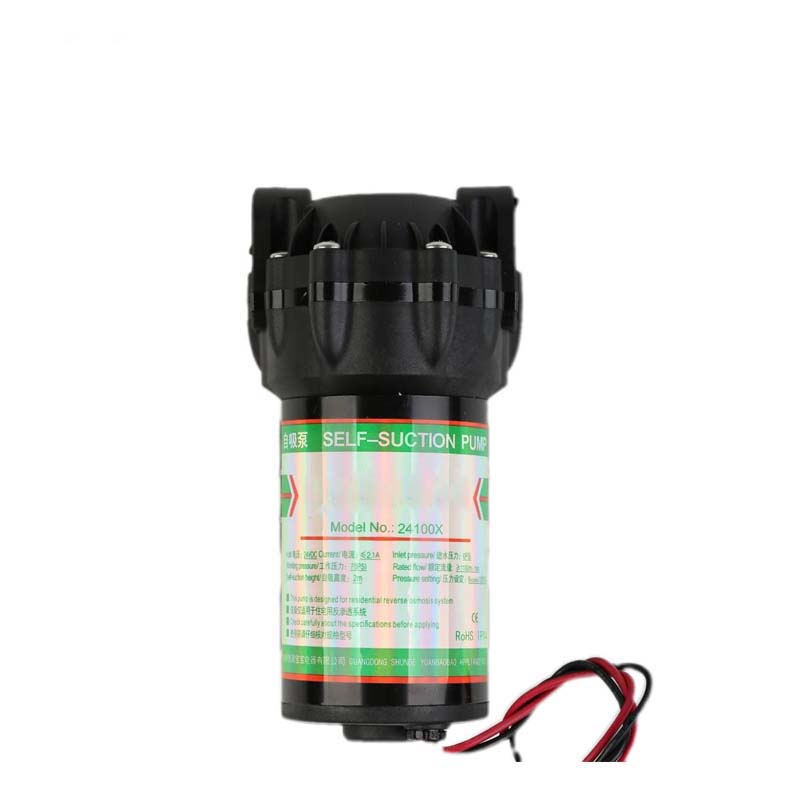

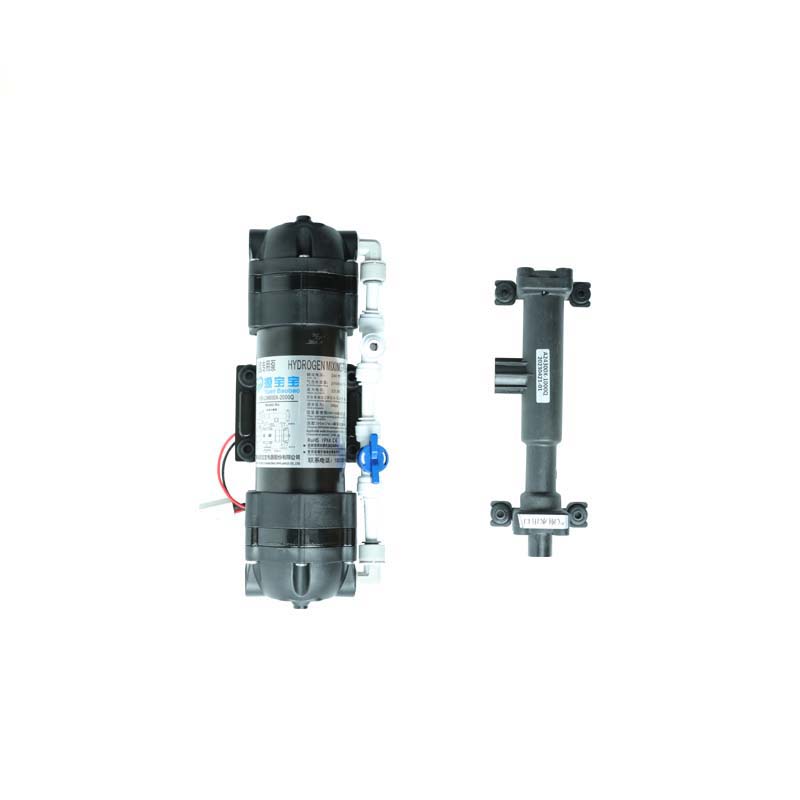

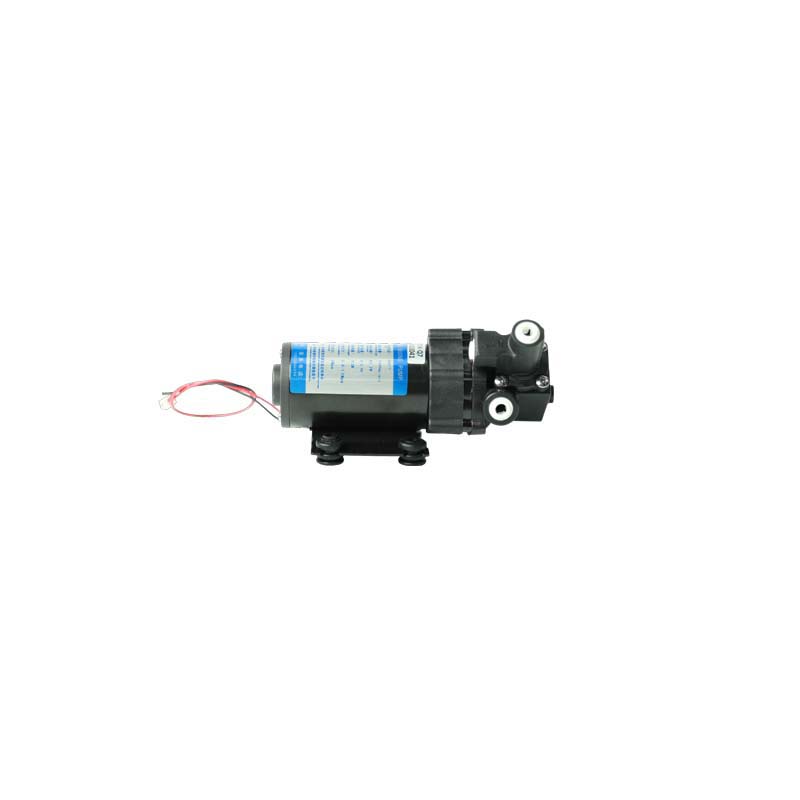

Gas-Liquid Mixing Diaphragm Reverse Osmosis Pump
Applications
The pump is commonly used in water treatment systems including RO systems, water purifiers and beverage dispensers. It can be used in various environments such as residences, offices, factories, and hospitals to improve water filtration efficiency.
Product Advantages
1. Superior performance: Gas-liquid mixing technology increases water flow and pressure, thereby improving filtration efficiency and removing impurities and pollutants in water.
2. High efficiency and energy saving: Diaphragm RO pump has low energy consumption, which is environmentally friendly and economical, and reduces electricity bills.
3. Automatic Shutoff: The pump has an automatic shutoff function to ensure that the system will not be overfilled or over pressurized.
4. Reliable and Durable: The pump is designed to be durable and reliable, ensuring long-lasting performance.
5. Low noise: the diaphragm pump runs quietly and the environment is quiet.
Features
1. Gas-liquid mixing technology: The pump adopts innovative gas-liquid mixing technology to generate higher water pressure, thereby improving filtration efficiency.
2. High Flow: The pump has a high flow capacity to ensure a steady water supply in high demand situations.
3. Self-priming ability: The pump has a self-priming ability up to 2 meters, which is very suitable for the situation where the water supply is located below the filtration system.
4. Easy to use and install: Diaphragm reverse osmosis pumps are easy to install and use, making them ideal for both residential and commercial applications. User-friendly interface, compact and convenient design.
5. Eco-friendly design: The pump is made of high-quality non-toxic materials to ensure the safe use of drinking water, and is designed with a high-efficiency motor to minimize the impact on the environment.
To sum up, the gas-liquid mixing diaphragm reverse osmosis pump is a top-class pump designed to improve water filtration efficiency while providing stable water pressure. With its innovative gas-liquid mixing technology, high flow, self-priming capability, easy installation, low noise, energy saving, automatic shut-off and eco-friendly design, this pump is an excellent choice for any commercial or residential environment.
Technical Parameters
|
Model |
Voltage（VDC） |
Inlet pressure（MPa） |
Max. current（A） |
Shutdown pressure（MPa） |
Hydrogen water flow （l/min） |
Working pressure（MPa） |
electrolytic cell（ml/min） |
|
YBB-D24075X-500Q |
24 |
0 |
≤2.5 |
0.8~1.1 |
≥0.4 |
0.5-0.7 |
50 |
|
YBB-A24300X-1000Q |
24 |
0 |
≤3.2 |
0.9~1.1 |
≥1 |
0.5-0.7 |
100-150 |
|
YBB-H24600X-1500Q |
24 |
0 |
≤3.5 |
0.9~1.1 |
≥1.5 |
0.5-0.7 |
150 |
|
YBB-L24800X-2000Q |
24 |
0 |
≤4.8 |
0.9~1.1 |
≥2 |
0.5-0.7 |
300 |
|
YBB-L24800X-3000Q |
24 |
0 |
≤5.5 |
0.9~1.1 |
≥3 |
0.5-0.7 |
300 |
