Ground Cemented Carbide Rods with Chamfer
Ground Cemented Carbide Rods with Chamfer
Cemented Carbide Rods are widely used to product high-quality solid carbide tools such as milling cutters(especially end mills), drills and reamers.
Our Carbide Rods offer wide range of grade, dimensions, features and capabilities. This kind of Tungsten Carbide Rods can apply from machining carbon steel through to composite materials, non-ferrous metals and on to the demanding requirements of heat-resistant alloys.
In addition, we can also provide you with rapid supply of the ideal product for your individual application.
Features of Ground Cemented Carbide Rods with Chamfer
High hardness, good strengthExcellent performance and good wear / corrosion resistanceSolid Carbide Rod Blanks, Ground Carbide Rods, Ground Carbide Rods with Chamfer and Customized are available.Ground to h6 diameter toleranceOEM/ODM, Customization is availableManufacturer supply, factory direct supply，nice priceISO 9001 certification
Recommend Grade of Cemented Carbide Rods
|
MY Grade |
JK10 |
MU06 |
MU25 |
MU30 |
MU35 |
MU40 |
|
|
Grace |
YG10 |
YG6X |
YG9X |
YG10X |
YG10X |
YG12X |
|
|
ISO Grace |
K30 |
K10 |
K05-K10 |
K30-K40 |
K30-K40 |
K40 |
|
|
Co |
% |
10 |
6.3 |
9 |
10 |
10 |
12 |
|
Grain Size |
μm |
0.8-1.0 |
0.6 |
0.3 |
0.7 |
0.6 |
0.4 |
|
Density |
G/m³ |
14.1 |
14.85 |
14.45 |
14.4 |
14.35 |
14.05 |
|
Hardness |
HRA |
93.5 |
93.8 |
93.5 |
91.8 |
92.2 |
92.6 |
|
HV30 |
1900 |
1950 |
1910 |
1580 |
1640 |
1710 |
|
|
T.R.S. |
Mpa |
3200 |
3600 |
3800 |
4000 |
4000 |
4200 |
Other grades please click here and we can also offered by customs’ requirements.

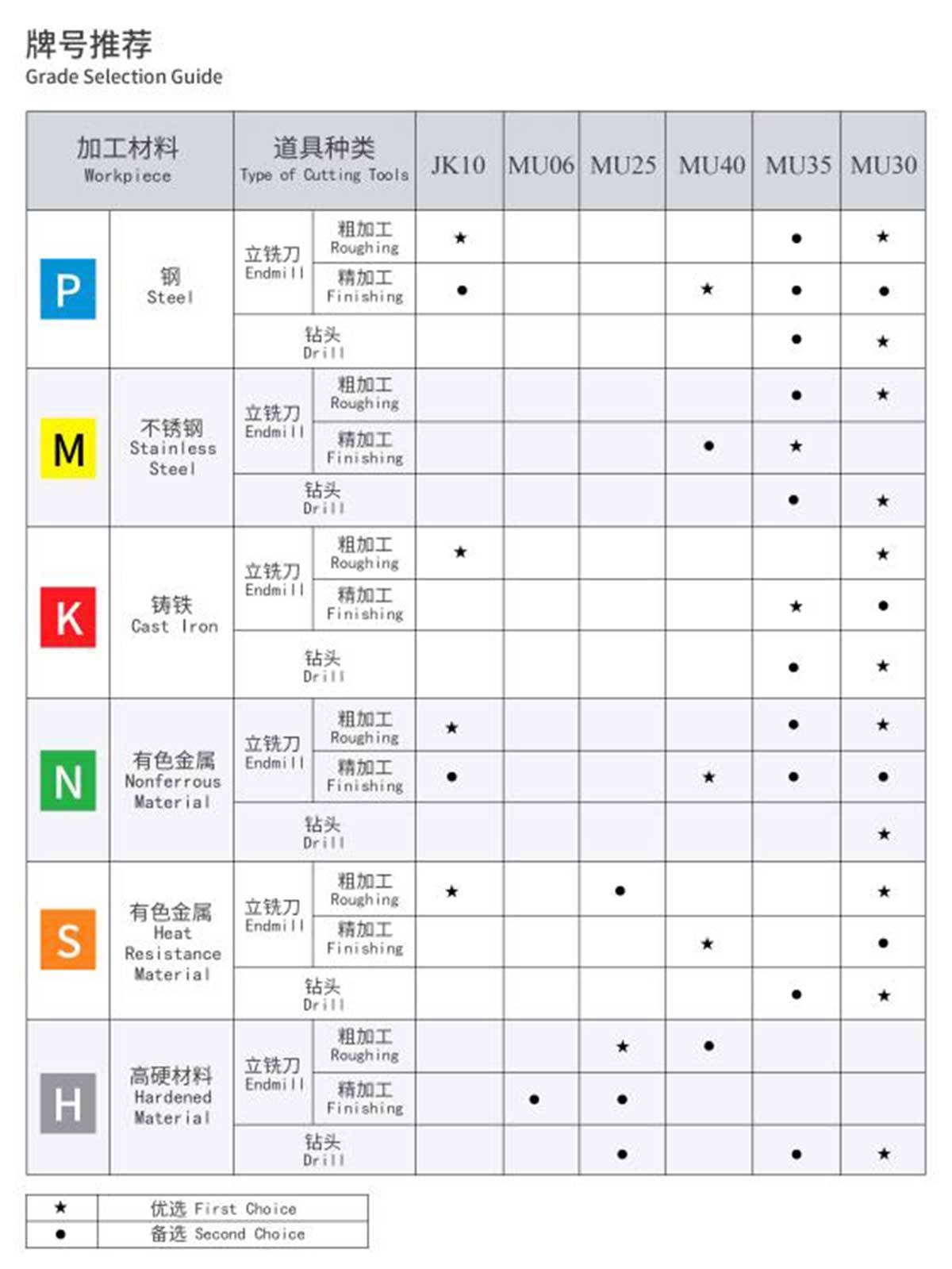

Grade Selection Guide of Cemented Carbide Rods

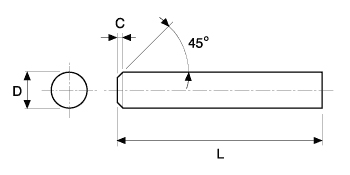

Dimension of Ground Cemented Carbide Rods with Chamfer
Standard is one side with chamfer and h6 service. Inch standard and customized are available.
All in mm
|
Diameter |
Tol.D |
Length (Tol:0, +1.0) |
Chamfer size (Tol:±0.1) |
Chamfer angle (Tol.±3°) |
|
3 |
h6 |
50 |
0.4 |
45° |
|
3 |
h6 |
100 |
0.4 |
45° |
|
3 |
h6 |
150 |
0.4 |
45° |
|
4 |
h6 |
50 |
0.4 |
45° |
|
4 |
h6 |
75 |
0.4 |
45° |
|
4 |
h6 |
100 |
0.4 |
45° |
|
4 |
h6 |
150 |
0.4 |
45° |
|
5 |
h6 |
50 |
0.5 |
45° |
|
5 |
h6 |
100 |
0.5 |
45° |
|
5 |
h6 |
150 |
0.5 |
45° |
|
6 |
h6 |
50 |
0.5 |
45° |
|
6 |
h6 |
75 |
0.5 |
45° |
|
6 |
h6 |
100 |
0.5 |
45° |
|
6 |
h6 |
150 |
0.5 |
45° |
|
8 |
h6 |
75 |
0.6 |
45° |
|
8 |
h6 |
100 |
0.6 |
45° |
|
8 |
h6 |
150 |
0.6 |
45° |
|
10 |
h6 |
75 |
0.6 |
45° |
|
10 |
h6 |
100 |
0.6 |
45° |
|
10 |
h6 |
150 |
0.6 |
45° |
|
12 |
h6 |
75 |
0.8 |
45° |
|
12 |
h6 |
100 |
0.8 |
45° |
|
12 |
h6 |
150 |
0.8 |
45° |
|
14 |
h6 |
100 |
0.8 |
45° |
|
14 |
h6 |
150 |
0.8 |
45° |
|
16 |
h6 |
100 |
0.8 |
45° |
|
16 |
h6 |
150 |
0.8 |
45° |
|
18 |
h6 |
100 |
0.8 |
45° |
|
18 |
h6 |
150 |
0.8 |
45° |
|
20 |
h6 |
100 |
1.0 |
45° |
|
20 |
h6 |
150 |
1.0 |
45° |
|
22 |
h6 |
100 |
1.0 |
45° |
|
22 |
h6 |
150 |
1.0 |
45° |
