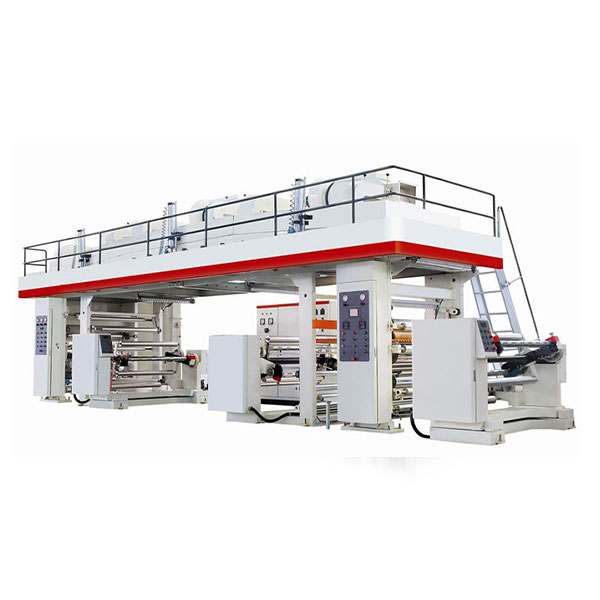

GSRF800-1800 Automatic Dry Laminating Machine
Technical specification(Based on 6 colors)
| Model | GF800 | GF1100 | GF1200 | GF1300 | GF1600 | GF1800 |
| Speed | 150-170m/min | |||||
| Max material width | 800mm | 1100mm | 1200mm | 1300mm | 1600mm | 1800mm |
| Unwind diameter | 600mm or customized | |||||
| Rewind diameter | 600mm or customized | |||||
| Oven length | 9m | |||||
| Power | 80kw | 90kw | 95kw | 100kw | 110kw | 120kw |
| Voltage | 380V 3P 50HZ or customized | |||||
| Weight | 8500kg | 9400kg | 9700kg | 10000kg | 11000kg | 12000kg |
01
2018-07-16
Unwind and rewind double station turret, automatic splicing and cutting which save material waste and no need to stop the machine for next laminating job, it can save much time to increase production efficiency.
01
2018-07-16
Each unwind with EPC control to make sure material is at right position during high speed running.
01
2018-07-16
Coating glue with anilox roller, controlled by inverter motor, pressing roller and doctor blade are pneumatic controlled.
01
2018-07-16
4 section heating oven open and close with air cylinder which is convenient for material threading, each pace oven temperature is Independently controlled.
01
2018-07-16
Ultrasonic EPC at oven exit is installed at oven exit to keep material at right position during speed running.
01
2018-07-16
Heating roller and pressing roller combined laminating part inverter motor control, heating roller with thermal oil inside to heat glue completely before laminating.
01
2018-07-16
Touch screen operation which is convenient, we can set speed, roll diameter, tension and automatic stop.
01
2018-07-16
The whole machine is controlled by PLC
01
2018-07-16
Laminting sample:
CPP+ PET+ Alu foil
01
2018-07-16
Window bag: Paper+ plastic film
01
2018-07-16
Pearlized film+ pet
01
2018-07-16
Diaper bag: PE+opp
