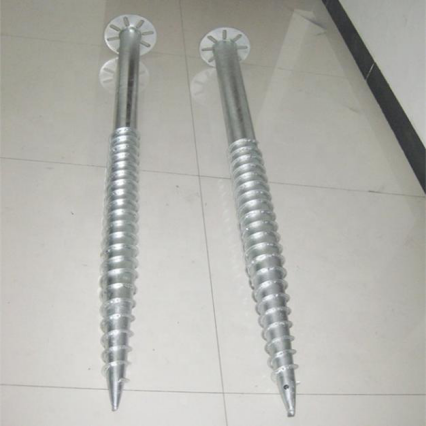

HDG Ground screw anchor/ screw piles /helical pile for ground mounting system
Ground sw, also known as helical piers, anchors, piles or sw piles, are deep foundation solutions used to secure new or repair existing foundations. Due to their design and ease to install, they are most commonly used whenever soil conditions prevent standard foundation solutions. Instead of requiring large excavation work, they thread into the ground. This minimizes installation time, requires little soil disturbance, and most importantly transfers the weight of the structure to load bearing soil.
| Name | Ground sw anchor/sw piles/helical piles |
| Material | Q235 steel |
| Pipe Diameter | 76mm, 89mm, 114mm |
| Wall thickness | 3.0mm, 3.75mm, 4mm,etc |
| Height | 800mm, 1000mm, 1200mm, 1500mm, 1600mm, 2000mm, 2500mm, 3000mm, etc |
| Finish | Hot dipped galvanized with average 80um |

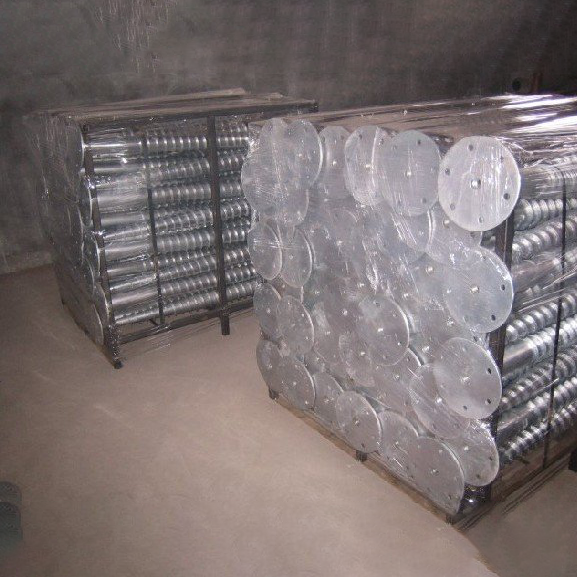

| Package | Iron pallet |
| Sample | Available, during 7-10 days |
| Characteristics | Flexible, Rust-proof, Good tension support |
* No dig, No conte pouring, wet trades, or landfill requirements.
* Anti-rust, corrosion resistent so that it can be used for a very long time and makes it effective.
* Significant reduction in installation time compared to conte foundation
* Safe and easy – speed and ease of installation, removal, and relocation – with minimum impact to the landscape.
* Consistent and reliable foundation performance
* Different ground sw heads to accommodate various post form.
* Reduced vibration and noise during installation.
* Ground sw made from fine carbon steel, and full welding on the connecting part.

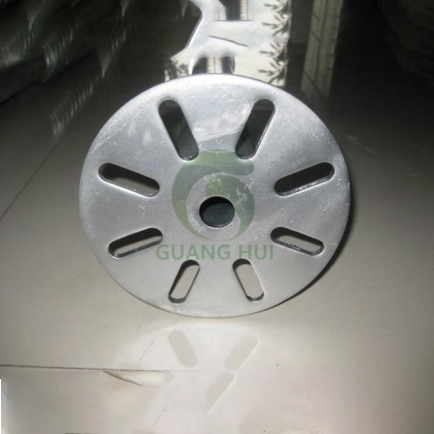

Our universal sw! The adapter sw has a mounting plate with a series of slots that allow for precise adjustment in several directions and is therefore suitable for structures requiring a great deal of accuracy. This model takes a wide range of attachments including the beam bracket, post bracket, plate and L-support which make it a very versatile support. There is almost nothing we cannot securely attach! This makes it ideal for a variety of structures such as living quarters on construction sites, sound dampening boards, greenhouses, solar cells and prefabricated houses. The adapter sw is available in two different designs.

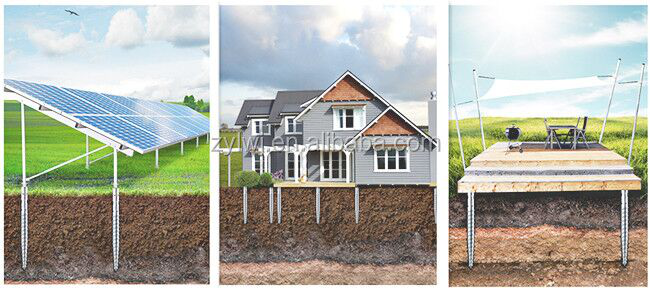

Our ground sws have a number of attachments for situations where a tailored approach is required. Using our cleverly designed accessories, our sws can be used, for example, to anchor fences, booths, flagpoles, sound dampening boards and solar panels in awkward, uneven and inaccessible terrain.
