China High Efficiency R/S/F/K Series Modular helical sew motoreductor 2hp Manufacturer and Supplier | TCT
English
High Efficiency R/S/F/K Series Modular helical sew motoreductor 2hp Featured Image
  • High Efficiency R/S/F/K Series Modular helical sew motoreductor 2hp
  • High Efficiency R/S/F/K Series Modular helical sew motoreductor 2hp
  • High Efficiency R/S/F/K Series Modular helical sew motoreductor 2hp
  • High Efficiency R/S/F/K Series Modular helical sew motoreductor 2hp
  • High Efficiency R/S/F/K Series Modular helical sew motoreductor 2hp
  • High Efficiency R/S/F/K Series Modular helical sew motoreductor 2hp

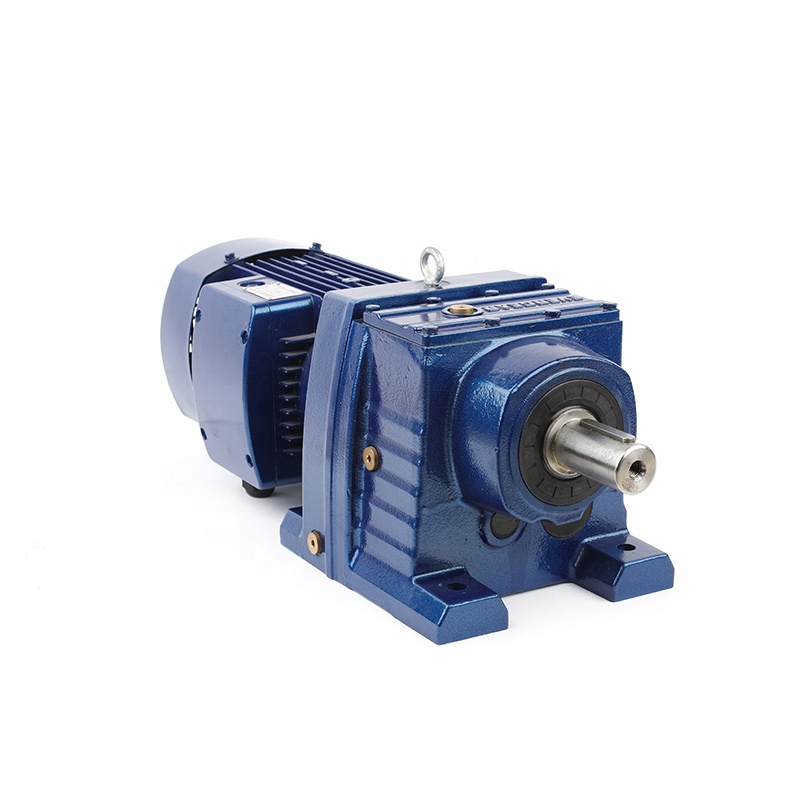

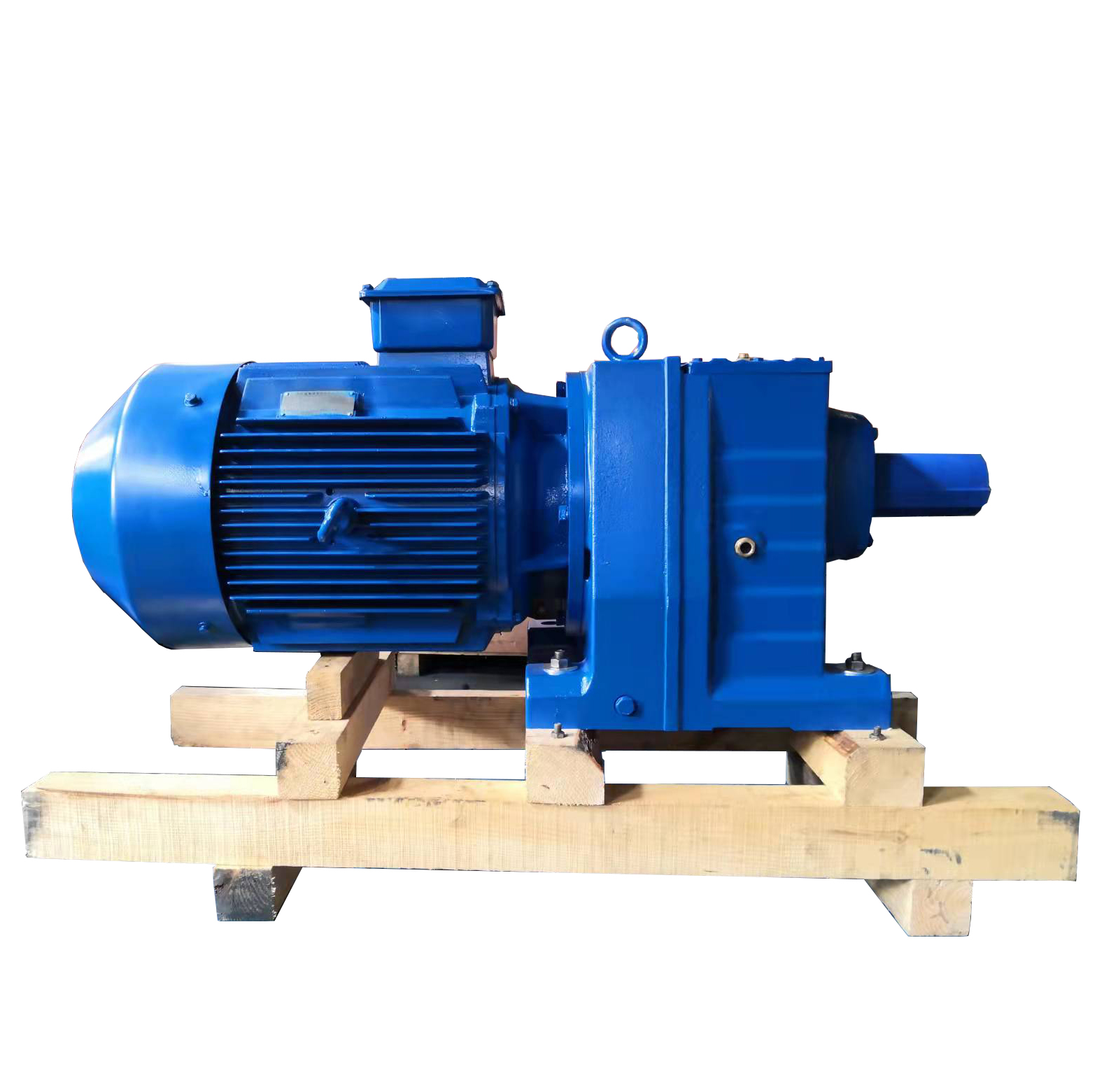

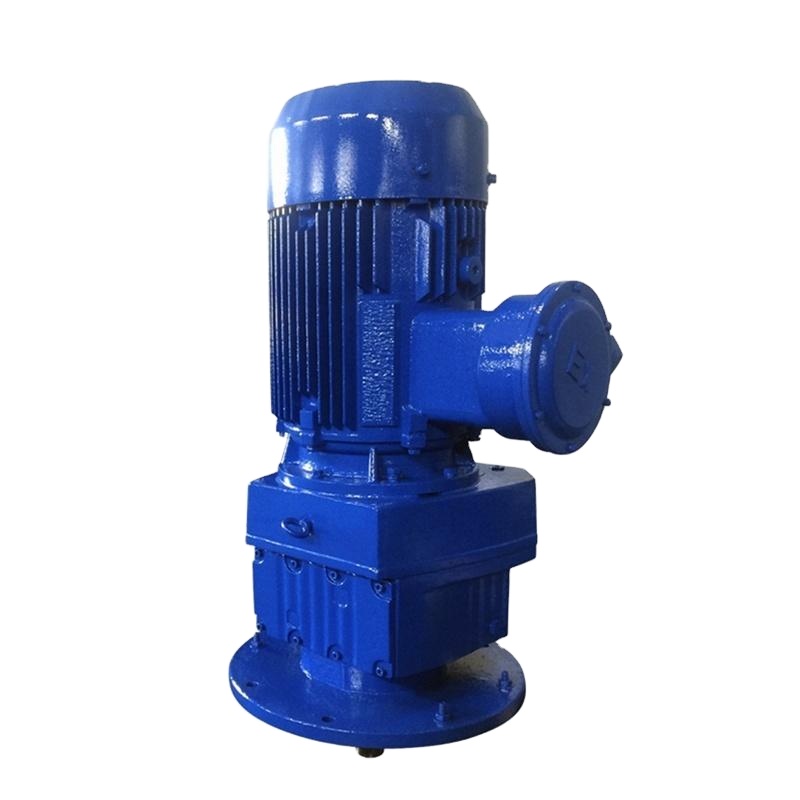

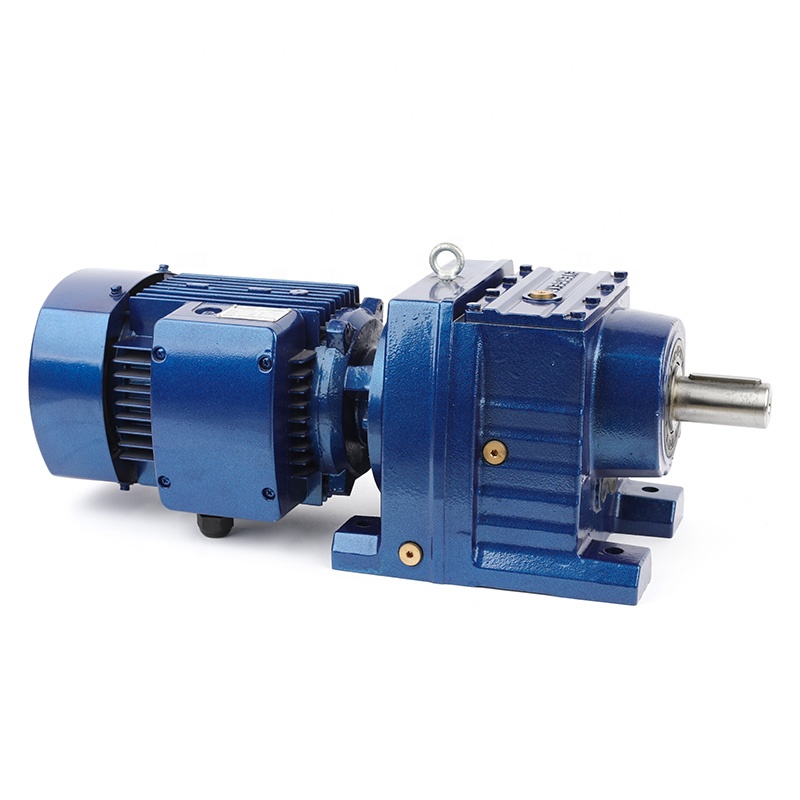

High Efficiency R/S/F/K Series Modular helical sew motoreductor 2hp

Short Description:


Download as PDF

Product Detail

Product Tags

Overview
Essential details
Warranty:
1 YEAR
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops
Weight (KG):
30 KG
Customized support:
OEM, ODM
Gearing Arrangement:
Helical
Output Torque:
Max18000N.m
Input Speed:
1400rpm
Output Speed:
0.13~1116r/min
Place of Origin:
Zhejiang, China
Brand Name:
EVERGEAR
Type:
Casting
Structures:
Drive Shaft
Heat treatment:
58-62 HRC
Input Form:
Shaft Input
Mounting Position:
Foot Mounted. Flange Mounted
Application:
Mining Plant
Color:
Customer Requirement
High Efficiency R/S/F/K Series Modular helical sew motoreductor 2hp
Product Description

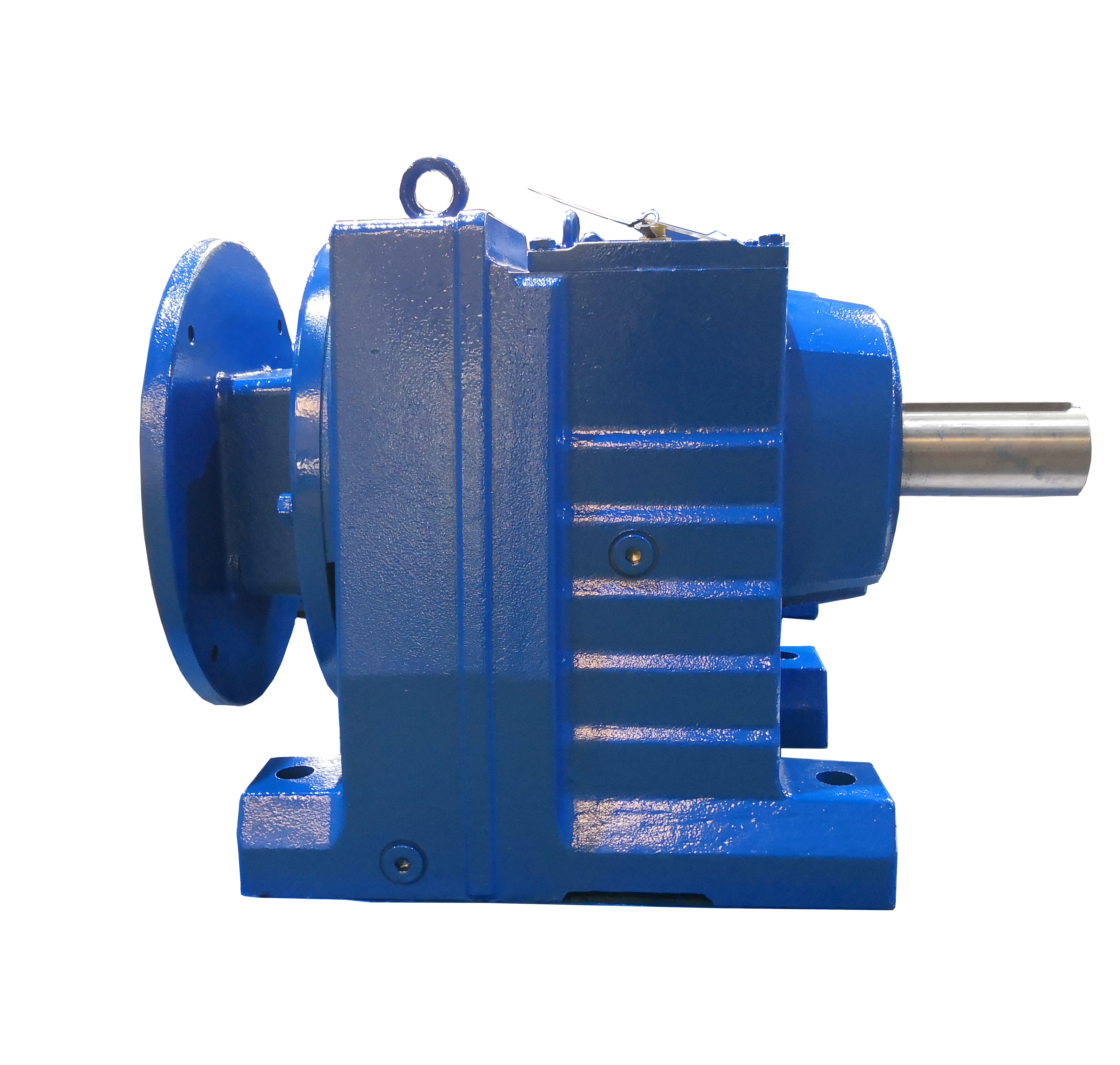

R Series Inline Shaft Helical Gear Units
Sizes: 17/27/37/47/57/67/77/87/97/107/137/147/167/177
Power                                                                                P1                                                       0.12…200kw
Output Torque                                                               TN2                                                    Up to 32000Nm
Output Speed                                                                  n2                                                     0.13…1116r/min

Design of R Series

R .

2/3 stage gear unit

Solid output shaft with foot mounting
RF.

2/3 stage gear unit

Solid output shaft with Flange mounting
RM.

2/3 stage gear unit

Solid output shaft, Flange-mounting with extended bearing hub
RX.

Single stage gear unit
Solid output shaft with foot-mounting
RXF.

Single stage gear unit
Solid output shaft with flange mounting
Mounting Position of R Series
Glance at our FACTORY

Warehouse

The Teams

The Whole Factory
Company Profile
Zhejiang Evergear Drive Co., Ltd. is a famous professional company which fous in research and development, manufacturing and sales services of reducer products, A natinal high-tech enterprise. The company’s leading products are various to meet the needs of various industries.
EVERGEAR has passed ISO9001: 2015 quality management system certification, CE certification, ISO18000 occupational health and safety system certification, ISO14001 environmental management system certification, the company has obtained the tile of National high and new technology enterprise, national spark plan implementation unit, Zhejiang Growth Enterprise, Zhejiang Provincial science and technology enterprise, Zhejiang Enterprise Technology Center. “EVERGEAR” is one of the top ten reducer brands in China. We adhere to the concept of “ Persist in heart, Persistent gears “, we warmly welcome new and old friends at home and abroad to come to visit and guide our EVERGEAR .

Our Applications

EVERGEAR has been widely applied in many industies, including metallurgy, mining, chemical, beverage, printing and dyeing, hoisting and transport, constructing road etc .

Our Reference

Packing & Delivery
Packing Detail:Strong wooden case and Fuming certifaction for export
Delivery : 10-30 days
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory for more than 20 years. Our factory is located in Pingyang county Wenzhou city of Zhejiang province China

Q: How can I get the details of EVERGEAR Drive products?
A: You can download the files from our website or contact me directly.

Q: How about the leading time?
A: 15-25days. If it is big quantity or customized order, pls contact!

Q: What’s the payment term?
A: T/T, WestUnion, LC at sight is acceptable or other terms.

Q: What’s the MOQ?
A: No MOQ , you could order 1 or 2 sets samples for test at beginning.

If you have other question, pls feel free to contact us :
Contact person: Mr Jack
WhatsApp&Wechat: 008613968935562
Email: Jack-gearbox@evergeardriving.com
