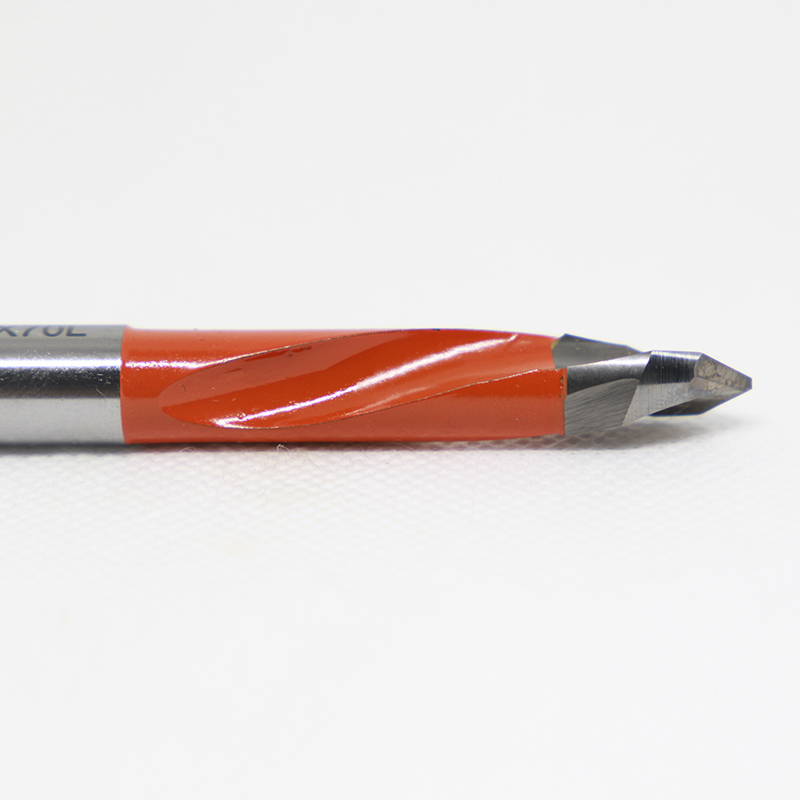

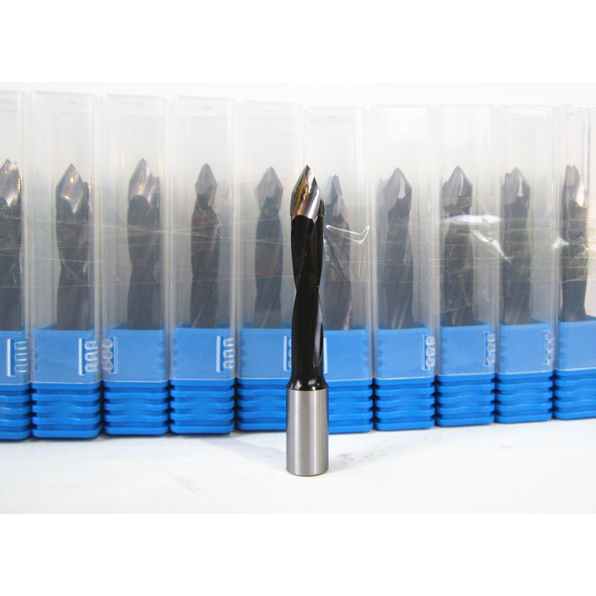

High performance HW through hole drill bit-2 flutes

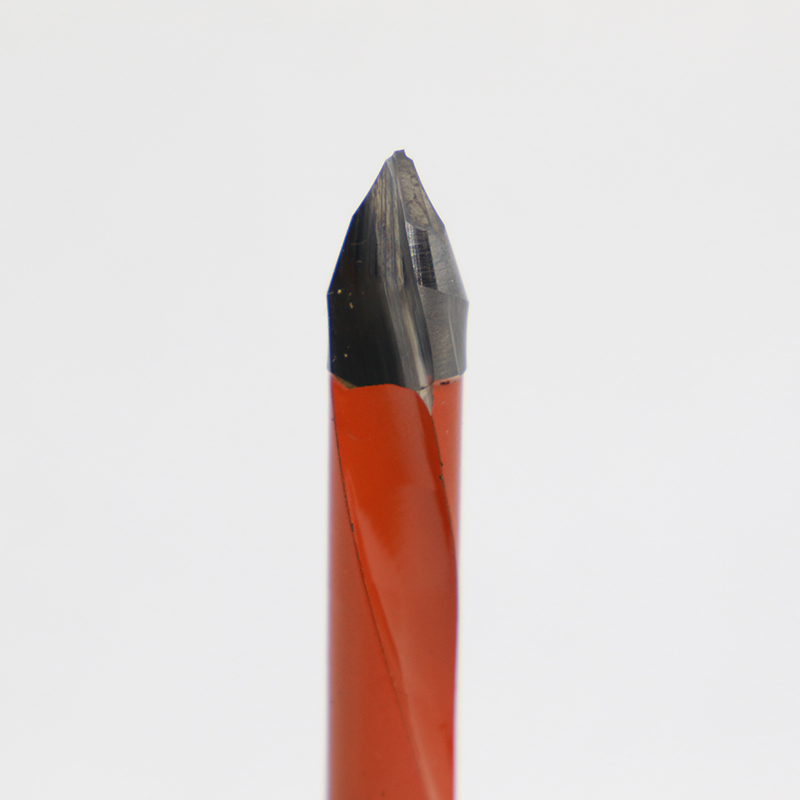

•This standard industrial HW though hole dowel drill has high strength steel shank and wear-resistant carbide point
•2 high precision cutting edges (Z2). 2 spiral grooves.
1.Better for machine tool’s high rotary speed drilling.
2.main cutting edge adopting Achimedean spiral principle will make the edge much more sharper and with better impact resistance.
3.Adopting two angles’ clearance angle and the design of many main cutting edges to disperse cutting force will effectively avoid edge crack and inactivation.
|
tool code right hand |
tool code left hand |
D(MM) |
b(MM) |
d(MM) |
L(MM) |
|
H2XV070040R |
H2XV070040L |
4 |
20 |
10 |
70 |
|
H2XV070045R |
H2XV070045L |
4.5 |
20 |
10 |
70 |
|
H2XV070050R |
H2XV070050L |
5 |
20 |
10 |
70 |
|
H2XV070051R |
H2XV070051L |
5.1 |
20 |
10 |
70 |
|
H2XV070052R |
H2XV070052L |
5.2 |
20 |
10 |
70 |
|
H2XV070055R |
H2XV070055L |
5.5 |
20 |
10 |
70 |
|
H2XV070060R |
H2XV070060L |
6 |
20 |
10 |
70 |
|
H2XV070065R |
H2XV070065L |
6.5 |
20 |
10 |
70 |
|
H2XV070067R |
H2XV070067L |
6.7 |
20 |
10 |
70 |
|
H2XV070070R |
H2XV070070L |
7 |
20 |
10 |
70 |
|
H2XV070080R |
H2XV070080L |
8 |
20 |
10 |
70 |
|
H2XV070082R |
H2XV070082L |
8.2 |
20 |
10 |
70 |
|
H2XV070090R |
H2XV070090L |
9 |
20 |
10 |
70 |
|
H2XV070100R |
H2XV070100L |
10 |
20 |
10 |
70 |
|
H2XV070110R |
H2XV070110L |
11 |
20 |
10 |
70 |
|
H2XV070120R |
H2XV070120L |
12 |
20 |
10 |
70 |
|
H2XV070130R |
H2XV070130L |
13 |
20 |
10 |
70 |
|
H2XV070140R |
H2XV070140L |
14 |
20 |
10 |
70 |
|
H2XV070150R |
H2XV070150L |
15 |
20 |
10 |
70 |
|
H2XV057040R |
H2V057040L |
4 |
20 |
10 |
57.5 |
|
H2XV057045R |
H2V057045L |
4.5 |
20 |
10 |
57.5 |
|
H2XV057050R |
H2V057050L |
5 |
20 |
10 |
57.5 |
|
H2XV057051R |
H2V057051L |
5.1 |
20 |
10 |
57.5 |
|
H2XV057052R |
H2V057052L |
5.2 |
20 |
10 |
57.5 |
|
H2XV057055R |
H2V057055L |
5.5 |
20 |
10 |
57.5 |
|
H2XV057060R |
H2V057060L |
6 |
20 |
10 |
57.5 |
|
H2XV057065R |
H2V057065L |
6.5 |
20 |
10 |
57.5 |
|
H2XV057067R |
H2V057067L |
6.7 |
20 |
10 |
57.5 |
|
H2XV057070R |
H2V057070L |
7 |
20 |
10 |
57.5 |
|
H2XV057080R |
H2V057080L |
8 |
20 |
10 |
57.5 |
|
H2XV057082R |
H2V057082L |
8.2 |
20 |
10 |
57.5 |
|
H2XV057090R |
H2V057090L |
9 |
20 |
10 |
57.5 |
|
H2XV057100R |
H2V057100L |
10 |
20 |
10 |
57.5 |
|
H2XV057110R |
H2V057110L |
11 |
20 |
10 |
57.5 |
|
H2XV057120R |
H2V057120L |
12 |
20 |
10 |
57.5 |
|
H2XV057130R |
H2V057130L |
13 |
20 |
10 |
57.5 |
|
H2XV057140R |
H2V057140L |
14 |
20 |
10 |
57.5 |
|
H2XV057150R |
H2V057150L |
15 |
20 |
10 |
57.5 |
OTHER OVERAL LENGTH AND SHANK SIZES ARE AVAILABLE
Cutting data for HW through hole drills bits is Speed:4500-8000(r/min), Feeding speed:2-8(m/min)
Maximum drilling depth for length 57mm drills is 20mm, for 70mm drills, Max drilling depth is 33mm.
The above HW drills can be used for boring machines equipped with adapters or chucks. Through hole drilling of solid wood, MDF wood-based Panel, wood composites, plastic and laminated materials.
What to do if there is No chip-removal or cutting is not smooth when drilling?
The reason may be the drills structure the size of the spiral groove and the lead (helix angle) are too small, maybe the transition between the alloy and the tool body is not smooth enough, maybe the main relief angle is too small or even a secondary value, maybe the center point is manufactured too short and thick, it is easy to cause non-cutting or poor cutting during drilling, The solution is make correction on the design of the dowel drills bit.
Analysis from the user’s point of view: If a high-speed machine tool (4500rpm) or higher is used (under normal circumstances, the machine speed for the row of drill bits is 2800 to 3500), and the drill bits are not special designed, and the machine tool air pressure is insufficient, the plate is just pasted with glue and not dry material (density board), if the plate itself contains too much glue, etc., it is easy to cause the cutting problem, then you need to check the machine and have a try a special designed drill bits.
The lowest level of error is to reverse the left and right rotation. This problem is relatively easy to solve: the main thing is first clarify the user’s machine parameters, the user’s wood condition, and determine whether to directly use the standard dowel drill bit or design special drill bit according to these conditions.
It happen to that we have standard dowel drill bits, through hole drills and also the special ones to meet different requirements.
If there is any problem bother you, just do not hesitate to contact us, we have a professional technician team providing solutions for you.
We sell products, but we also want to make your wood cutting more easier.
