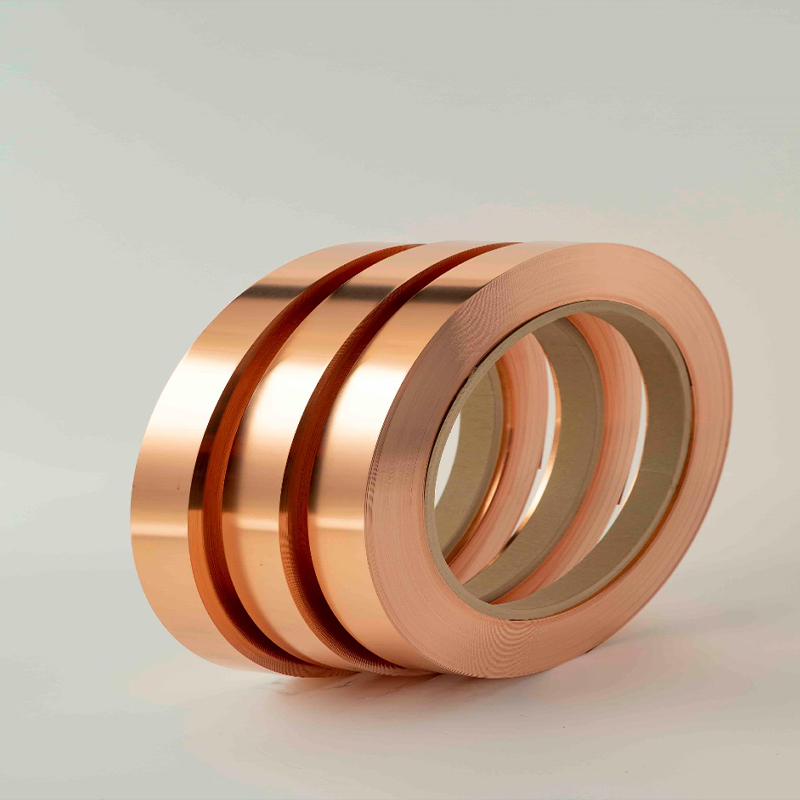

High Purity Best Quality Copper Strips

Short Description:

Grade: C11000, C12000, C12200, C10200, C10300 etc.Purity: Cu≥99.9%Specification: Thickness 0.15-3.0mm,Width 10-1050mm.Temper: O,1/4H, 1/2H, HLead Time: 10-30 days according to quantity.Service: Customized serviceShipping Port: Shanghai, China

Send email to us Download as PDF

Product Detail

Product Tags

Introduction

Copper is pure industrial copper. Because it has a rosy red color, the surface is purple after forming an oxide film, so it is generally called copper, also known as red copper.

It has very good ductility, electrical conductivity and corrosion resistance. It can be easily processed into a variety of molding patterns.

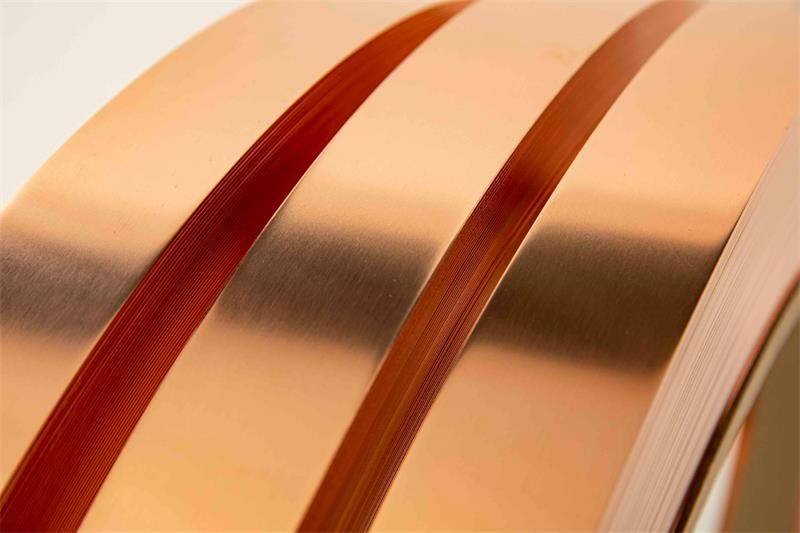

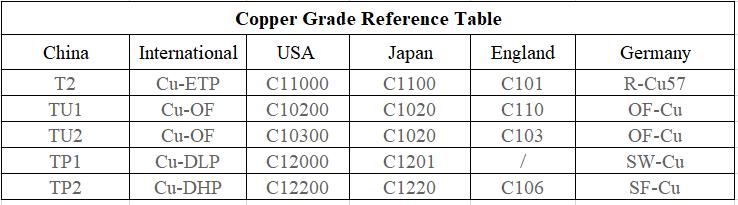

High Purity Best Quality Copper Strips4(1)

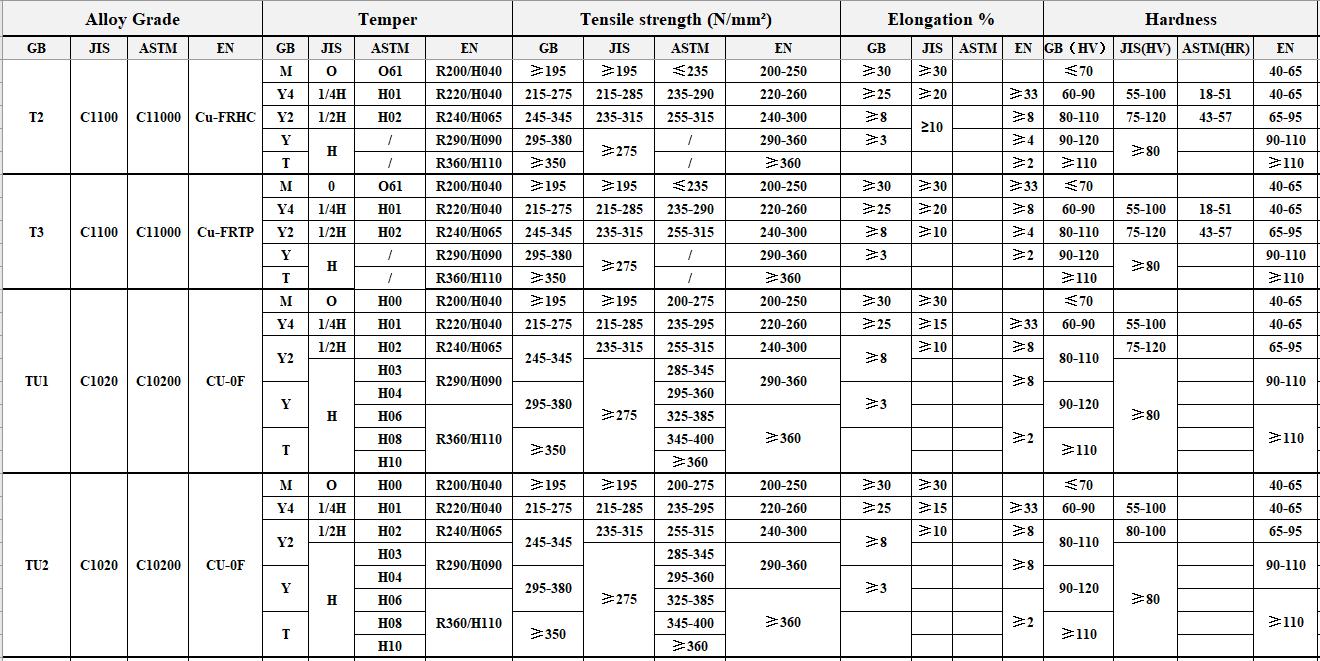

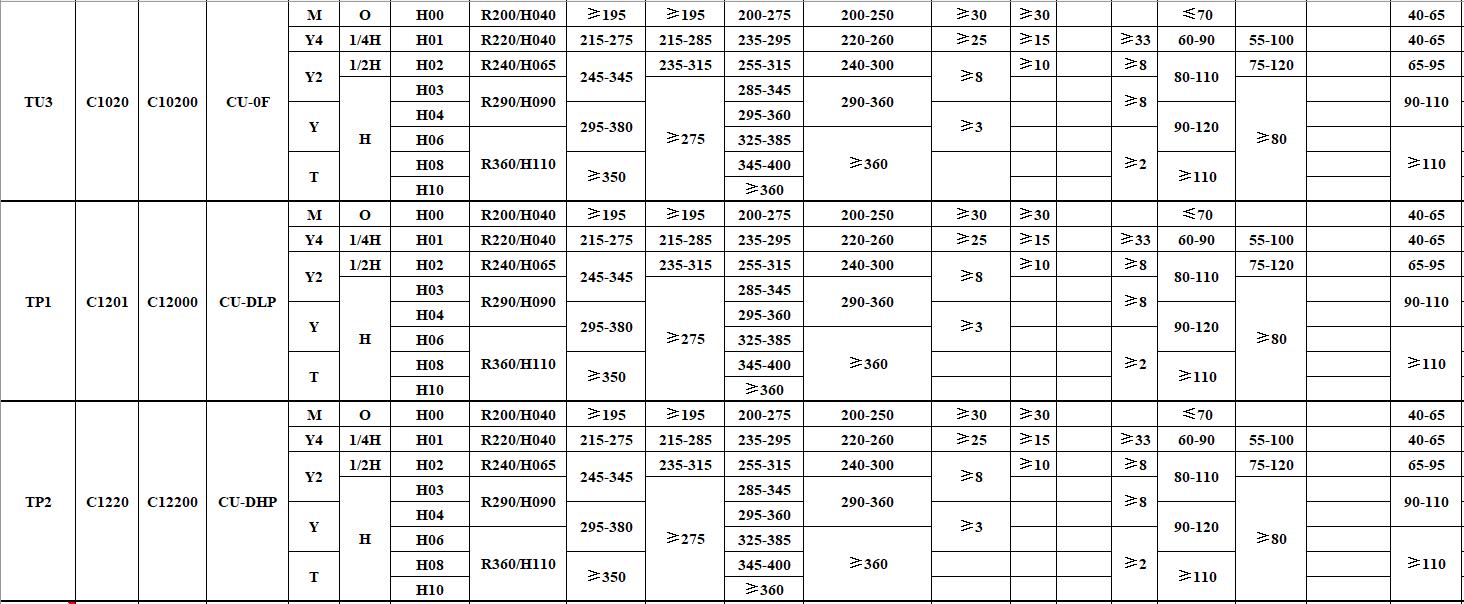

Mechanical Properties

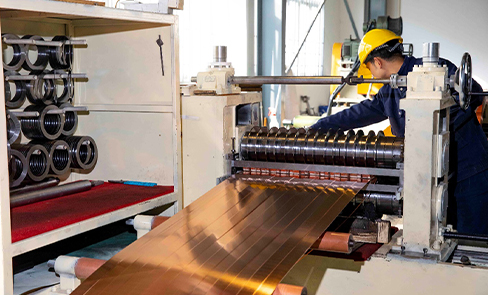

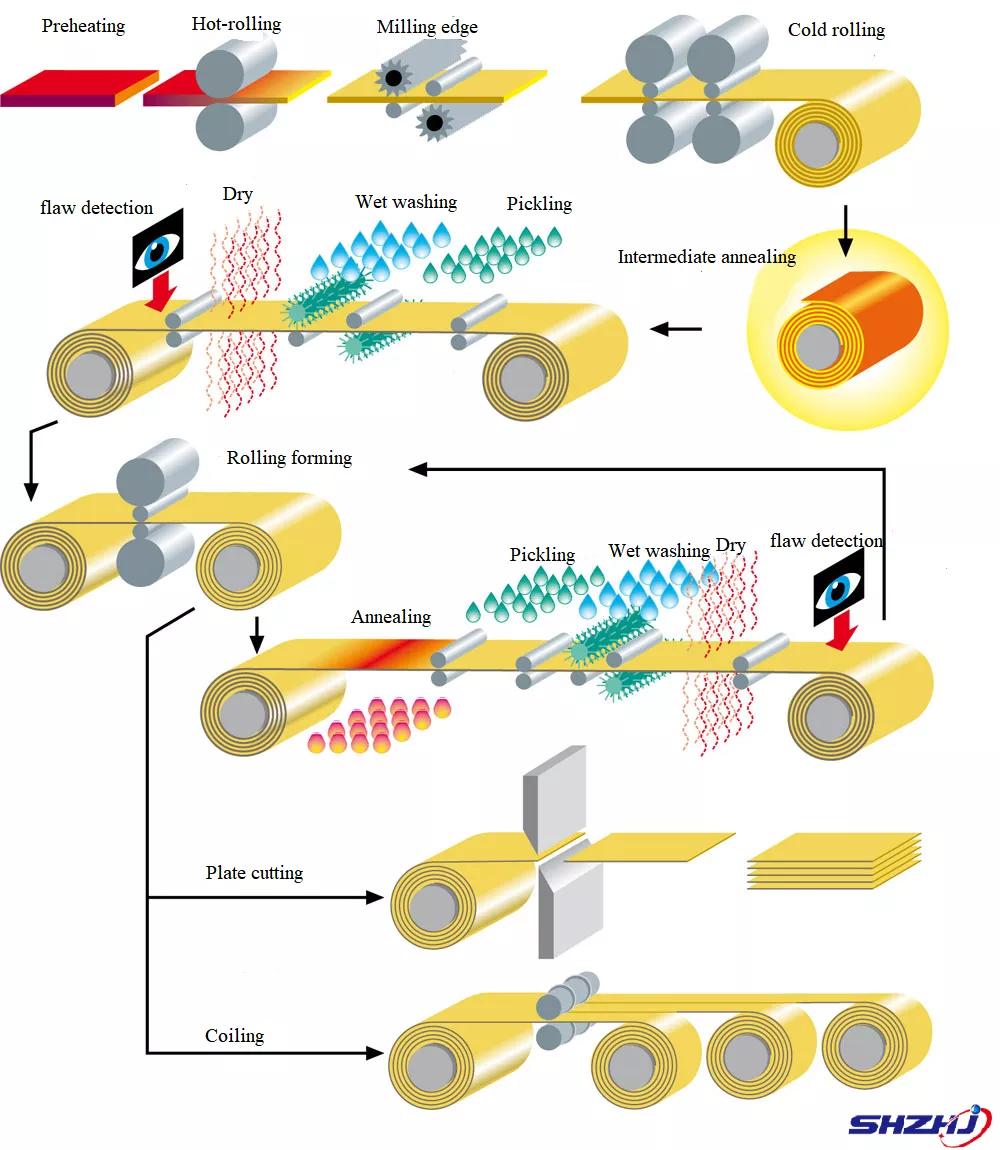

Production Strength

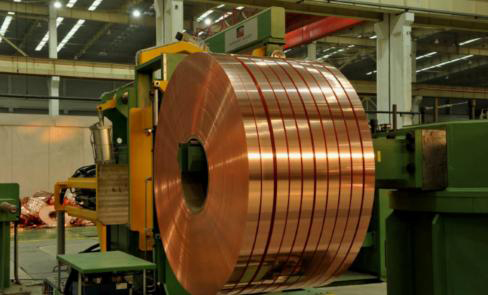

High Purity Best Quality Copper Strips10

Material Characteristics & Application

Alloy Type	Material Characteristics	Application
C11000 Cu≥99.90	It has good electrical conductivity, heat conduction, corrosion resistance and processing properties. It can be welded and brazed. The impurities and trace amount of oxygen only have very few effect on electrical and thermal conductivity. But the trace oxygen is easy to cause “hydrogen disease”, so it can’t be processed and used in high temperature (such as > 370℃).	Widely used for electric, heat conduction, corrosion resistance equipment. Such as: wire, cable, conductive screw, blasting detonator, chemical evaporator, storage device and a variety of pipes etc.
C10200 Cu≥99.97 C10300 Cu≥99.95	High purity, excellent electrical and thermal conductivity, barely no “hydrogen disease”, good processing, welding, corrosion resistance and cold resistance performance.	Mainly used for electrical vacuum instruments, all kinds of hardware products, lamps, pipe fittings, zippers, plaques, nails, springs, sedimentation filters etc.
C12000,C12200 Cu≥99.90	Good welding and cold bending performance. It can be processed and used in reducing atmosphere, but not in oxidizing atmosphere. C12000 has less residual phosphorus than C12200, so its thermal conductivity are higher than C12200.	Mainly used for pipe applications, such as gasoline or gas conveying pipe, drain pipe, condensate pipe, mine pipe, condenser, evaporator, heat exchanger, train parts. It also can be processed to plate, strip, tape and rod.
