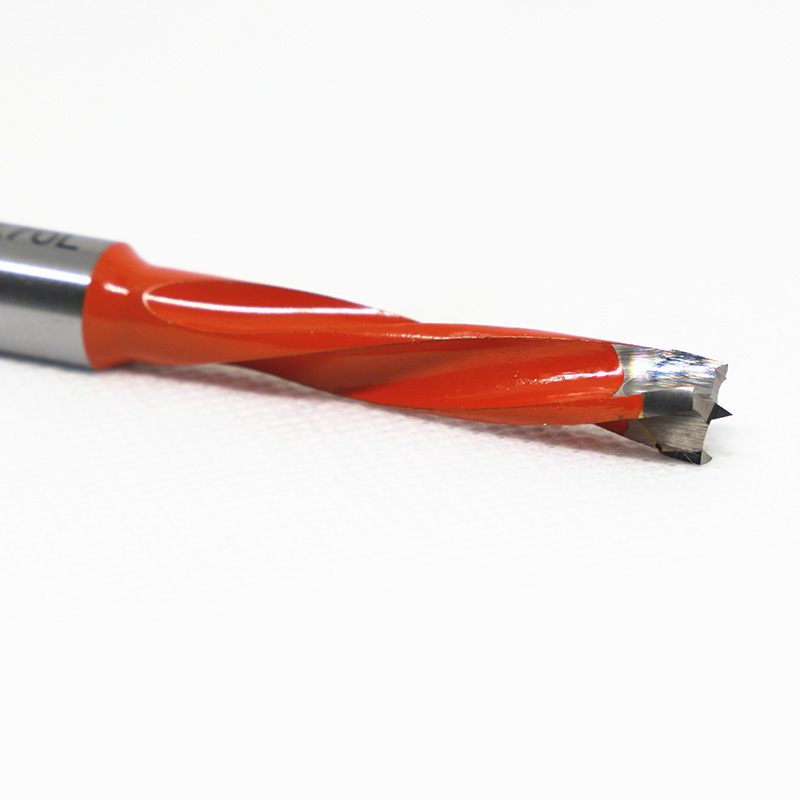

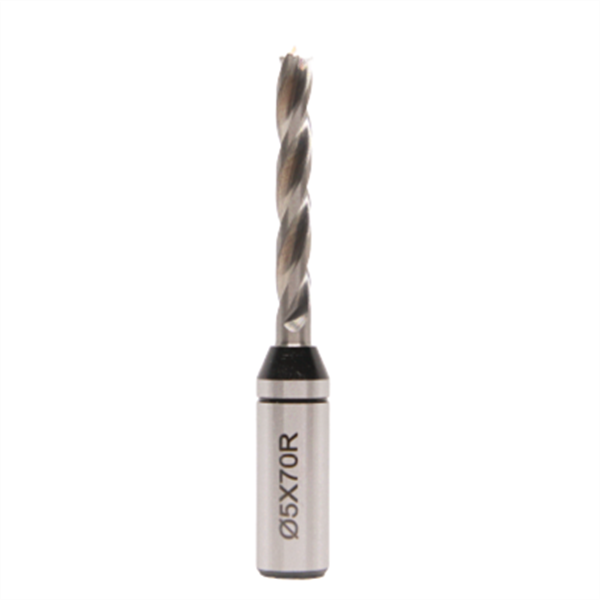

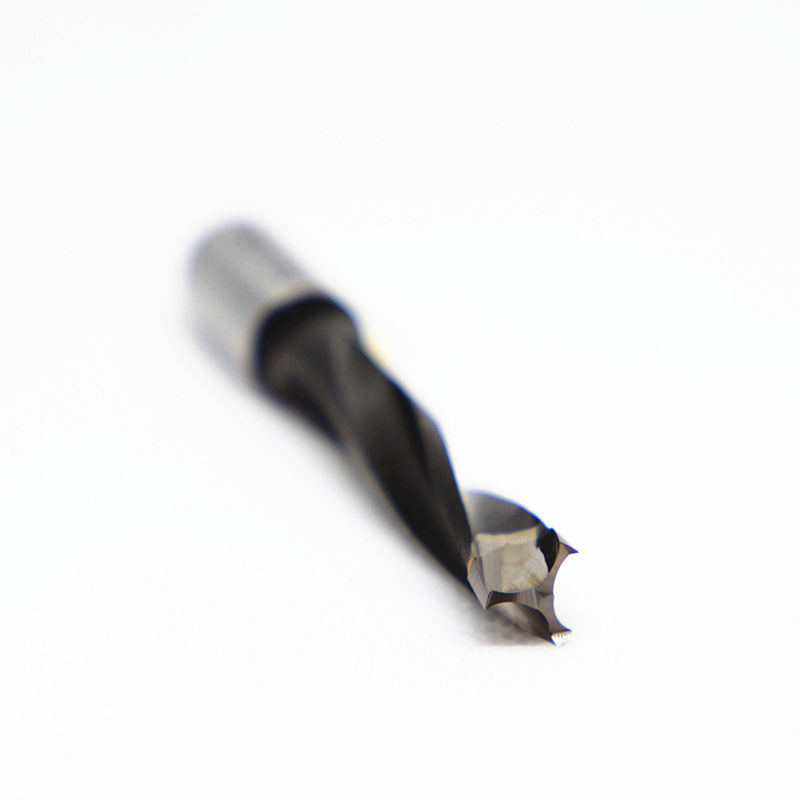

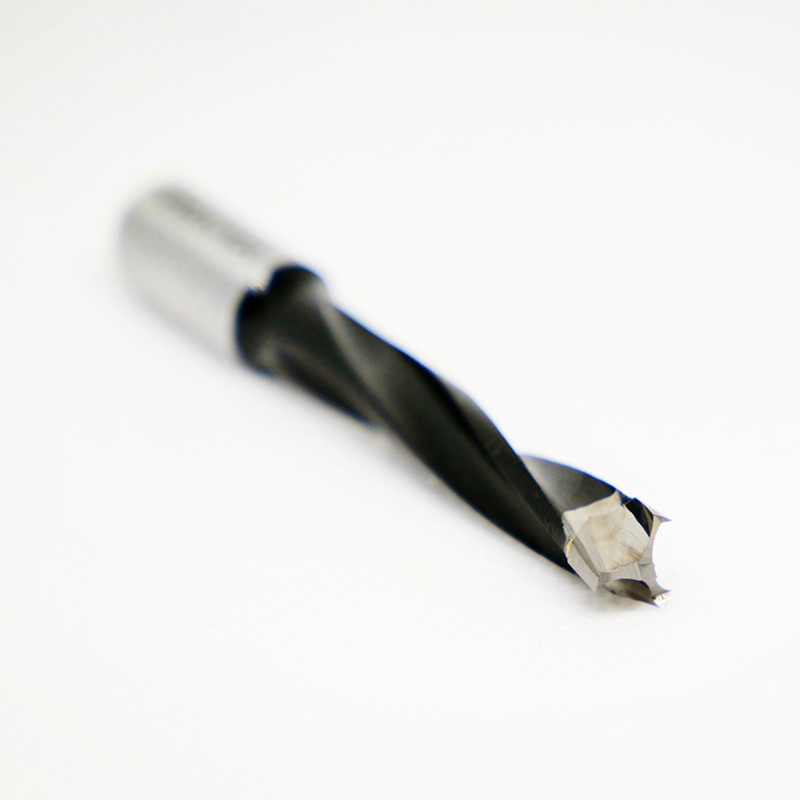

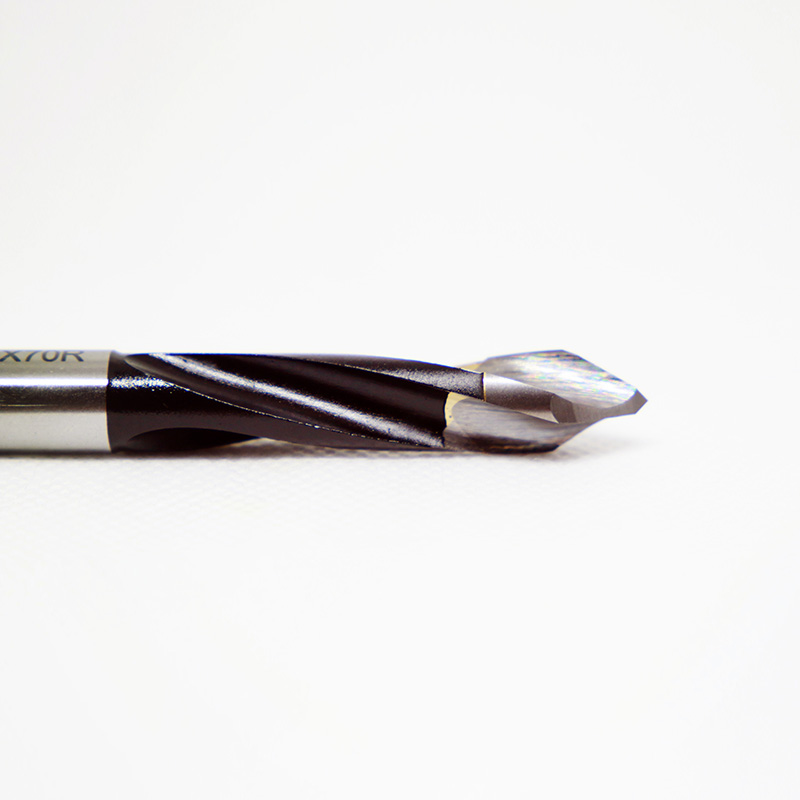

HW dowel drills with 3 cutting edges-blind hole drill bits

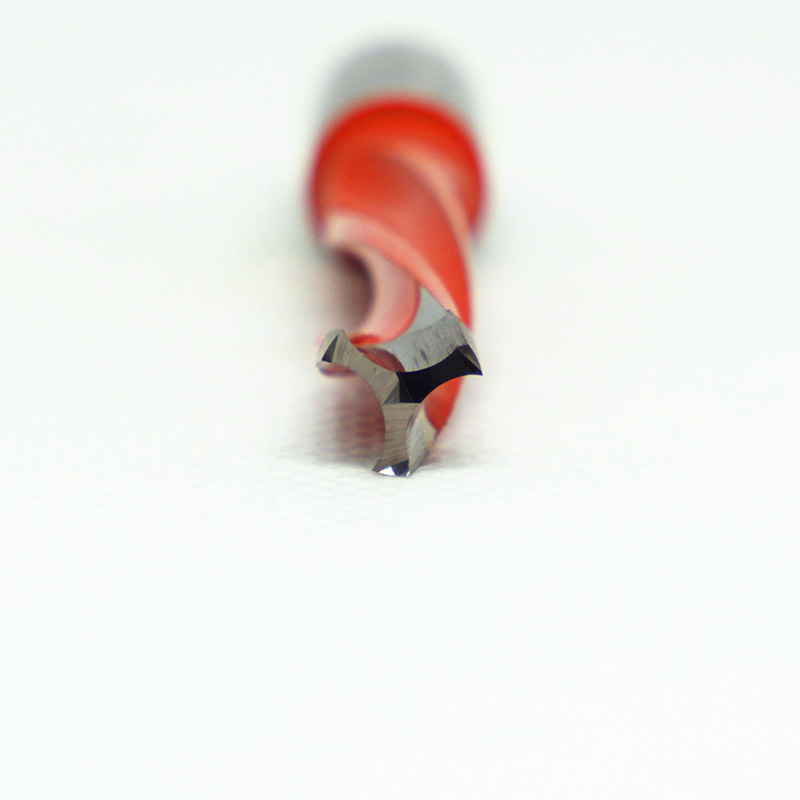

•New design—Crown head
•HW head is with precise balance center point.
• 3 precise ground cutting edges (Z3).
• 3 spiral grooves.
1.The unique out look. No one has the same.
2. This dowel drill is also called Crown drill， It can work on all wood materials.
3.With better chip removal, better hole surface performance, no burn.
4. 2 more times tool life than standard products.
|
tool code right hand |
tool code left hand |
D(MM) |
b(MM) |
d(MM) |
L(MM) |
|
H3W070040R |
H3W070040L |
4 |
20 |
10 |
70 |
|
H3W070045R |
H3W070045L |
4.5 |
20 |
10 |
70 |
|
H3W070050R |
H3W070050L |
5 |
20 |
10 |
70 |
|
H3W070051R |
H3W070051L |
5.1 |
20 |
10 |
70 |
|
H3W070052R |
H3W070052L |
5.2 |
20 |
10 |
70 |
|
H3W070055R |
H3W070055L |
5.5 |
20 |
10 |
70 |
|
H3W070060R |
H3W070060L |
6 |
20 |
10 |
70 |
|
H3W070065R |
H3W070065L |
6.5 |
20 |
10 |
70 |
|
H3W070067R |
H3W070067L |
6.7 |
20 |
10 |
70 |
|
H3W070070R |
H3W070070L |
7 |
20 |
10 |
70 |
|
H3W070080R |
H3W070080L |
8 |
20 |
10 |
70 |
|
H3W070082R |
H3W070082L |
8.2 |
20 |
10 |
70 |
|
H3W070090R |
H3W070090L |
9 |
20 |
10 |
70 |
|
H3W070100R |
H3W070100L |
10 |
20 |
10 |
70 |
|
H3W070110R |
H3W070110L |
11 |
20 |
10 |
70 |
|
H3W070120R |
H3W070120L |
12 |
20 |
10 |
70 |
|
H3W070130R |
H3W070130L |
13 |
20 |
10 |
70 |
|
H3W070140R |
H3W070140L |
14 |
20 |
10 |
70 |
|
H3W070150R |
H3W070150L |
15 |
20 |
10 |
70 |
|
H3W057040R |
H3W057040L |
4 |
20 |
10 |
57.5 |
|
H3W057045R |
H3W057045L |
4.5 |
20 |
10 |
57.5 |
|
H3W057050R |
H3W057050L |
5 |
20 |
10 |
57.5 |
|
H3W057051R |
H3W057051L |
5.1 |
20 |
10 |
57.5 |
|
H3W057052R |
H3W057052L |
5.2 |
20 |
10 |
57.5 |
|
H3W057055R |
H3W057055L |
5.5 |
20 |
10 |
57.5 |
|
H3W057060R |
H3W057060L |
6 |
20 |
10 |
57.5 |
|
H3W057065R |
H3W057065L |
6.5 |
20 |
10 |
57.5 |
|
H3W057067R |
H3W057067L |
6.7 |
20 |
10 |
57.5 |
|
H3W057070R |
H3W057070L |
7 |
20 |
10 |
57.5 |
|
H3W057080R |
H3W057080L |
8 |
20 |
10 |
57.5 |
|
H3W057082R |
H3W057082L |
8.2 |
20 |
10 |
57.5 |
|
H3W057090R |
H3W057090L |
9 |
20 |
10 |
57.5 |
|
H3W057100R |
H3W057100L |
10 |
20 |
10 |
57.5 |
|
H3W057110R |
H3W057110L |
11 |
20 |
10 |
57.5 |
|
H3W057120R |
H3W057120L |
12 |
20 |
10 |
57.5 |
|
H3W057130R |
H3W057130L |
13 |
20 |
10 |
57.5 |
|
H3W057140R |
H3W057140L |
14 |
20 |
10 |
57.5 |
|
H3W057150R |
H3W057150L |
15 |
20 |
10 |
57.5 |
OTHER OVERAL LENGTH AND SHANK SIZES ARE AVAILABLE
The above HW dowel drills bits can be used for solid wood, MDF wood-based Panel, wood composites, plastic and laminated materials on CNC router.
The diameter of the dowel drill for blind hole is from 3mm to 15mm. The total length of the drill is 57mm, 70mm, 80mm, 85mm, 90mm, 105mm, etc. There are about 500 specifications. At the same time, the performance of saw blades with PCD tips and finger joint knives in wood processing, non-ferrous metal processing, aluminum alloy in door and window manufacturing industries are 10-20% higher than other products in the same industry.
Welcome to contact us for free samples.
