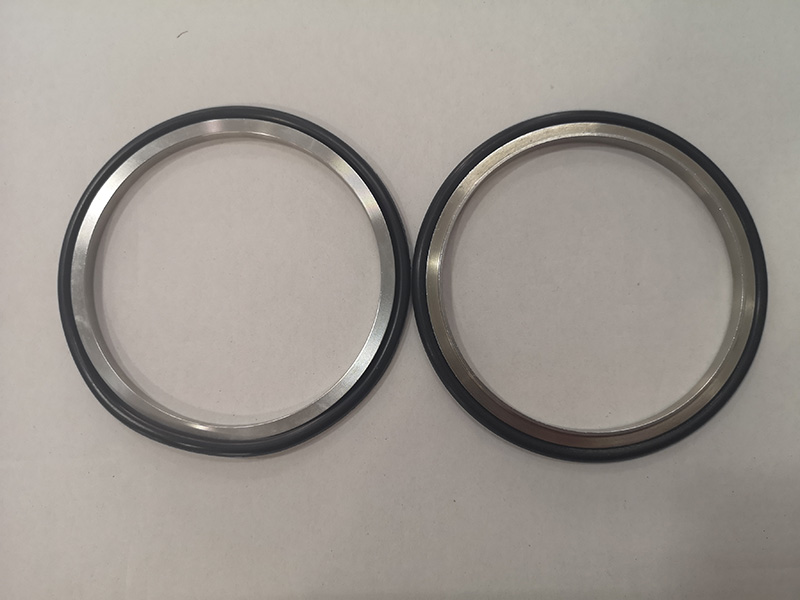

KF Centering Ring with O’Ring NW 10 KF10CRVS SS304
|
KF Centering Ring with O’Ring |
||||||||||||
|
Size |
Model No. |
C/R |
O’Ring |
O’Ring Size |
A in / mm |
B in / mm |
C in / mm |
D in / mm |
||||
|
NW 10 |
KF10CRVS |
304 S.S. |
Viton |
AS-311 |
0.39 |
10 |
0.47 |
12 |
0.31 |
8 |
0.15 |
3.9 |
|
NW 16 |
KF16cRvS |
304 S.S. |
Viton |
AS-314 |
0.63 |
16 |
0.67 |
17 |
0.31 |
8 |
0.15 |
3.9 |
|
NW 25 |
KF25CRVS |
304 S.S. |
Viton |
AS-320 |
o.98 |
25 |
1.02 |
26 |
0.31 |
8 |
0.15 |
3.9 |
|
Nw 4o |
KF4OCRvS |
304 S.S. |
Viton |
AS-326 |
1.57 |
4o |
1.61 |
41 |
0.31 |
8 |
0.15 |
3.9 |
|
NW 5o |
KF50CRVS |
304 S.S. |
Viton |
AS-330 |
1.97 |
50 |
2.05 |
52 |
0.31 |
8 |
0.15 |
3.9 |
|
NW 10 |
KF10CRVA |
Aluminum |
Viton |
AS-311 |
0.39 |
10 |
0.47 |
12 |
0.31 |
8 |
0.15 |
3.9 |
|
NW 16 |
KF16CRVA |
Aluminum |
Viton |
AS-314 |
0.63 |
16 |
0.67 |
17 |
0.31 |
8 |
0.15 |
3.9 |
|
NW 25 |
KF25CRVA |
Aluminum |
Viton |
AS-320 |
o.98 |
25 |
1.02 |
26 |
0.31 |
8 |
0.15 |
3.9 |
|
NW 40 |
KF40CRVA |
Aluminum |
Viton |
AS-326 |
1.57 |
4o |
1.61 |
41 |
0.31 |
8 |
0.15 |
3.9 |
|
NW 50 |
KF50CRVA |
Aluminum |
Viton |
AS-330 |
1.97 |
50 |
2.05 |
52 |
0.31 |
8 |
0.15 |
3.9 |
|
NW 10 |
KF10CRNS |
304 S.S. |
NBR |
AS-311 |
0.39 |
10 |
0.47 |
12 |
0.31 |
8 |
0.15 |
3.9 |
|
NW 16 |
KF16CRNS |
304 S.S. |
NBR |
AS-314 |
0.63 |
16 |
o.67 |
17 |
0.31 |
8 |
0.15 |
3.9 |
|
NW 25 |
KF25CRNS |
304 S.S. |
NBR |
AS-320 |
o.98 |
25 |
1.02 |
26 |
0.31 |
8 |
0.15 |
3.9 |
|
NW 40 |
KF40CRNS |
304 S.S. |
NBR |
AS-326 |
1.57 |
40 |
1.61 |
41 |
0.31 |
8 |
0.15 |
3.9 |
|
NW 50 |
KF50CRNS |
304 S.S. |
NBR |
AS-330 |
1.97 |
50 |
2.05 |
52 |
0.31 |
8 |
0.15 |
3.9 |
|
Nw 10 |
KF10CRNA |
Aluminum |
NBR |
AS-311 |
0.39 |
10 |
0.47 |
12 |
0.31 |
8 |
0.15 |
3.9 |
|
NW 16 |
KF16CRNA |
Aluminum |
NBR |
AS-314 |
0.63 |
16 |
0.67 |
17 |
0.31 |
8 |
0.15 |
3.9 |
|
NW 25 |
KF25CRNA |
Aluminum |
NBR |
AS-320 |
0.98 |
25 |
1.02 |
26 |
0.31 |
8 |
0.15 |
3.9 |
|
NW 40 |
KF40CRNA |
Aluminum |
NBR |
AS-326 |
1.57 |
4o |
1.61 |
41 |
0.31 |
8 |
0.15 |
3.9 |
|
NW 50 |
KE50CRNA |
Aluminum |
NBR |
AS-330 |
1.97 |
5o |
2.05| |
52 |
0.31 |
8 |
0.15 |
3.9 |
Our production process
CNC lathe process + Welding + Polish + Ultrasonic Cleaning +Leak test+ Packing
vacuum components advantage
1. Perfect quality vacuum components
2. Good sales service and CAD drawing available
3. Fast shipment delivery time
4. We supply OEM service
5. Quick response for inquiry ,order process and email reply.
