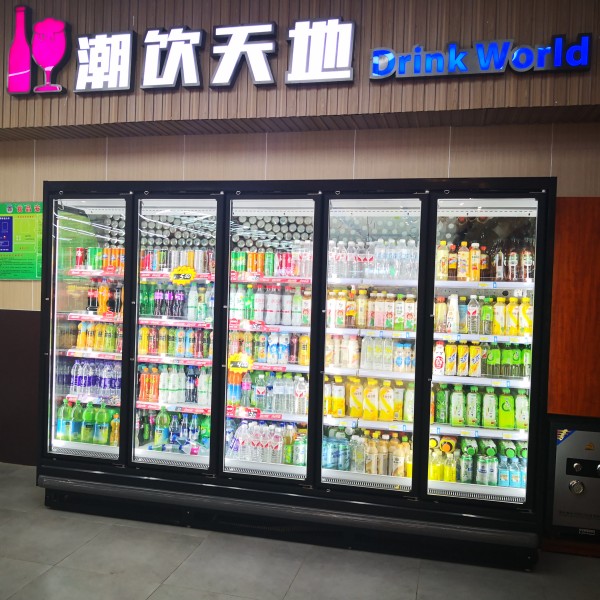

(LH Model) Remote Type Air Curtain Cabinet With the door
The temperature range is 2-8℃，for display marine products,fresh meat,dairy products,and daily products,such as beverage ,sausages and cooked food;also show fruits and vegetables,etc.
L-H Edition is divided into L-H split cabinet、L-H Edition with the door and L-H Edition integrated machine.
The air curtain cabinet adopts high-quality thermal insulation layer material, the thermal insulation layer has strong thermal insulation, adopts the foaming process, the thermal insulation effect is outstanding, the energy saving effect is more, and the operating cost is saved. At the same time, the structural design of the air curtain cabinet is more solid and reasonable, which greatly prolongs the service life of the product. There is an integral angle steel frame support between the product shell and the inner tank, and the firmness and durability are significantly improved.
In terms of fresh-keeping effect, the air-curtain cabinet adopts the way of blowing out the cold air from the back, so that the cold air evenly covers every corner of the air-curtain cabinet, so that all the food in the cabinet can achieve the perfect fresh-keeping effect.
Product Colors
1. Large volume,small occupied area.
2. Low height of the front edge and large open display area provide the better display effect.
3. Multi-layer shelf board freely combine with angle adjustable.
4. The technology of trapezoid laminar flow air curtain and air outlet from back board ensure the air flow evenly and energy-conservation.
5. High efficiency pre-cooling corrugated fins of evaporator increases cooling performance.
6. Top light and shelf light are controlled separately to save energy.
7. Anti-condensation switch design suits for all different ambient condition.
8. Optional tempered glass door ensures safe,gienic and energy-efficient.
9. Optional top mirror structure for better display effect.
10. Optional refrigerant: R22, R404a, R134a, R290 etc refrigerant can be choosen.
| Type | (LH Model) Remote Type Air Curtain Cabinet With the door | |||
| Model | BZ-LMS1820-01( 3 doors) | BZ-LMS2520-01( 4 doors) | BZ-LMS2920-01(5 doors) | BZ-LMS3720-01( 6 doors) |
| External dimensions | 1875×850/1050×2050 | 2500×850/1050×2050 | 2900×850/1050×2050 | 3750×850/1050×2050 |
| Temperature range（℃） | 2°-8° | 2°-8° | 2°-8° | 2°-8° |
| Effective Volume(L) | 801 | 1068 | 1239 | 1603 |
| Displaye area(M2) | 2.61 | 3.48 | 4.03 | 5.21 |
| Front end heigth(mm) | 348 | |||
| Number of shelves | 4 | |||
| Inter Dimension(mm) | 1875×648×1443 | 2500×648×1443 | 2900×648×1443 | 3750×648×1443 |
| Packing size（mm） | 1400×930/1130×2150 | 2025×930/1130×2150 | 2650×930/1130×2150 | 3900×930/1130×2150 |
| Compressor/(W) | Remote Type | |||
| Refrigerant | According to the external condensing unit | |||
| Evap Temp ℃ | -10 | |||
| Lighting power (W) | 160W | 230W | 292W | 361W |
| Evaporating fan（W） | 2pcs/66W | 3pcs/99W | 4pcs/132W | 5pcs/165W |
| Anti Sweat（W） | 26 | 35 | 40 | 52 |
| Input Power（W） | 203.6W | 243.6W | 339.4W | 380.8W |
| FOB Qingdao Price（$） | $1,793 | $2,150 | $2,455 | $3,095 |
