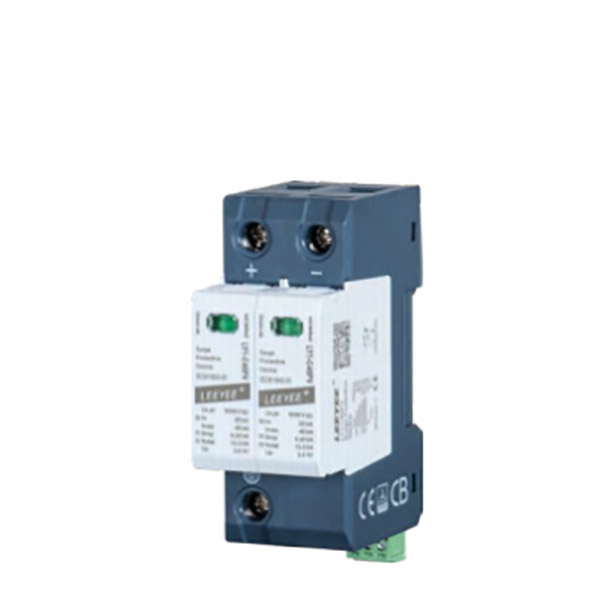

LY1-C40PV/2(S) 1000V Pluggable Single-Pole SPD
Technical Data
| IEC Electrical | 1000 | |||||
| Nominal AC Voltage Uo/ Un | 1000 V | |||||
| Maximum Continuous Operating Voltage (DC) Uc | 1000 V | |||||
| Nominal Discharge Current (8/20 μs) In | 20 kA | |||||
| Maximum Discharge Current (8/20 μs) Imax | 40 kA | |||||
| Impulse Discharge Current (10/350 μs) Iimp | 6.25 kA | |||||
| Voltage Protection Level | Up | 3.6 kV | ||||
| Response Time | tA | < 25 ns | ||||
| Back-Up Fuse (max) | 125 A gL / gG | |||||
| Short-Circuit Current Rating (AC) ISCCR | 25 kA / 50 kA | |||||
| Mechanical & Environmental | ||||||
| Operating Temperature Range | Ta | -40ºF to +158ºF [-40ºC to +70ºC] | ||||
| Permissible Operating Humidity | RH | 5%…95% | ||||
| Atmospheric pressure and altitude | 80k Pa … 106k Pa / -500 m…..2000 m | |||||
| Terminal Screw Torque | Mmax | 39.9 Ibf ·in [4.5 Nm] | ||||
| Conductor Cross Section (max) | 2 AWG (Solid, Stranded) / 4 AWG (Flexible) | |||||
| 35 mm2 (Solid, Stranded) / 25 mm2(Flexible) | ||||||
| Mounting | 35 mm DIN Rail, EN 60715 | |||||
| Degree of Protection | IP 20 (built-in) | |||||
| Housing Material | Thermoplastic: Extinguishing Degree UL 94 V-0 | |||||
| Thermal Protection | Yes | |||||
| Operating State / Fault Indication | Green ok / Red defect | |||||
| Remote Contacts (RC)RC Switching CapacityRC Conductor Cross Section (max) | OptionalAC: 250V / 0.5 A; DC: 250V / 0.1 A;125V / 0.2 A;75V / 0.5 A16 AWG (Solid) / 1.5 mm2(Solid) | |||||
Internal Configuration
Dimensions & Packaging
Connection Diagram
