Standard | IEC61439-1&2 Designed to be operated by an ordinary person |
Pan assembly rating(A) | 125,200,250A |
No.of phase | 1,2,3 |
Voltage Rating(V) | 110-415 |
Rated Insulation voltage(V)Ui | 690V |
Mounting type | Flush/Surface |
No. of ways(3phase) | 4,6,8,10,12,14,16,18,20,22,24 |
Ingress protection(IP) | IP40 |
Enclosure material | Electro galvanized steel |
Steel sheet thickness(mm) | 1&1.2mm |
Surface finishing | Powder coated with electrostatic Epoxy polyester(RAL7035) |
Coating thickness | 70-90 microns |
Main incomer breaker | MCCB or MCB, ELCB+ISOLATOR, |
Branch breaker | 1,2,3P din-rail type 18mm width MCB |
Neutral terminal Capacity | Offer 10mm diameter lug hole |
Earth terminal Capacity | Offer 10mm diameter lug hole |
Ambient Temperature(℃) | 30,50 |
1. Galvanized 1.2mm sheet
2. Main switch: MCB,ISOLATOR,RCCB,MCCB up to 150A
3 .Outgoing: upto 72poles way MCB
4. Plastic Lock/Metal Lock
5. Surface/flush type
6. Adjusted mounting plate
7. Powder coating Ral7035 texture
8. IP42 for Metal Enclosure
9. IEC61439-1
10. Extension Board 12poles way on top and bottom design
11. Adjustable rail suitable for most of the din rail type MCB
12.Door easy removable, and can be installed inversely .
13.Extension board multiple row x 12W available installed on the upper or downer of distribution board.

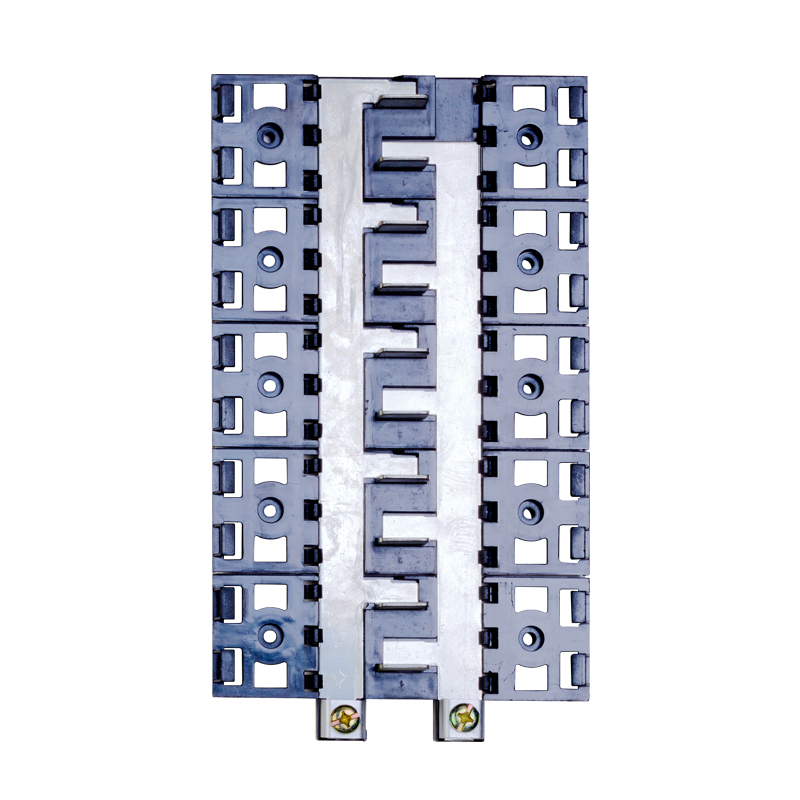

14.Pan assembly/Busbar system fully tin plated instead of original copper finishing. Provider
more durable of good electrical conductivity away from copper rusting. And shroud plastic cover against 850 ℃ fire glow test/Glow wire test.
Main incomer switch connect to the pan assembly/busbar by solid copper bar.
MCB incomer | |||||||
Item No. | main breaker | Outgoing/poles |
H |
H1 |
W |
W1 |
D |
DT02MCB-04 | MCB | 12poles |
560 |
550 |
350 |
340 |
110 |
DT02MCB-06 | MCB | 18poles |
614 |
604 |
350 |
340 |
110 |
DT02MCB-08 | MCB | 24poles |
668 |
658 |
350 |
340 |
110 |
DT02MCB-10 | MCB | 30poles |
722 |
712 |
350 |
340 |
110 |
DT02MCB-12 | MCB | 36poles |
776 |
766 |
350 |
340 |
110 |
DT02MCB-14 | MCB | 42poles |
830 |
820 |
350 |
340 |
110 |
DT02MCB-16 | MCB | 48poles |
884 |
874 |
350 |
340 |
110 |
MCCB 160-200A incomer |
|||||||
DT02MCCB200-04 | MCCB 200A | 12poles |
560 |
550 |
350 |
340 |
110 |
DT02MCCB200-06 | MCCB 200A | 18poles |
614 |
604 |
350 |
340 |
110 |
DT02MCCB200-08 | MCCB 200A | 24poles |
668 |
658 |
350 |
340 |
110 |
DT02MCCB200-10 | MCCB 200A | 30poles |
722 |
712 |
350 |
340 |
110 |
DT02MCCB200-12 | MCCB 200A | 36poles |
776 |
766 |
350 |
340 |
110 |
DT02MCCB200-14 | MCCB 200A | 42poles |
830 |
820 |
350 |
340 |
110 |
DT02MCCB200-16 | MCCB 200A | 48poles |
884 |
874 |
350 |
340 |
110 |

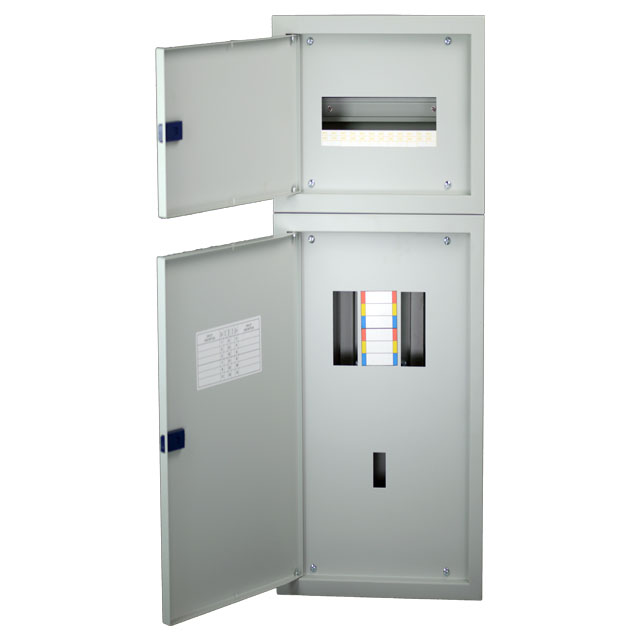

The below diagram indicated the MCCB and MCB main three phase distribution board connection an extension board on the top.
1. Thickness and kind of steel:
2. Dimension of the board
3. Structure of the board
