Monel 400 Hydraulic Control Line Tube

Short Description:

Welded Control Lines are the preferred construction for control lines being used in downhole oil and gas applications. Our welded control lines are used in SCSSV, Chemical Injection, Advanced Well Completions, and Gauge Applications. We offer a variety of control lines. (TIG Welded, and floating plug drawn, and lines with enhancements) The various processes provide us the ability to customize a solution to meet your well completion.


Product Detail

Product Tags

Product introduction

Tube specially manufactures seamless and redrawn, welded and redrawn coiled tubing which are made from corrosion-resistant austenitic, duplex, super duplex stainless steels and nickel alloy grades. The tubing is used as hydraulic control lines and chemical injection lines specially serving oil and gas, geothermal industry.

Important

Each one tubing coil is a completely continuous length without orbital welds.

Each one tubing coil is hydrostatic tested with a targeted pressure.

The test can be witnessed on site by the third party inspectors (SGS, BV, DNV).

Other tests are eddy current test, chemicals, flattening, flaring, tensile, yield, elongation, hardness for the material quality.

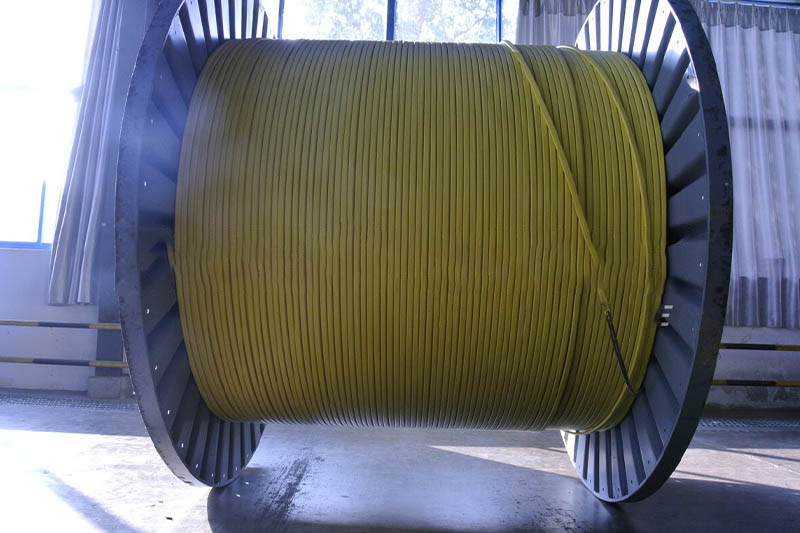

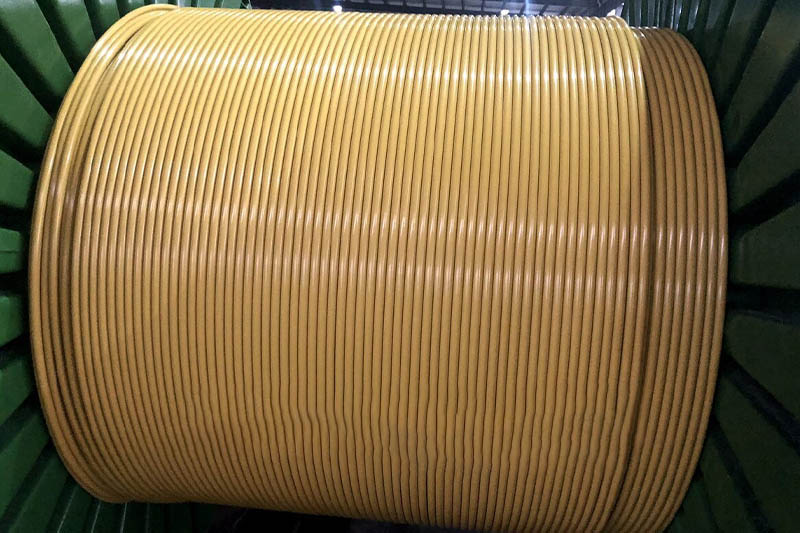

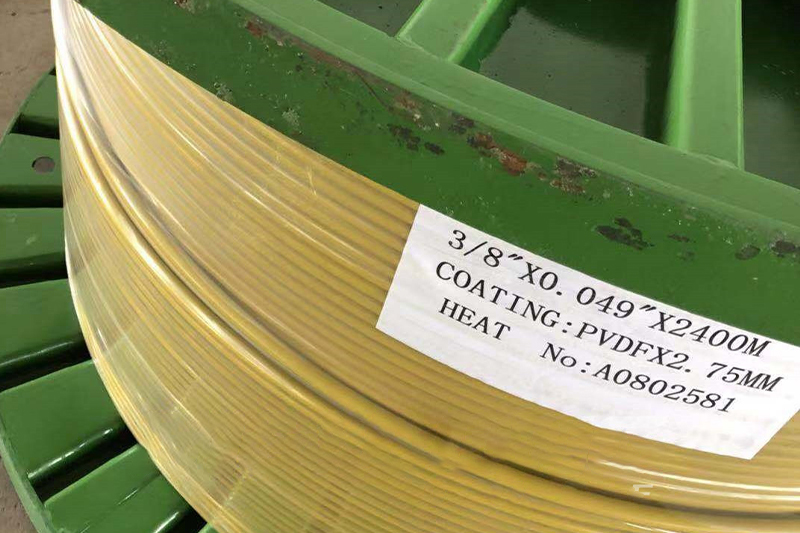

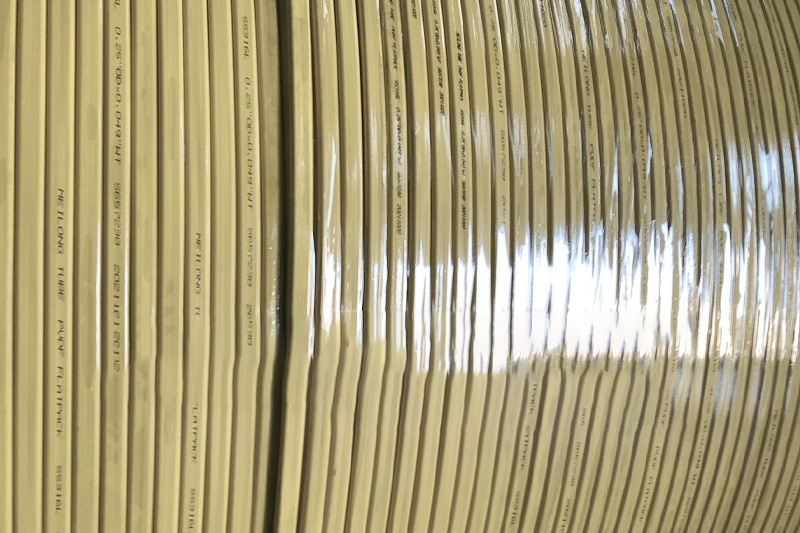

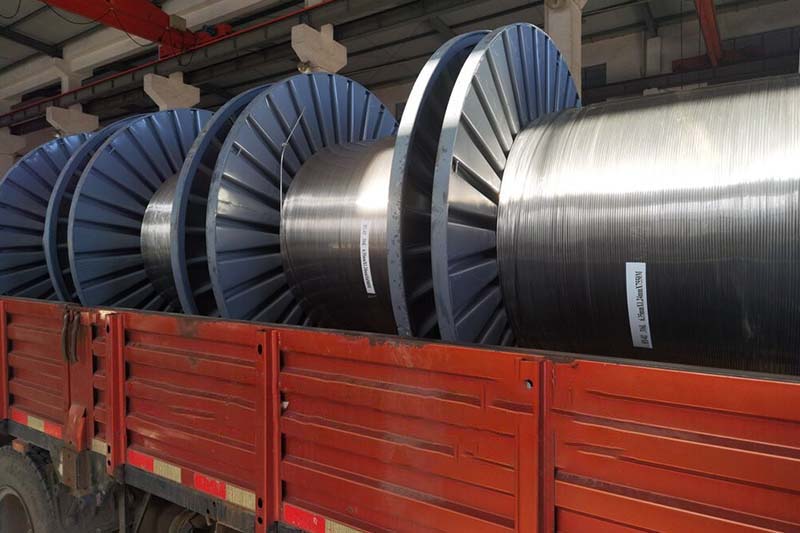

Product Display

Dimensional Tolerance

ASTM B730 / ASME SB730, Monel 400, UNS N04400
ASTM B751 / ASME SB751
Size OD Tolerance OD Tolerance WT
1/8’’<OD<5/8’’ (3.18<OD<15.88 mm) ±0.004’’ (±0.10 mm) ±12.5%
5/8’’≤OD≤1’’ (15.88≤OD≤25.4 mm) ±0.0075’’ (±0.19 mm) ±12.5%
Standard
Size OD Tolerance OD Tolerance WT
1/8’’<OD<5/8’’ (3.18<OD<15.88 mm) ±0.004’’ (±0.10 mm) ±10%
5/8’’≤OD≤1’’ (15.88≤OD≤25.4 mm) ±0.004’’ (±0.10 mm) ±8%
ASTM B165 / ASME SB165, Monel 400, UNS N04400
Size OD Tolerance OD Tolerance WT
1/8’’ ≤OD<3/16’’ (3.18≤OD<4.76 mm) +0.003’’ (+0.08 mm) / -0 ±10%
3/16’’≤OD<1/2’’ (15.88≤OD<12.7 mm) +0.004’’ (+0.10 mm) / -0 ±10%
1/2’’≤OD≤1’’ (12.7≤OD≤25.4 mm) +0.005’’ (+0.13 mm) / -0 ±10%
Standard
Size OD Tolerance OD Tolerance WT
1/8’’ ≤OD<3/16’’ (3.18≤OD<4.76 mm) +0.003’’ (+0.08 mm) / -0 ±10%
3/16’’≤OD<1/2’’ (15.88≤OD<12.7 mm) +0.004’’ (+0.10 mm) / -0 ±10%
1/2’’≤OD≤1’’ (12.7≤OD≤25.4 mm) +0.004’’ (+0.10 mm) / -0 ±8%
