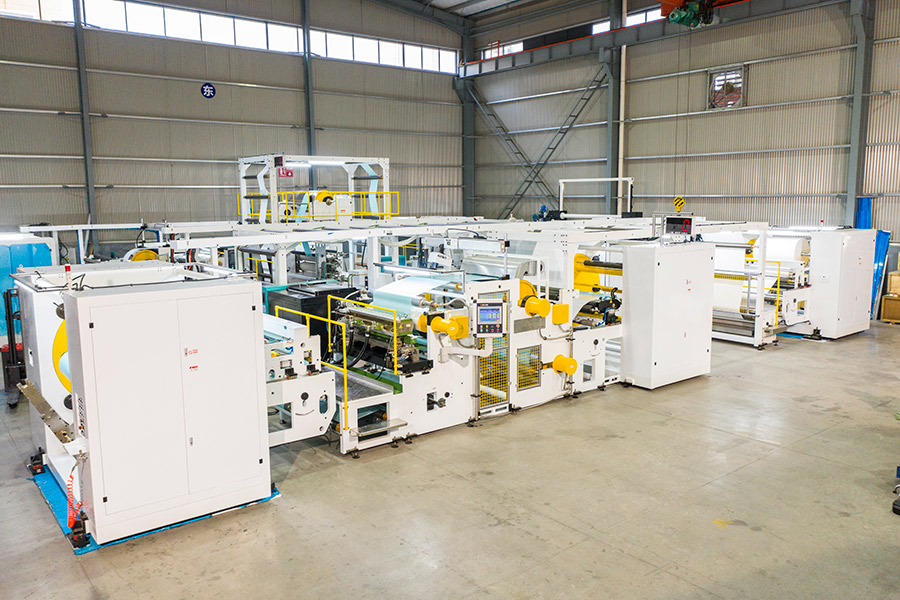

NTH1200 Hot Melt Adhesive Coating Machine（Fully-auto）
Machine Construction
♦ Turrets unwinding and rewinding units
♦ Laminating unit
♦ Coating system
♦ Driving system
♦ Auto-control system
♦ Pneumatic system
♦ Web guider
This machine is designed scientifically and logically for the convenience of maintenance and upgrade with excellent quality.
Main Machine Parts
This machine main machine part is constructed with 76mm wall panels & steel links and processed by CNC gantry milling machining center with fine appearance and high precision frame with strong strength.
Rollers are designed simple and convenient to clean and install
Load-bearing roller has one open mouth which can be lifted and installed through the crane more easily.
Turret Unwinding Unit
Features and Benefits:
1. Tension control of Unwinding:
- Siemens vector converter tension control system.
- Angle sensor detect tension (dancer roll/ diaphragm cylinder/ proportional valve), to adjust Siemens motor speed and realized high-precious close-loop control.
2. External aluminum alloy heating module design for coating die can prevent carbonation from local high temperature.
3. Individual temperature adjusting device on 6 different zones which enable partial adjustment and PID adjustment function.
4. Equipped with PT100 platinum temperature sensor of precision up to ± 1.0℃.
5. Installed with filter device which can improve the quality of coating.
6. Rail-mounted push device driven by pneumatic cylinder and pressure control valve is adopted the coating die, which is more steady, strong and convenient to adjust forward or backward and up or down.
Advantages
1.Equipped with advanced hardware, most of processing equiments from international top companies to highly control the manufaturing accuracy in each step
2.All core parts are manufactured independently by ourself
3.The most comprehensive Hot Melt Application system lab and R&D center in the industry of Asian-Pacific Region
4.European design and manufacturing standards up to European level
5.Cost-effecient solutions for high quality Hot Melt Adhesive application systems
6.Customize machines with any angles and design the machine according to the different applications
