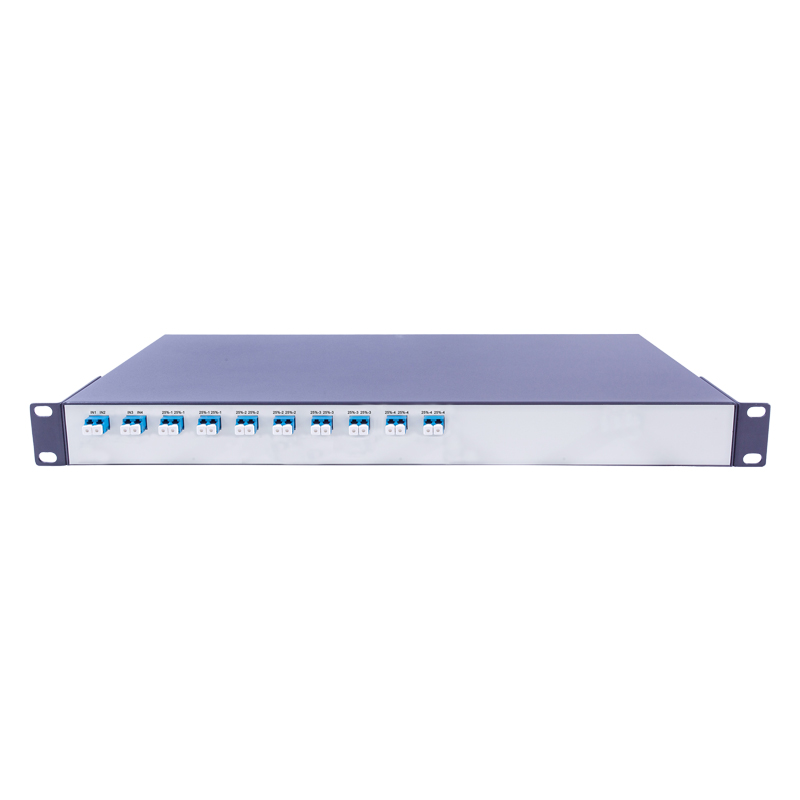

Passive Tap PLC Optical Splitter
Overviews
Features
- Low insertion loss and polarization-related losses
- High stability and reliability
- High channel count
- Wide operating wavelength range
- Wide operating temperature range
- Conforms to Telcordia GR-1209-CORE-2001.
- Conforms to Telcordia GR-1221-CORE-1999.
- RoHS-6 compliant (lead-free)
Specifications
|
Parameters |
1:N PLC Splitters |
2:N PLC Splitters |
||||||||||
| Port Configuration |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
2×2 |
2×4 |
2×8 |
2×16 |
2×32 |
2×64 |
| Max insertion loss(dB) |
4.0 |
7.2 |
10.4 |
13.6 |
16.8 |
20.5 |
4.5 |
7.6 |
11.1 |
14.3 |
17.6 |
21.3 |
| Homogeneity(dB) |
<0.6 |
<0.7 |
<0.8 |
<1.2 |
<1.5 |
<2.5 |
<1.0 |
<1.2 |
<1.5 |
<1.8 |
<2.0 |
<2.5 |
| PRL(dB) |
<0.2 |
<0.2 |
<0.3 |
<0.3 |
<0.3 |
<0.3 |
<0.3 |
<0.3 |
<0.4 |
<0.4 |
<0.4 |
<0.4 |
| WRL(dB) |
<0.3 |
<0.3 |
<0.3 |
<0.5 |
<0.8 |
<0.8 |
<0.4 |
<0.4 |
<0.6 |
<0.6 |
<0.8 |
<1.0 |
| TRL(dB) |
<0.5 |
|||||||||||
| Return Loss(dB) |
>55 |
|||||||||||
| Directionality(dB) |
>55 |
|||||||||||
| Operating Wavelength Range (nm) |
1260～1650 |
|||||||||||
| Working Temperature(°C) |
-40~+85 |
|||||||||||
| Storage Temperature(°C) |
-40 ~+85 |
|||||||||||
| Fiber Optic Interface Type |
LC/PC or customization |
|||||||||||
| Package Type |
ABS Box: (D)120mm×(W)80mm×(H)18mm card-in type chassis: 1U, (D)220mm×(W)442mm×(H)44mm Chassis: 1U, (D)220mm×(W)442mm×(H)44mm |
|||||||||||
