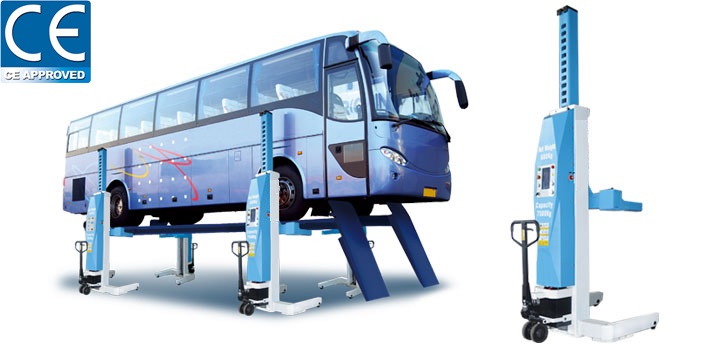

Premium Wireless Model
Specifications ( take 4 columns for example )
| Number of columns | 4 | Capacity per column | 7.5 ton |
| Total capacity | 30tons | Max. Lifting height | 1700 mm |
| Time of full rise | 90 sec | Battery capacity | 20 ups & downs (Full charge) |
| Weight | 700kgs per column | Column dimensions(mm) | 2300(H) × 1100(W) × 1300(L) |
| Output Voltage | 24v DC | Input Voltage for charger | 110V/220V AC |
Features
◆ ID Grouping — all columns are identical; columns with the same capacity can group freely as a set at any time by simple setting-ups, such as 2-, 4-, 6-, 8-, and up to 16-column set.
◆ 9” large color touch screen — facilitating convenient operation.
◆ Lift management function — facilitating direct work order management on the lift.
◆ Remote monitor function — monitoring use frequency as well as lifting time & weight each time, so the lift can give maintenance tips automatically and the users could carry out maintenance services on the lift timely.
◆ Self-diagnosis function — color screen showing the corresponding error code and detailed steps guiding users to fix the errors.
◆ Connected to internet via WIFI — facilitating users to log on the internet and search for needed information directly.
