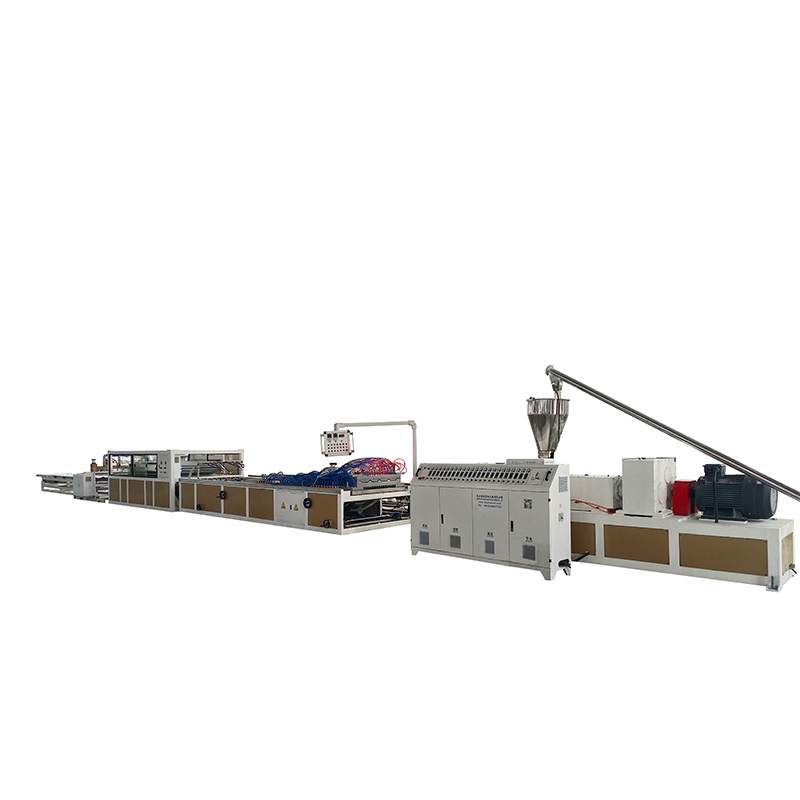

PVC Window & Door Plastic Profile Machine
Video
According to the size and cross-section of different profiles, we will choose different types of twin-screw extruders and molds, and configure the corresponding vacuum setting table, tractor, cutting machine, turning table and other auxiliary equipment.
This production line consists of the following six parts:
|
NO. |
Specification |
Quantity |
|
1 |
Twin-screw extruder (with Automatic loading system) |
1 set |
|
2 |
Mould |
1 set |
|
3 |
Calibrating and cooling device |
1 set |
|
4 |
Haul-off machine |
1 set |
|
5 |
Cutting machine |
1 set |
|
6 |
Stacker |
1 set |
Technical parameter:
|
Model |
Screw Diameter(mm) |
Speed (rpm) |
Main motor power(kw) |
Capacity (kgs/h) |
|
SJZ45 |
45/100 |
34.7 |
15 |
80 |
|
SJZ50 |
50/105 |
34.7 |
18.5 |
100 |
|
SJZ55 |
55/110 |
34.7 |
22 |
150 |
|
SJZ65 |
65/132 |
34.7 |
30/37 |
250 |
|
SJZ68 |
68/147 |
39.1 |
45 |
320 |
|
SJZ80 |
80/156 |
25 |
55 |
360 |
|
SJZ92 |
92/188 |
25 |
90 |
600 |
Details Images
1.PVC Window Door Plastic Profile Machine Double screw extruder
2.PVC Window Door Plastic Profile Machine Mould
3.PVC Window Door Plastic Profile Machine Calibrating and cooling device
4.PVC Window Door Plastic Profile Machinery Haul-off machine
5.PVC Window Door Plastic Profile Machinery Cutting machine
6.PVC Window Door Plastic Profile Machine Stacker
Final product:
After-sale service
FAQ
1.Are you manufacturer or trading company?
We are manufacturer.
2.W choose us?
We have 20 years experience for producing machine.We can arrange for you to visit our local customer’s factory.
3.Delivery time: 20~30 days.
4.Payment terms:
30% of total amount should be paid by T/T as down payment, the balance (70% of total amount) should be paid before delivery by T/T or irrevocable L/C（at sight).
