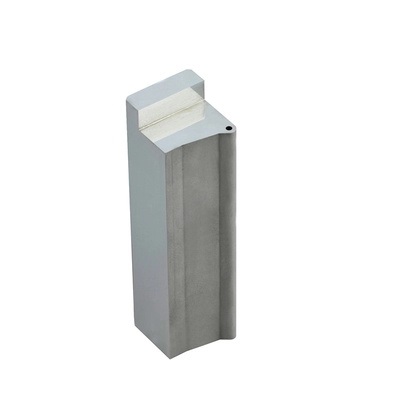

Rectangular Tungsten Carbide Punch Pins Non Standard Axiality Within 0.002mm
Rectangular Tungsten Carbide Punch Pins Non Standard Axiality Within 0.002mm
Description
| Material: | Brass Stavax,Tungsteen Steel Or Customized | Hardness: | HRC58-64, Or Customized |
|---|---|---|---|
| Tolerance: | ±0.002mm | Dimension: | Customized Size |
| Quality: | 100% Inspection | Surface Treatment: | Anodizing,or Customized |
| High Light: |
Rectangular Tungsten Carbide Punch, 0.002mm Tungsten Carbide Punch, Non Standard tungsten carbide pins |
||
Tungsten Carbide Non Standard Rectangular Punch Pins Axiality Within 0.002mm
1. Material
Carbide / ASP23 / M2 / SKH51/ D2 / SKD11
2. Hardness
60-62 HRC or depends on processing materials
Product Features:
· produces all types of Punches as per DIN, IFI, ISI & JIS Standards to suit any of your production needs.
· Punches also manufactured to customers specifications.
· PVD & CVD coatings available. (Titanium Nitriding)
· ”Super Punch” for high volume production applications for Alloy & Stainless Steel.
· Exceptional surface finishes for reduced friction resulting in extended tool life.
· Range of steels available to customers specifactions Consistencies of size & finish.
Material Available:
| Stainless Steel | SS201,SS301, SS303, SS304, SS316, SS416,17-4pH,440C,2CR13,3CR13, etc. |
| Steel | SKD11/SKD61/SKD51 mild steel, Carbon steel,12L14, 12L15,4140, 4340, Q235, Q345B, 45# |
| Brass | HPb63, HPb62, HPb61, HPb59, H59, H58,H68, H80, H90 etc. |
| Copper | C11000,C12000,C12000 C36000 etc. |
| Aluminum | AL2024-T4, AL6061, Al6063, AL6082, AL7075, AL5052, AL6082-T6AL5754-H111, etc. |
| Die steel | S136,S136H,P20,P20H,718H,NAK80,H13,8407,Cr12MOV,Cr12,2344. |
Business Range
BG is professional manufactory of precision mould parts,machine blades, special cutting tools, plastic moulds, auto mould parts, medical mould parts, packaging mould parts, cosmetic mould parts, connector mould parts, Packing Industry, Tobacco Industry, Food Industry, Plastic recycling Industry etc. BG has 13 years’ experience,With strong research and production capability, the products can meet the standards of superb quality and diversification.
Manufacturing & inspection capacity in steel, stainless and copper materials for precision mould parts,Cavity pins, core pins,Punches,Ejector sleeve,CNC machining parts etc…
Services:CNC machining,CNC Milling,Sodick EDM,Sodick Wire-cut,OD grinding,ID grinding,Surface grinding,Thread grinding,Polishing etc..
Industries Served: Medical/Packaging/Aerospace/Electronic
If you have some questions about plastic moulds, or want to know more about auto mould parts, medical mould parts, packaging mould parts, cosmetic mould parts, connector mould parts etc. Welcome to contact us!
Equipment&Inspection List
| Machine Name | Machine Type | Machine Size(mm) | Qty | Accurcy |
| Table Lathe | She Hong YB15*YB25 | ∮0.3～∮25 | 5 | ±0.02 |
| Centerless grinder | Hartmann | ∮0.30*∮70.0 | 3 | ±0.001 |
| High Precision Centerless Grinder | Taiwan Jainnher JHC-12S | ∮0.30*∮70.0 | 4 | ±0.001 |
| Plane Grinder | Dawn/Joen Lih | 150～350 | 8 | ±0.001 |
| Grinding of outernal diameter | Taiwan Zhengjia | ∮0.60～∮70.0 | 8 | ±0.001 |
| Grinding of internal diameter | Taiwan Zhengjia | ∮0.2*∮55.0 | 4 | ±0.002 |
| CNC | TAKISAWA | 400*300*270 | 6 | ±0.005 |
| EDM | Sodick AD32LS | 300*200*200 | 4 | ±0.002 |
| W-EDM | Seibu/Sodick | 0～500 | 4 | ±0.002 |
| Testing equipment | Type&Name | inspection Size | Qty | Ispection Accuracy |
| Projector | Marriott PJ-H300 | X:0～95 Y:0～35 | 3 | ±0.001 |
| Projector | Nikon V-12B | 150*200 | 2 | ±0.001 |
| High Gauge | Japan Mitutoyo | 0～50mm | 4 | ±0.001 |
| Roundness Test Instrument | Tokyo Precision 43C-S | 0～200mm | 1 | 0.2μm |
| NIKON Altimeter | MFC-101 | 0～50mm | 2 | ±0.001 |
| Altimeter | Dantsin V5 | 0～400mm | 1 | ±0.0015 |
| Rockwell Hardness Tester | Gaofeng HR-150A | 1 | ±1.5C | |
| Plug gauge | Japan Mitutoyo | 2 | ±0.001 | |
| Caliper | Japan Mitutoyo | 0～125mm | 10 | ±0.001 |
