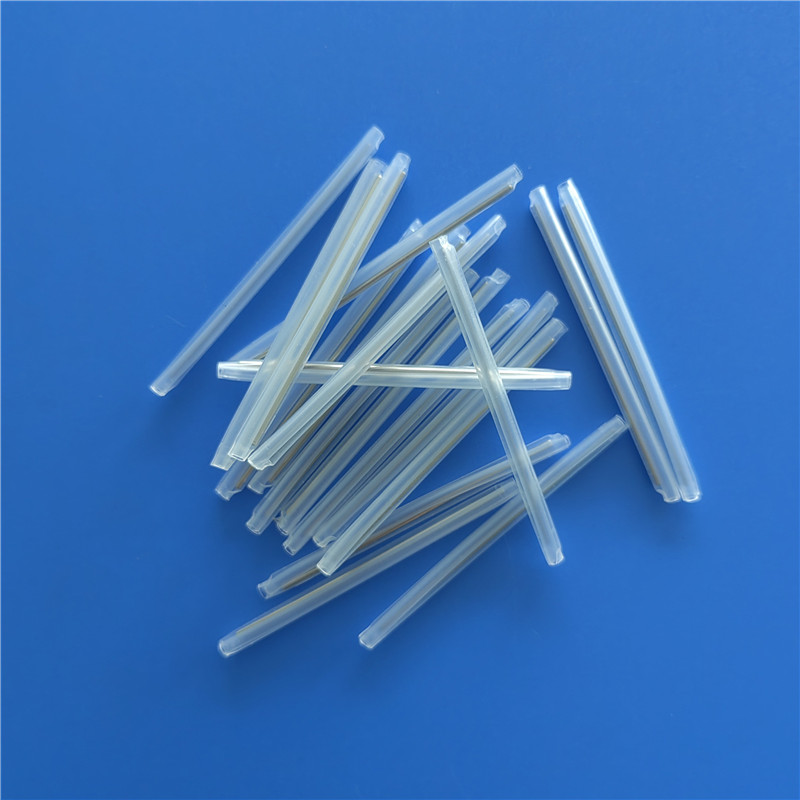

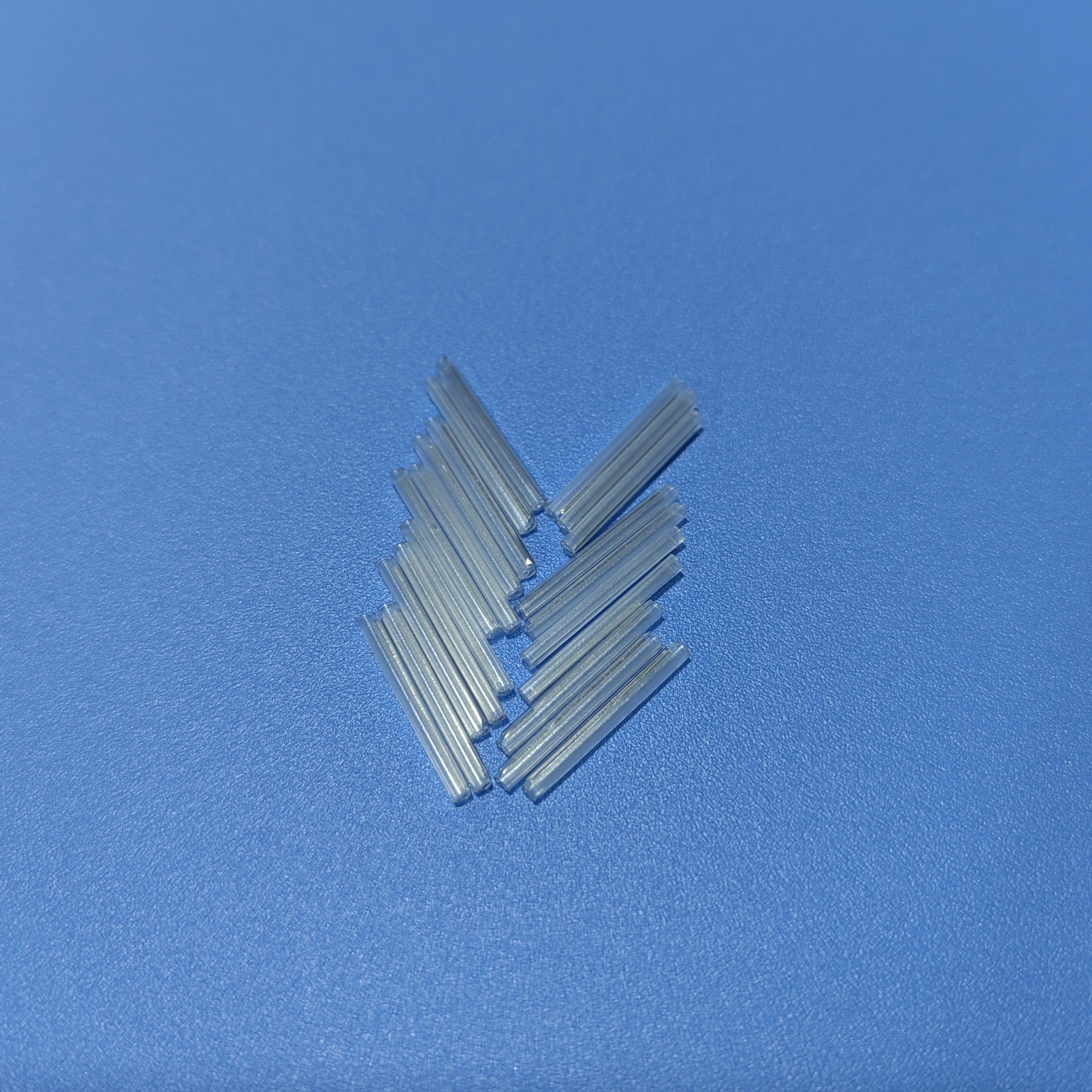

Ribbon Fiber Optic Fusion Splicing Protection Sleeve with one Glass Rod in 12 Core
Detail Information
| Name | Ribbon Fiber Optic Fusion Splicing Protection Sleeve with one Glass Rod in 12 Core |
| Use | FTTx&FTTH |
| Material | EVA |
| Length | 40mm |
| Color | Clear |
| Glass Rod Number | 1 |
| Use For | Fiber Distribution Box |
Description
Ribbon series sleeves are applied in bar fiber-optic cables of the RIBBON type. They enable to secure up to twelve fibers in one sleeve. Excellent climatic and thermal properties make it ideal for use in closed as well as open spaces. The main goals during design phase were: full protection of the fiber optic splices and quickness of assembly.
Initial shrinking of the sleeve was taken into account during the production process to reduce the gap between the tubes. This protects the internal tube and ceramic strengthening element from falling out. The sleeves we produce offer full protections the fiber optic splices. They do not cause additional insert losses, and they offer protection against mechanical damage, pollution and weather conditions.
Features
1. Consist of a Rod of rainforcing the splice, hot fusion tubing and cross linked Polyolefin. To rebuild the coating of fiber to provide mechnical strength at the fusion joint area and keep the optical transmission properties.
2. Moisture resistant for environmental protection clear sleeve make it easy to detect splice before shrinkage.
3. Easily use and avoid any damages to the optical fiber during installation.
4. Sealing structure provides good performance to the splicing in the environment with temperature and humidity.
5. Bellcore GR-1380 Compliant
6. RoHS & REACH Compliant
