China Samarium Cobalt Magnet High Temperature Rare Earth Magnets Manufacturer and Supplier

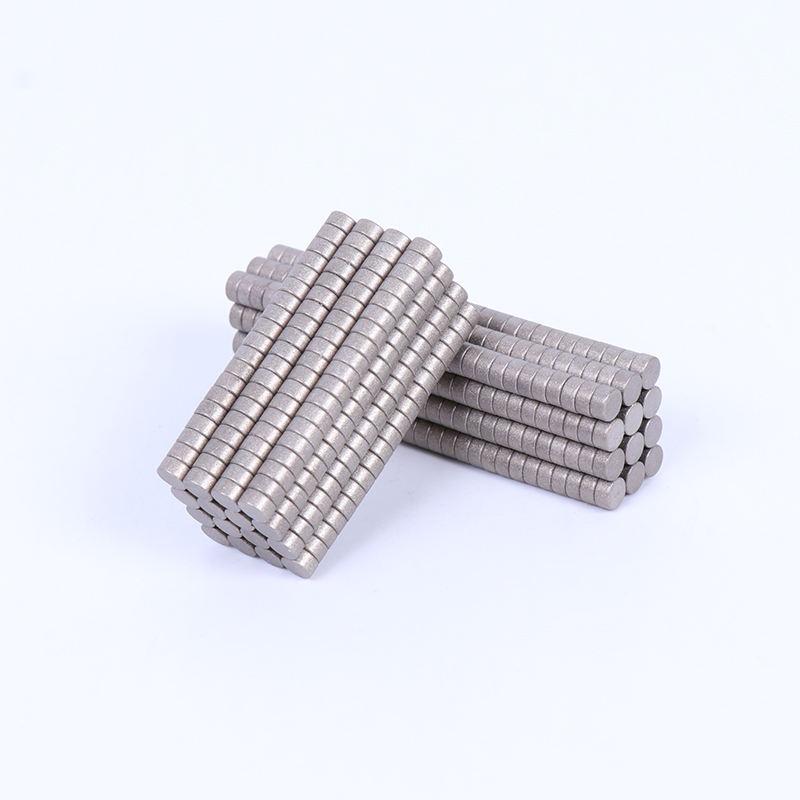

Samarium Cobalt Magnet High Temperature Rare Earth Magnets

Short Description:

The main raw materials of SmCo permanent magnets are samarium and cobalt rare earth elements. SmCo magnet is the alloy magnet which produced through Power Metallurgy technology that is made into a blank by Melting, Milling, Compression Molding, Sintering, and Precision Machining.

SmCo Magnet as the second generation of rare earth permanent magnets, not only has high BH (14-32Mgoe) and reliable Hcj, but also shows good temperature characteristics in rare earth permanent magnets. SmCo Magnet is only the permanent magnets with high BH max, high Hcj and high Br. Meanwhile, it has a very low temperature coefficient (-0.030%/°C) and can be used at both high and low temperatures. The maximum operating temperature is 350°C, and the negative temperature is about minus 200°C.

SmCo Magnet has a strong corrosion resistance and oxidation resistance. It can be normally used at room temperature or high temperature without coating. If the product is used in severe acid corrosive wet environment, we can provide a variety of coating to meet customer’s requirements.

Our SmCo permanent magnet is widely used in motors, instruments, sensors, detectors, various magnetic transmissions and other high-tech fields.

Send email to us Download as PDF

Product Detail

Product Tags

Product-Details1

Grade	Br		Hcb	Hcj	(BH)max		Tc	Tw	α（Br）	α(HcJ)
	Typical Value	Min Value	Min Value	Min Value	Typical Value	Min Value	Tc	Max Value	Typical Value	Typical Value
	[T]	[T]	[kA/m]	[kA/m]	[kJ/m3]		[℃]	[℃]	[%/℃]	[%/℃]
	[KGs]	[KGs]	[KOe]	[KOe]	[MGOe]		[℃]	[℃]	[%/℃]	[%/℃]
SmCo24H	0.99	0.96	692	1990	183	175	820	350	-0.03	-0.2
SmCo24H	9.9	9.6	8.7	25	23	22	820	350	-0.03	-0.2
SmCo24	0.99	0.96	692	1433	183	175	820	300	-0.03	-0.2
SmCo24	9.9	9.6	8.7	18	23	22	820	300	-0.03	-0.2
SmCo26H	1.04	1.02	750	1990	199	191	820	350	-0.03	-0.2
SmCo26H	10.4	10.2	9.4	25	25	24	820	350	-0.03	-0.2
SmCo26	1.04	1.02	750	1433	199	191	820	300	-0.03	-0.2
SmCo26	10.4	10.2	9.4	18	25	24	820	300	-0.03	-0.2
SmCo26M	1.04	1.02	676	796-1273	199	191	820	300	-0.03	-0.2
SmCo26M	10.4	10.2	8.5	10-16	25	24	820	300	-0.03	-0.2
SmCo26L	1.04	1.02	413	438-796	199	191	820	250	-0.03	-0.2
SmCo26L	10.4	10.2	5.2	5.5-10	25	24	820	250	-0.03	-0.2
SmCo28H	1.07	1.04	756	1990	215	207	820	350	-0.03	-0.2
SmCo28H	10.7	10.4	9.5	25	27	26	820	350	-0.03	-0.2
SmCo28	1.07	1.04	756	1433	215	207	820	300	-0.03	-0.2
SmCo28	10.7	10.4	9.5	18	27	26	820	300	-0.03	-0.2
SmCo28M	1.07	1.04	676	796-1273	215	207	820	300	-0.03	-0.2
SmCo28M	10.7	10.4	8.5	10-16	27	26	820	300	-0.03	-0.2
SmCo28L	1.07	1.04	413	438-796	215	207	820	250	-0.03	-0.2
SmCo28L	10.7	10.4	5.2	5.5-10	27	26	820	250	-0.03	-0.2
SmCo30H	1.1	1.08	788	1990	239	222	820	350	-0.03	-0.2
SmCo30H	11.0	10.8	9.9	25	30	28	820	350	-0.03	-0.2
SmCo30	1.1	1.08	788	1433	239	222	820	300	-0.03	-0.2
SmCo30	11.0	10.8	9.9	18	30	28	820	300	-0.03	-0.2
SmCo30M	1.1	1.08	676	796-1273	239	222	820	300	-0.03	-0.2
SmCo30M	11.0	10.8	8.5	10-16	30	28	820	300	-0.03	-0.2
SmCo30L	1.1	1.08	413	438-796	239	222	820	250	-0.03	-0.2
SmCo30L	11.0	10.8	5.2	5.5-10	30	28	820	250	-0.03	-0.2
SmCo32	1.12	1.1	796	1433	255	230	820	300	-0.03	-0.2
SmCo32	11.2	11.0	10	18	32	29	820	300	-0.03	-0.2
SmCo32M	1.12	1.1	676	796-1273	255	230	820	300	-0.03	-0.2
SmCo32M	11.2	11.0	8.5	10-16	32	29	820	300	-0.03	-0.2
SmCo32L	1.12	1.1	413	438-796	255	230	820	250	-0.03	-0.2
SmCo32L	11.2	11.0	5.2	5.5-10	32	29	820	250	-0.03	-0.2
