Solar Frame
| Product Name | Solar Frame |
| Raw Material | Aluminum alloy such as 6000 series,7000 series etc. |
| Surface Treatment | mill-finished, anodized, electrophoresis, powder coating, polishing , sand blasting , and fluorocarbon painting. |
| Stylish Designs | per drawing, re-design as requested or market needs. |
| Credible Quality | ISO9001,Assessment Report provided by Bureau Veritas Certification |
| Use | doors and windows, kitchen, equipment frame, industry, curtain wall, solar, decorations, transportation tools, and other constructions or building area. |
| Favorable Price | FOB FUZHOU price: USD $ 2300-3000/Ton |
| Delivery Detail | 15-20 days after received payment |

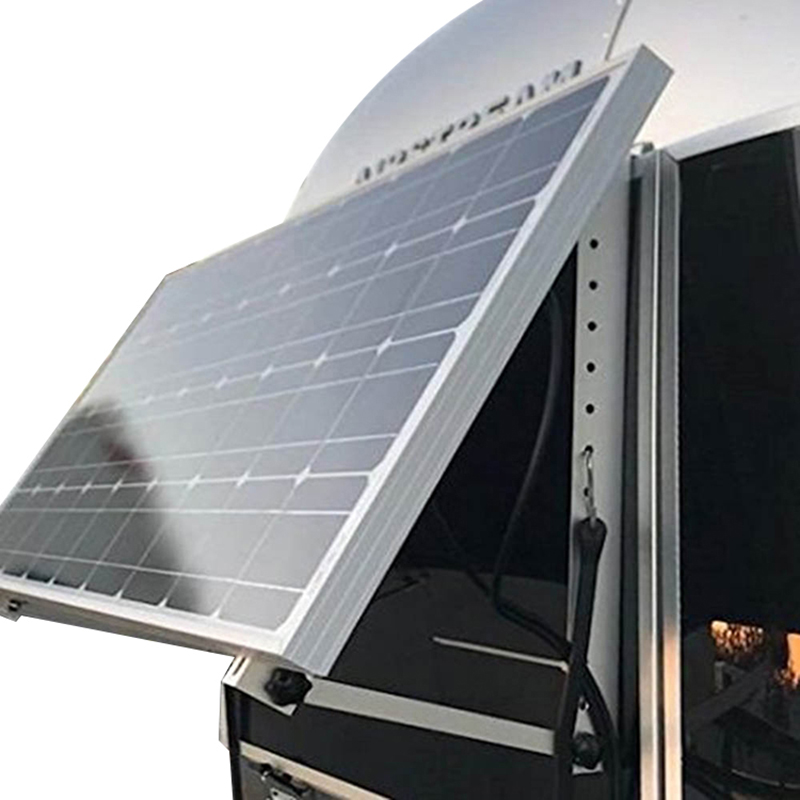

This is our PV frame system, which is an aluminium frame system to protect solar cell panel.Various surface finished not only ensure the intensity of frame system, but also strengthen the functions and visual effect.Unique interface makes the installation easy and convenient.A number of frame specifications can meet different integration by customer.
Normally , we use 6063 or 6060 ,T5 or T6 for the frames. What kinds of surface treatment we can make? Anodized ,powder coating, electrophoresis and Sandblasting.we design drainage holes and rigid construction to prevent the frame from deforming and breaking.
Material:Aluminium Alloy 6063/6060 T5/T6
To fix and seal the solar cell panel
Prolong the panel’s working life
Specially designed drainage holes and rigid construction
Easy to transport and Installation.
Quality Assurance:10years
Multiple dimensions and specifications
1650x992mm/1635x990mm
1580x808mm/1250x545mm
824x545mm/620x286mm
Or customized dimensions
| Material | Aluminum 6005, 6060, 6061, 6063, 6082, 7003. |
| Temp | T4 T5 T6 |
| Surface treatment | Mill Finish,Anodized,Eletropharesis,Powder Coated, Wooden Finish,etc |
| Color | Silver, Black, Red, Blue, etc |
| Length | Custom Length |

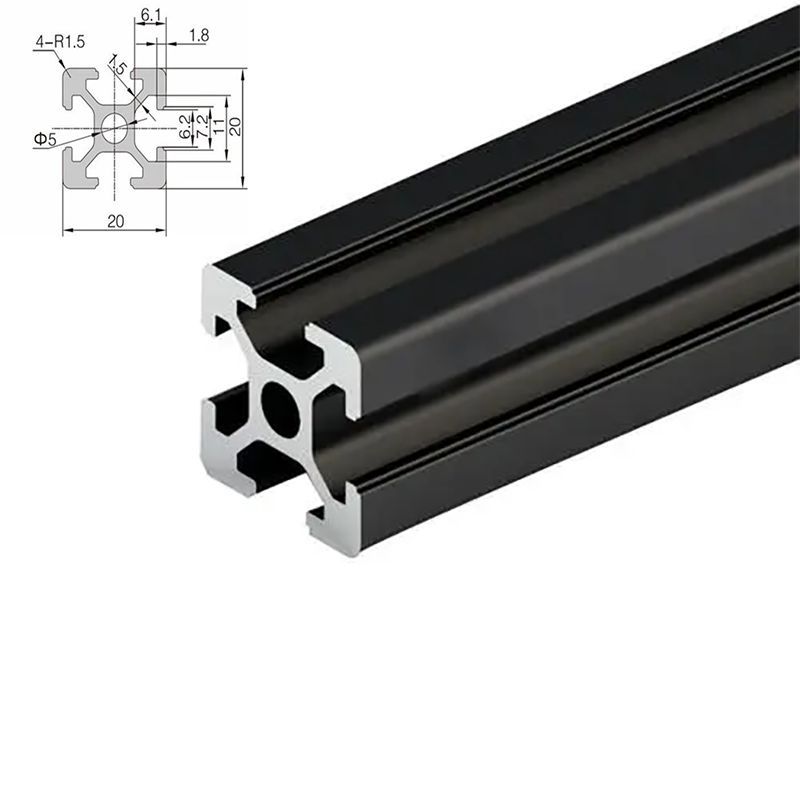

| Shape | Round,Square,T-slot,or as per the drawings and samples |
| Fabrication | cutting,drilling,punching,bending,etc |
| Wall thickness | ≥0.5mm |
| Production processing | Design-make mould-casting for aluminium ingot-extrusion-treatment for hardness resistance-aluminium finish machining-surface treatment-QC-packing-Products |
| Delivery time | 15-20 days after order |
| Payment terms | 30% T/T in advance, the balance is paid before shipment |
| Package | inner plastic paper interleaving each piece profile,outer fixed by plywood, or as per your requirements |
| Warranty | above10 years |
