Solid Cemented Carbide Rod Blanks
Solid Cemented Carbide Rod Blanks
Cemented Carbide Rods are widely used to product high-quality solid carbide tools such as milling cutters(especially end mills), drills and reamers.
Our Carbide Rods offer wide range of grade, dimensions, features and capabilities. This kind of Tungsten Carbide Rods can apply from machining carbon steel through to composite materials, non-ferrous metals and on to the demanding requirements of heat-resistant alloys.
In addition, we can also provide you with rapid supply of the ideal product for your individual application.
Features of Solid Cemented Carbide Rod Blanks High hardness, good strengthExcellent performance and good wear / corrosion resistanceSolid Carbide Rod Blanks, Ground Carbide Rods, Ground Carbide Rods with Chamfer and Customized are available.OEM/ODM, customization is availableManufacturer supply, factory direct supply, nice priceISO 9001 Certification
Recommend Grade of Cemented Carbide Rods
|
MY Grade |
JK10 |
MU06 |
MU25 |
MU30 |
MU35 |
MU40 |
|
|
Grace |
YG10 |
YG6X |
YG9X |
YG10X |
YG10X |
YG12X |
|
|
ISO Grace |
K30 |
K10 |
K05-K10 |
K30-K40 |
K30-K40 |
K40 |
|
|
Co |
% |
10 |
6.3 |
9 |
10 |
10 |
12 |
|
Grain Size |
μm |
0.8-1.0 |
0.6 |
0.3 |
0.7 |
0.6 |
0.4 |
|
Density |
G/m³ |
14.1 |
14.85 |
14.45 |
14.4 |
14.35 |
14.05 |
|
Hardness |
HRA |
93.5 |
93.8 |
93.5 |
91.8 |
92.2 |
92.6 |
|
HV30 |
1900 |
1950 |
1910 |
1580 |
1640 |
1710 |
|
|
T.R.S. |
Mpa |
3200 |
3600 |
3800 |
4000 |
4000 |
4200 |
Other grades please click here and we can also offered by customs specific requirements.

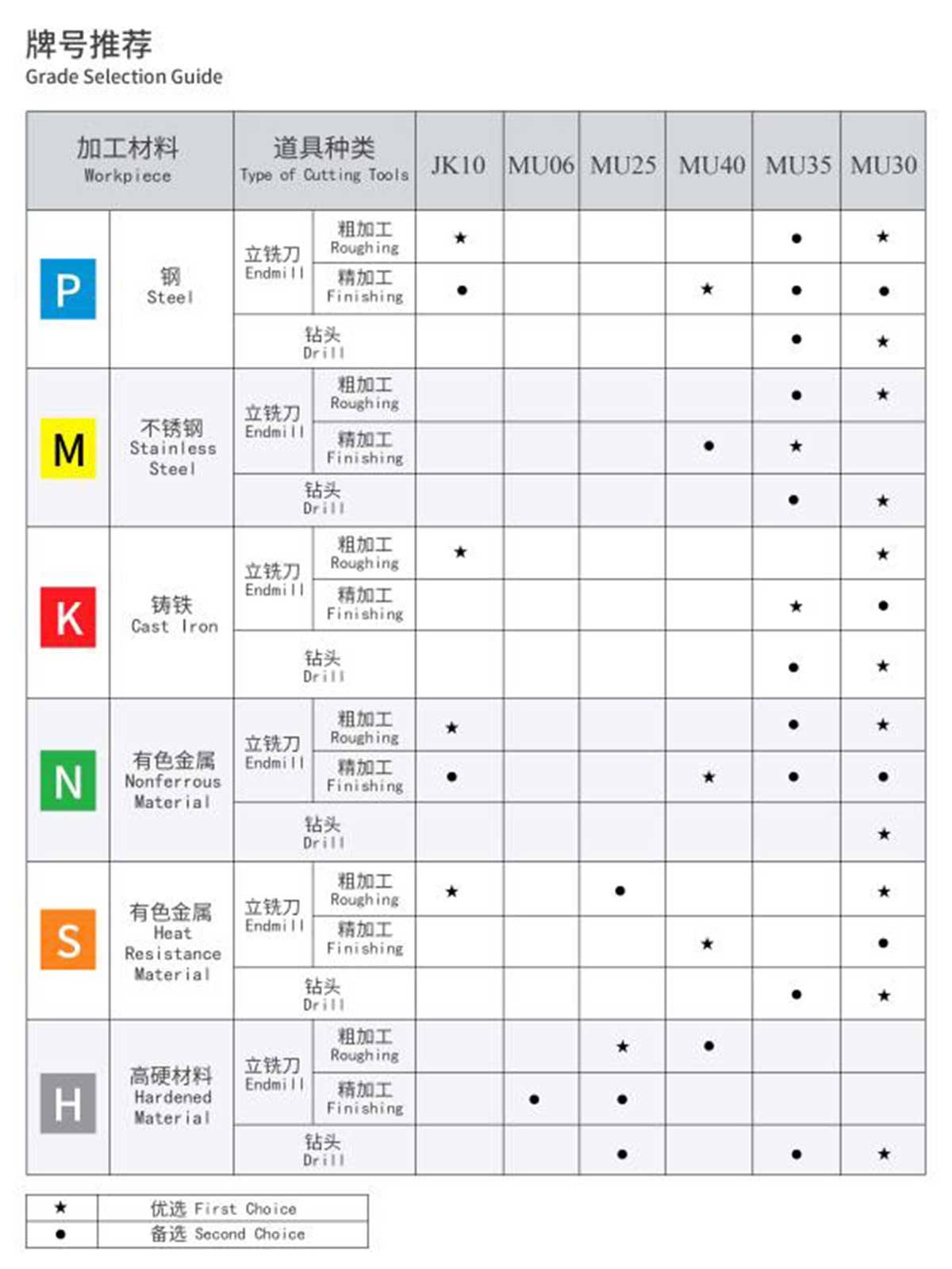

Grade Selection Guide of Cemented Carbide Rods
Dimension of Cemented Carbide Rods
Standard length is 310mm and 330mm. Inch standard and customized are available
All in mm
|
Diameter |
Length |
||
|
D |
Tol |
L |
Tol |
|
2 |
+0.15, +0.40 |
310/330 |
0, +5.0 |
|
3 |
+0.30, +0.50 |
310/330 |
0, +5.0 |
|
4 |
+0.30, +0.50 |
310/330 |
0, +5.0 |
|
5 |
+0.30, +0.50 |
310/330 |
0, +5.0 |
|
6 |
+0.30, +0.50 |
310/330 |
0, +5.0 |
|
7 |
+0.30, +0.60 |
310/330 |
0, +5.0 |
|
8 |
+0.30, +0.60 |
310/330 |
0, +5.0 |
|
9 |
+0.30, +0.60 |
310/330 |
0, +5.0 |
|
10 |
+0.30, +0.60 |
310/330 |
0, +5.0 |
|
11 |
+0.30, +0.60 |
310/330 |
0, +5.0 |
|
12 |
+0.30, +0.60 |
310/330 |
0, +5.0 |
|
13 |
+0.30, +0.70 |
310/330 |
0, +5.0 |
|
14 |
+0.30, +0.70 |
310/330 |
0, +5.0 |
|
15 |
+0.30, +0.70 |
310/330 |
0, +5.0 |
|
16 |
+0.30, +0.70 |
310/330 |
0, +5.0 |
|
17 |
+0.30, +0.80 |
310/330 |
0, +5.0 |
|
18 |
+0.30, +0.80 |
310/330 |
0, +5.0 |
|
19 |
+0.30, +0.80 |
310/330 |
0, +5.0 |
|
20 |
+0.30, +0.80 |
310/330 |
0, +5.0 |
|
21 |
+0.30, +0.80 |
310/330 |
0, +5.0 |
|
22 |
+0.30, +0.80 |
310/330 |
0, +5.0 |
|
23 |
+0.30, +0.80 |
310/330 |
0, +5.0 |
|
24 |
+0.30, +0.80 |
310/330 |
0, +5.0 |
|
25 |
+0.30, +0.80 |
310/330 |
0, +5.0 |
|
26 |
+0.30, +0.80 |
310/330 |
0, +5.0 |
|
27 |
+0.30, +0.80 |
310/330 |
0, +5.0 |
|
28 |
+0.30, +0.80 |
310/330 |
0, +5.0 |
|
29 |
+0.30, +0.80 |
310/330 |
0, +5.0 |
|
30 |
+0.30, +0.80 |
310/330 |
0, +5.0 |
|
31 |
+0.30, +0.80 |
310/330 |
0, +5.0 |
|
32 |
+0.30, +0.80 |
310/330 |
0, +5.0 |
|
33 |
+0.30, +0.80 |
310/330 |
0, +5.0 |
|
34 |
+0.30, +0.80 |
310/330 |
0, +5.0 |
|
35 |
+0.30, +0.80 |
310/330 |
0, +5.0 |
|
36 |
+0.30, +0.80 |
310/330 |
0, +5.0 |
|
37 |
+0.30, +0.80 |
310/330 |
0, +5.0 |
|
38 |
+0.30, +0.80 |
310/330 |
0, +5.0 |
|
39 |
+0.30, +0.80 |
310/330 |
0, +5.0 |
|
40 |
+0.30, +0.80 |
310/330 |
0, +5.0 |
All in mm
