The steel spiral return idler are used as support for the return side of belt. Used where sticky, corrosive, or abrasive materials are present. Not only cleans itself, but keeps the belt cleans and double spiral configuration minimizes belt training problems such as misalignment.

SPECIFICATION:
For Belt Width: 400-2800mm
Surface Treatment: Electrostatic Powder Coating, Galvanization.
Standard: DIN, CEMA, JIS, AS, SANS-SABS, GOST, AFNOR etc.

RAW MATERIAL OF ROLLERS:
1. Pipe:
High precision longitudinal seam-welded steel pipe, materials S235JR(EN 10025-2),St37-2 (DIN 17100)
Remove internal and external welding bars and uniform wall thickness ensure the roller good dynamic balance
Good out of roundness of pipe ensure the roller have small T.I.R
The pipe is cut and machined using automatic CNC machines, that guarantee the tolerances precision
Roller surface treatment is electrostatic powder coating, thickness of coating approx. 80-120 μ.

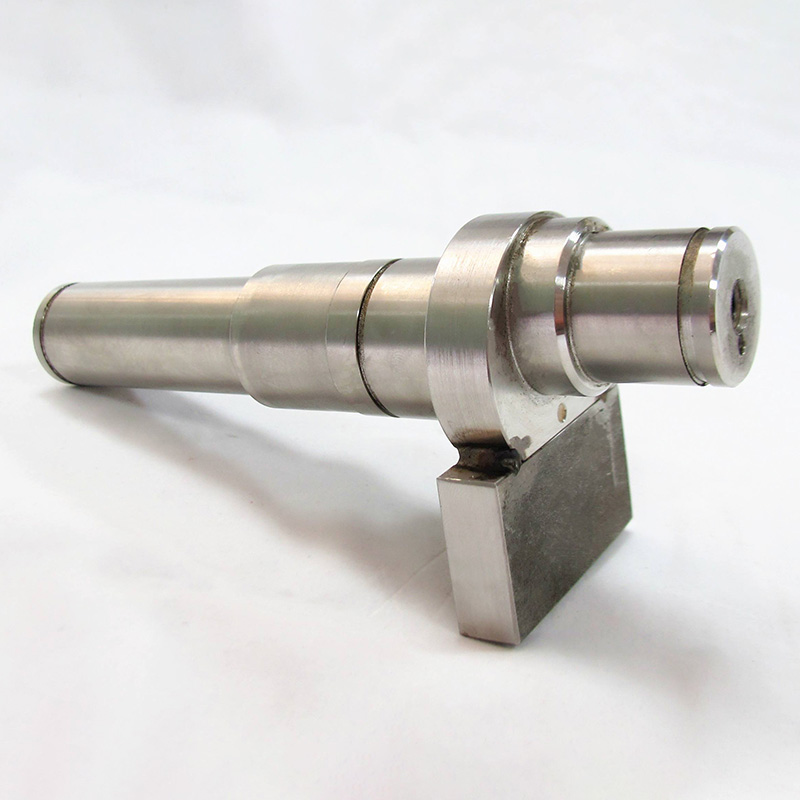

2. Shaft:
Cold-drawn round steel bar, materials S235JR(EN 10025-2),St37-2 (DIN 17100)
High precision diameter tolerance, seat IT6 acc. to EN ISO 286-1, perfect match with bearings.
Cut and machined by automatic numerically controlled machines
Precise positioning of circlip groove ensure roller have very small axial movement.
Galvanized shaft are available.

3. Bearing:
Deep-groove ball bearings, tolerance class P5 (DIN 620)
C4 radial clearance provides for optimum roller operation
Bearings are filled with lithium base grease throughout its service life
Nylon cage advantage: self-lubricating, abrasion resistance and low heat by friction, low noise, long service life
A variety of brands are available (HRB,ZWZ,LYC,SKF,FAG,TIMKEN,NSK,NTN etc.)

4. Bearing House:
Made of high quality cold-rolled steel plate, materials DC01(EN 10130), St12(DIN 1623)
High precision, smooth and no burr, bearing fit tolerance standard ISO M7
Perfect concentricity ensure the roller low T.I.R

5. Seal System:
The system comprises of inner seal, labyrinth seal, galvanized metal dust cover, protective cover
Inner lip seal prevent the pipe internal rusting entering the bearing, material is Nylon.
Labyrinth seal have two parts, female labyrinth seal and male labyrinth seal, both material are Nylon or POM,especially effective against the intrusion of outside contaminants
Labyrinth seal filled with lithium lubricating grease, maintenance-free throughout its service life
The labyrinth system can be fitted with a rubber friction ring to prevent the intrusion of water

7. Lubricating Grease:
#2 Long lasting lubricating grease, working condition -20°c to 120°c

8. Surface Treatment:
Electrostatic Powder Coating

APPLICATION:
Mining
Steel mill
Cement plant
Power plant
Chemical Plant
Sea Port
Storage etc.

CERTIFICATE:
ISO9001, SGS, CE
