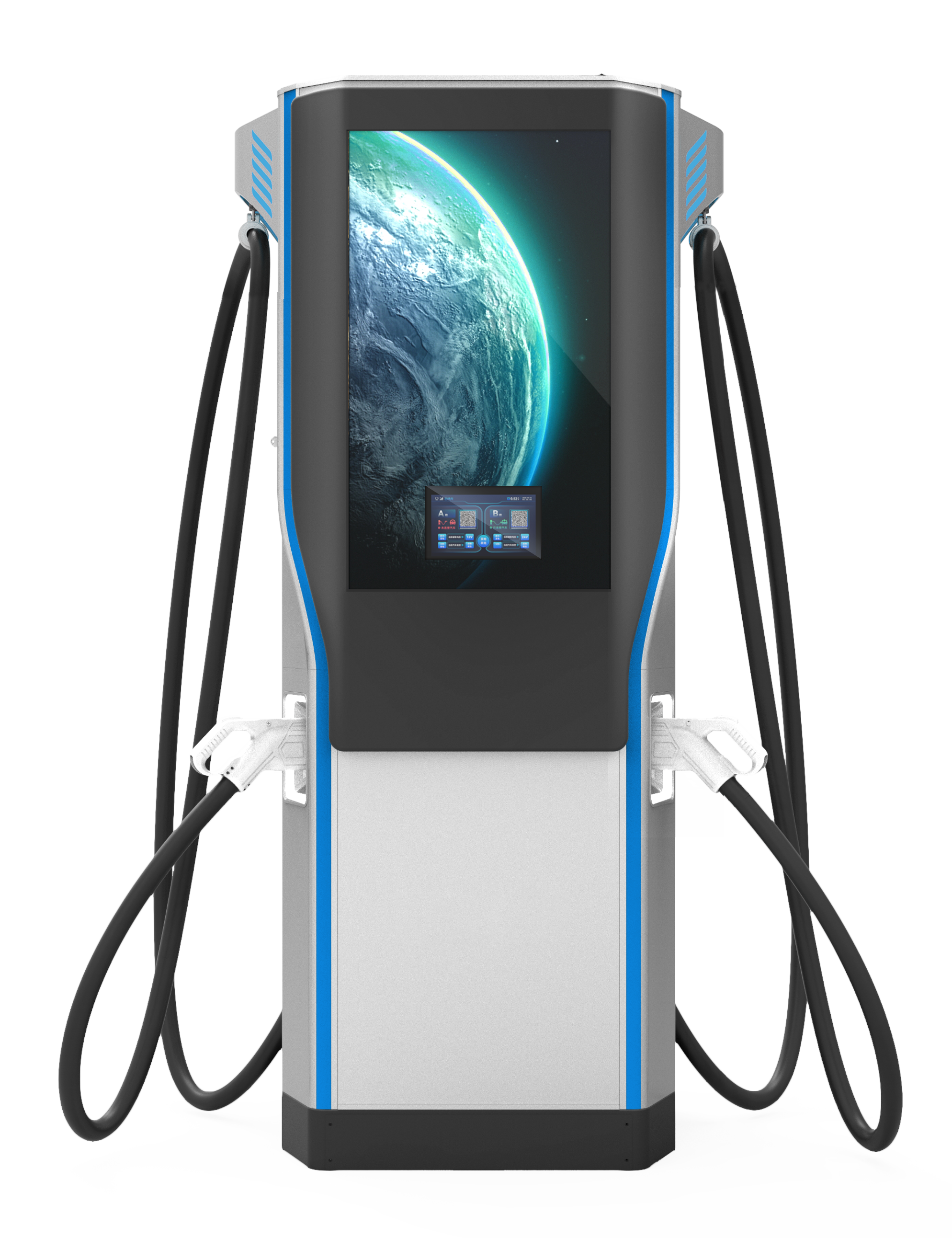

The Ampax Commercial DC Fast Charging Station

Short Description:

The Ampax can be equipped with 1 or 2 charging guns, with an output power from 60kW to 240kW, which can charge most EVs with 80% of the mileage within 30 minutes. The Ampax is compatible with all types of Electric Vehicles currently on the market and complies with SAE J1772/CCS Type 1 charging plug. Relying on the advantages of technology R & D, the Ampax series uses “Integrated Electric Vehicle Charging Power Controller”. Different from the traditional assembled charging station, the charging station production and assembly process is simple, reducing the equipment failure rate, easy to operate and maintain and lower cost.


Product Detail

Product Tags

Power Specification

  • Input Voltage Rating

    480VAC±10%, 50/60Hz

  • Power Wiring

    3P+N+PE

  • DC Voltage Output

    150~1000VDC

  • DC Power Output Rating

    60~240kW

  • Constant Power Range

    300~1000VDC

  • Power Factor

    >0.98(Load≥50%)

  • The Maximum Output Current

    250A

  • Charging Connector

    CCS 1+CCS1/CCS2+CCS2/CCS1+CCS2

  • Charging Cable Length

    5 meters; Customizable with a maximum length of 7.5 meters

  • THD-I

    ≤5%(Rating Voltage Input,Load≥50%)

  • Peak Efficiency

    ≥96%

  • Voltage Stabilized Accuracy

    ≤±0.5%

  • Current Stabilized Accuracy

    ≤±1%

  • Output Voltage Error

    ±0.5%

  • Ripple Factor

    ≤±0.5%(RMS)

  • Output Current Error

    ≤±1%(when output current≥30A); ≤±0.3%(when output current≤30A);

  • Electric Energy Measurement Method

    Measuring DC output electric energy

  • Connector Mechanical Operating Life

    ≤10000 times, without load
