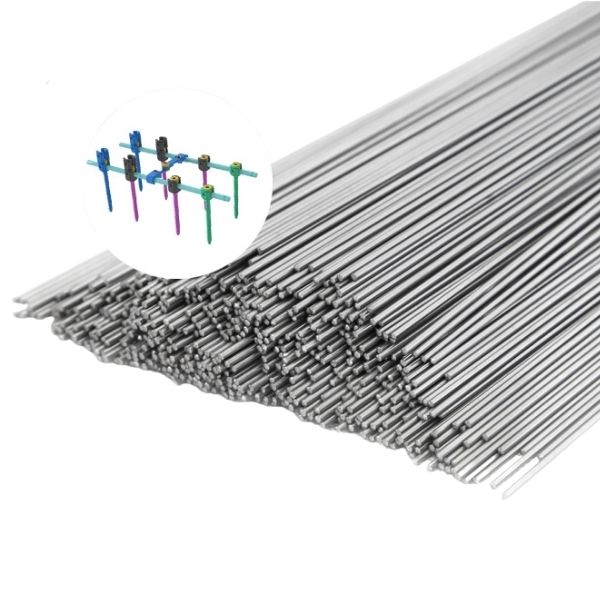

Titanium bar for spine screws
Specifications
|
Chemical compositions |
||||||||
|
Grade |
Ti |
Al |
V |
Fe, max |
C, max |
N, max |
H, max |
O, max |
|
Ti-6Al-4V ELI |
Bal |
5.5~6.5 |
3.5~4.5 |
0.25 |
0.08 |
0.05 |
0.012 |
0.13 |
|
Grade 5 (Ti-6Al-4V) |
Bal |
5.5~6.75 |
3.5~4.5 |
0.3 |
0.08 |
0.05 |
0.015 |
0.2 |
|
Mechanical properties |
|||||
|
Grade |
Condition |
Tensile Strength (Rm/Mpa) ≥ |
Yield Strength (Rp0.2/Mpa) ≥ |
Elongation (A%) ≥ |
Reduction of Area (Z%) ≥ |
|
Ti-6Al-4V ELI |
M |
860 |
795 |
10 |
25 |
|
Grade 5 (Ti-6Al-4V) |
M |
860 |
780 |
10 |
/ |
produced Ti-6Al-4V ELI titanium bars’ microstructure can reach within A3 and Tensile Strength can reach more than 1100Mpa. Titanium bar for spine screws is used for spinal implants, the quality is very important.
How control the quality of medical titanium bars?
1. Chemical compositions is determined by the used titanium sponge grade, uses O grade undersized grain;
2. Microstructure is determined by the melting times, melts 3 times by imported Germany ALD oven;
3. Mechanical properties is determined by the rolling and annealing processes, controls every production step;
4. Inner defects and surface crack is determined by the quality check, uses the Eddy current flaw detector and Ultrasonic flaw detector to test every bar;
5. Surface of titanium bars is checked by the ODE optical surface detector combine the manual detection;
6. Tolerance of titanium bars is checked by the Infra-ray diameter gauge.
All these processes lead to the final quality of the medical titanium bars and ensured the quality of products.
