China TUV Approved Single Core Solar DC Wire Cable Manufacturer and Supplier

TUV Approved Single Core Solar DC Wire Cable

Short Description:

When you select solar cables for your photovoltaic system, it is important to calculate the right cross section with the lowest power losses.Jiukai cable have 15 years of production experience in power cable. Our cables have TÜV certification & TÜV 2PFG 1169/08.2007 PVI-F along with the highest manufacturing standards.

Send email to us Download as PDF

Product Detail

Product Tags

Product Introduction

The solar cable is used in photovoltaic power generation and solar system, interconnects solar panels and electrical components in the photovoltaic system. The size from 1.5 mm² to 16 mm², suitable for outdoor extreme environments, UV, ozone, hydrolysis resistant.

● Halogen Free, Flame-resistant.

● 15 Years of Production Experience In Power Cable.

● TUV Approved & TUV 2PFG 1169/08.2007 PV1-F.

● Double Insulation Suitable for outdoor harsh environments.

● Stable connection & Reducing maintenance cost.

● Free Sample is available.

Specification Of Solar Cable

Pv1-f single solar cable 1X mm²*
	Conductor	Tinned fine Re copper strands,according to IEC60228.Class5
	Insulation	Polyolefin Copolymer electron-beam cross-linked
	Sheath Jacket	Polyolefin Copolymer electron-beam cross-linked
	Sheath color	Red/Black
	Nominal Voltage	Uo/U=600V/1000VAC,1000/1800VDC
	Test voltage	6500V, 50Hz, 5Min
	Temperature Rating	-40^oC-125^oC, More Than 25 Years (TUV)
	Certification	TUV 2PFG 1169/08.2007 PVI-F

Low Losses In Every Part Of Your Solar System: The solar off grid or grid-tied system must be carefully designed with a target overall efficiency around 95%. To reach this target, we should not underestimate how important the selection of cables is.

Product Display

Product Parameters

Construction (Nxmm²⁾	Finished Cable OD(mm)	Max DC Resistance at20 C (Q/KM)	Current Carrying Capacity(A)	Approx. Weight (KG/KM)
1×1.5	4.8	13.7	30	36.38
1×2.5	5.2	8.21	41	47.07
1 x4.0	5.5	5.09	55	60.08
*1 x4.0 (slim)	4.65	5.09	55	50.16
1 x6.0	6.2	3.39	70	81.81
*1 x6.0 (slim)	5.35	3.39	70	70.21
1×10.0	7.3	1.95	98	125.39
1×16.0	8.5	1 .24	132	190.21

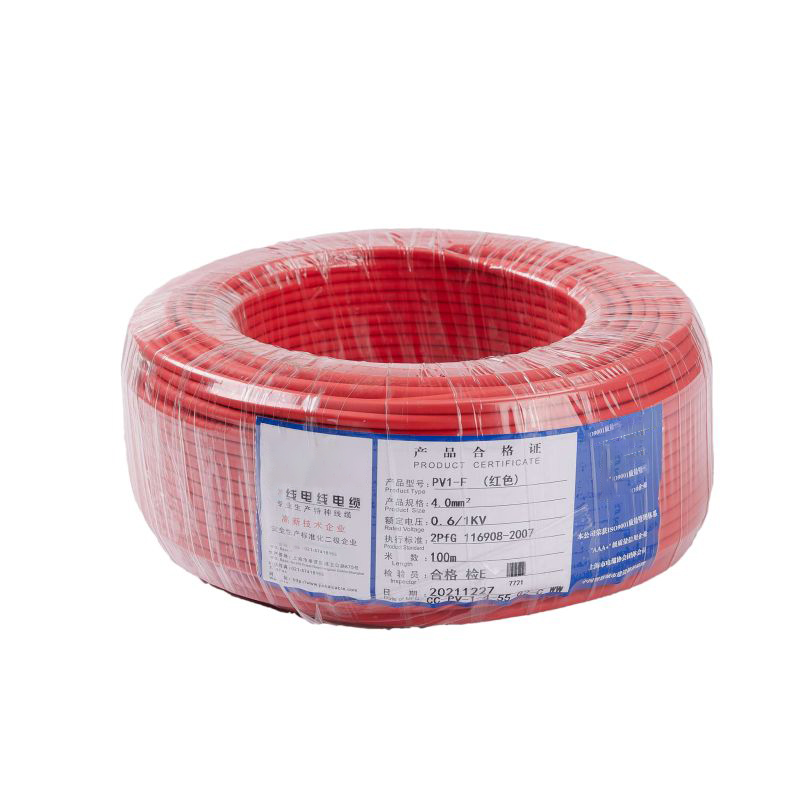

Product Packaging

Why Choose Jiukai Solar Cable?

1. Quality: We have a closed-loop quality management system which was covered raw materials, production, testing, and stock. All quality records of our products can be traced.

2. Lead Time: Customized goods can be completed within 15 working days, and Inventory can be shipped immediately.

3. OEM&ODM: Our R&D team can help with product development & print & packaging designs. The technical staffs have more than 10 years R&D experience.

4. Excelleent Service: We provide to our clients excellent sevice of Pre-sales and After-sales. Any requests would be quickly responded at first time.
