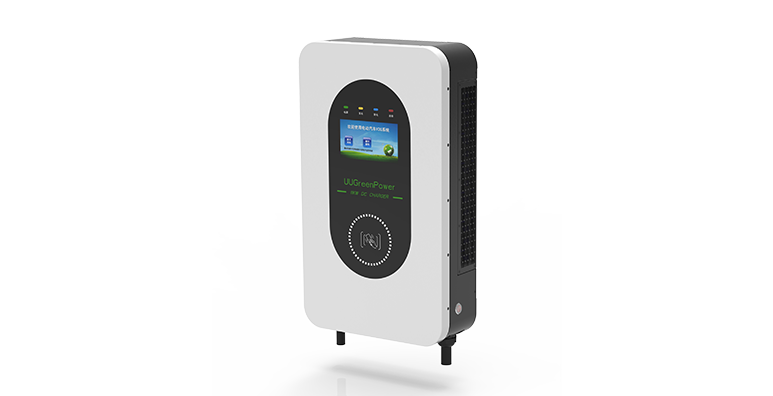

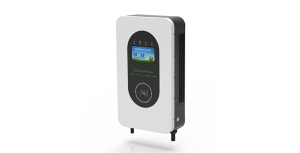

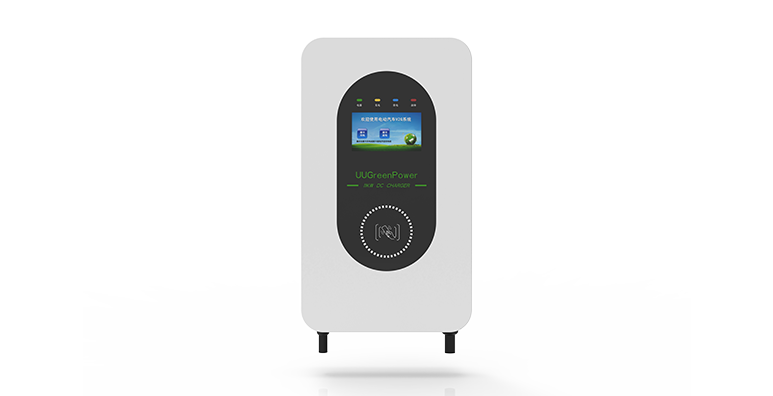

UBC100011-T V2G charger
Main Features
Bidirectional charging and discharging
It can participate in the peak regulation of the power grid, restrain the load fluctuation, and realize the orderly charging and efficient management of the power grid
01
High applicability
national standard, European standard and American standard complied
02
High protection
IP65 protection level, endure to harsh environments
03
Low noise
the working noise is less than 55dB
04
Technical Parameters
| DC side energy | Bi-directional |
| Rated output power | 11kW |
| Constant power voltage range | 300~1000V |
| DC Voltage range | 150~1000V |
| DC Current range | -36.7~38.6A |
| Over voltage protection | Support |
| Under voltage alarm | Support |
| Short-circuit protection | Support |
| Voltage accuracy | ≤±0.5% |
| Current accuracy | ≤±1% |
| Start output overshoot | ≤5% |
| Voltage ripple | ≤1% (peak -to-peak) |
| Current ripple | ≤1A (peak-to-peak) |
| Efficiency | ≥95% |
