XK-18/23/25S workshop industrial evaporative air cooler is the most popular industrial air cooler. We designed it with different powers 1.1kw, 1.3kw, 1.5kw to meet different demand. And there are up, down, side air discharge to be conveniently installed on wall, roof and other places.Applicable to cool a 60-80m2 plant in humid area and a 100-150m2 plant in dry area.

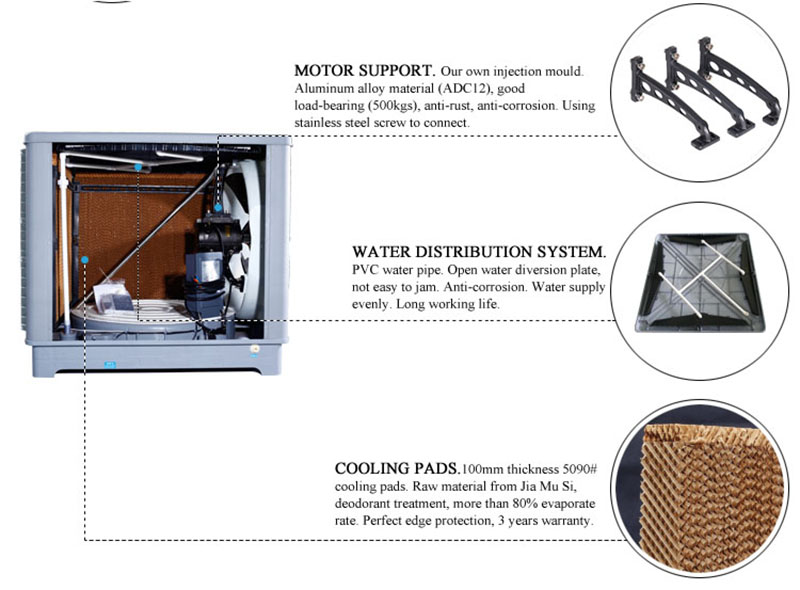

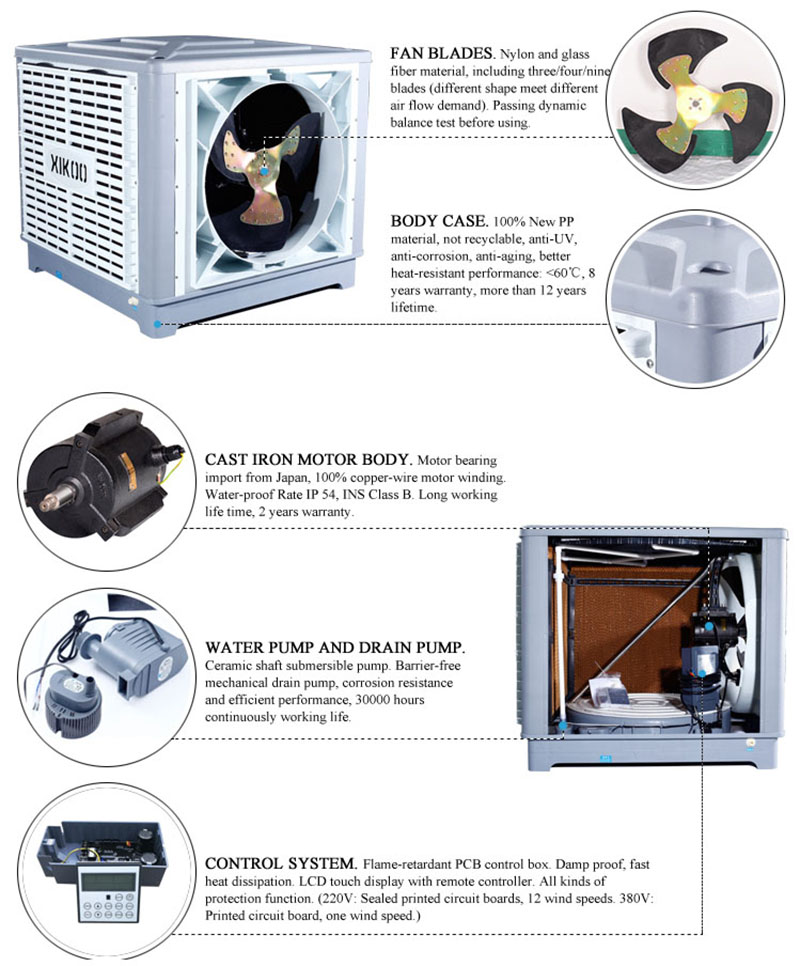

XK-18/23/25S model industrial air cooler equipped with industrial quality parts, including complete New PP material body, anti-UV, anti-aging, long 15years lifetime. 100% copper-wire motor, water proof rate Ip54. Nylon&glass fiber and metal fan, passed dynamic balance test before using. Corrosion resistance and high efficiency water pump, 13000 hours continuous working life time. 10cm thickness cooling pad, more than 80% evaporative rate.Glue sealed water proof circuit board have Over load protection, over currency protection, water shortage protection and full-automatic drainage function. LCD control panel with 12 different speeds.The water of the water tank can be sterilized by UV-lamp device(optional)
PRODUCT PARAMETERS |
||||||||
Model |
Airflow |
Voltage |
Power |
Wind Pressure |
N.W. |
Applicable Area |
Air Delivery (pipeline) |
Air Outlet |
XK-18S/down |
18000m3/h |
380V/220V |
1.1Kw |
180Pa |
68Kgs |
100-150m2 |
20-25m |
670*670mm |
XK-18S/side |
18000m3/h |
380V/220V |
1.1Kw |
180Pa |
70Kgs |
100-150m2 |
20-25m |
690*690mm |
XK-18S/up |
18000m3/h |
380V/220V |
1.1Kw |
180Pa |
70Kgs |
100-150m2 |
20-25m |
670*670mm |
XK-23S/down |
23000m3/h |
380V/220V |
1.3Kw |
200Pa |
68Kgs |
100-150m2 |
20-25m |
670*670mm |
XK-23S/side |
23000m3/h |
380V/220V |
1.3Kw |
200Pa |
70Kgs |
100-150m2 |
20-25m |
690*690mm |
XK-23S/up |
23000m3/h |
380V/220V |
1.3Kw |
200Pa |
70Kgs |
100-150m2 |
20-25m |
670*670mm |
XK-25S/down |
25000m3/h |
380V/220V |
1.5Kw |
250Pa |
68Kgs |
100-150m2 |
25-30m |
670*670mm |
XK-25S/side |
25000m3/h |
380V/220V |
1.5Kw |
250Pa |
70Kgs |
100-150m2 |
25-30m |
690*690mm |
XK-25S/up |
25000m3/h |
380V/220V |
1.5Kw |
250Pa |
70Kgs |
100-150m2 |
25-30m |
670*670mm |
Package: plastic film+pallet+carton
Application:
XK-18/23/25S workshop industrial evaporative air cooler has the cooling, humidification , purification , energy saving an other functions,it is very widely used for workshop, farm , warehouse, greenhouse, station, market and other places.
Lingluo focus on air cooler development and manufacture more than 13years, we always put products quality and customer service in the first place, we have strict standard from material choice, parts test, production technology , package and other all process. Hope every customer get the satisfactory Lingluo air cooler. We will follow all the shipment to ensure customers get the goods, and we have after-sale return to our customers, try to solve your questions after-sale, hope our products bring good user experience.
